The ProSoft MVI56-HART is a high-performance HART (Highway Addressable Remote Transducer) multi-drop master communication module designed for the Rockwell Automation ControlLogix platform. This single-slot, in-rack solution provides seamless integration between ControlLogix processors and HART-enabled field devices such as pressure, temperature, level, and flow transmitters.
The module features four independent HART master channels, each supporting up to 15 devices in multi-drop mode, enabling communication with up to 60 HART field instruments from a single module. It operates as a HART Master, generating the Bell 202 FSK (Frequency Shift Keying) signal overlaid on the 4-20 mA analog signal for two-way digital communication.
Item No :
MVI56-HARTOrder(MOQ) :
1Payment :
EXWProduct Origin :
USAShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
1kgProducts Description

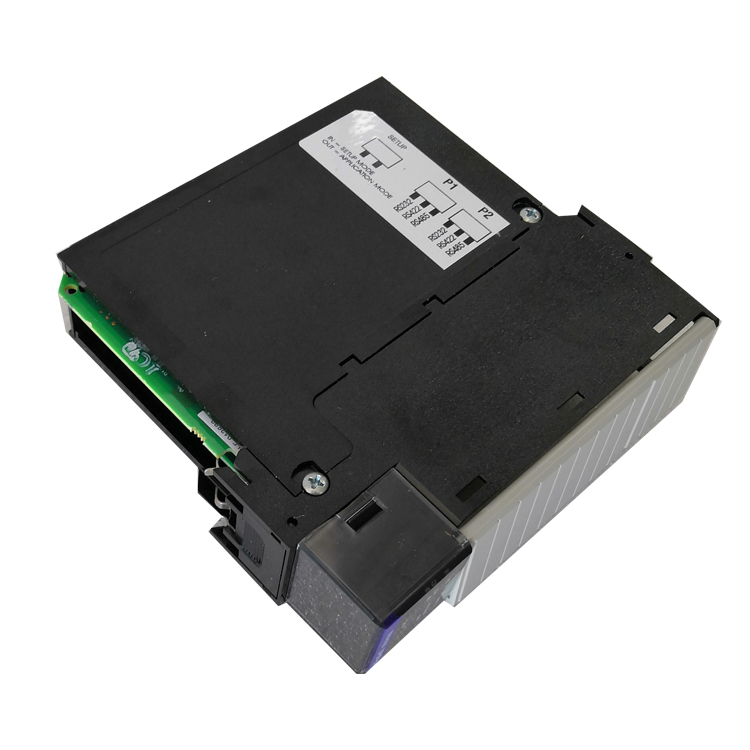

ProSoft MVI56-HART HART Multi-drop Master Communication Module
4-Channel HART Master Interface for ControlLogix
| Model Number | MVI56-HART |
| Place of Origin | USA |
| Dimension/Weight | 1 kg |
| Condition | new and original |
| Warranty | 1 year |
| Shipping term |
DHL Fedex TNT EMS UPS |
| Payment | TT / Western Union |
| Delivery Time | 3-5 days |
| Service |
24 Hours Online Service |
4 Independent HART Master Channels: Each channel can be independently configured, supporting up to 15 devices per channel for a total of up to 60 HART field instruments
Multi-drop and Point-to-Point Support: Supports both point-to-point (slave address 0) and multi-drop (slave addresses 1-15) communication modes
99 Configurable Commands per Port: Supports Universal, Common Practice, and Device Specific HART commands for comprehensive device access
Auto-Polling Function: Automatically detects and polls devices on each channel, storing data in the module's internal database for easy setup and fast installation
Burst Communication Mode: Enables 3-4 data updates per second for high-speed data acquisition from selected devices
Dual Master Support: Each channel supports both primary and secondary masters (e.g., PC, handheld configuration tools, or DCS), offering flexible data access
Direct ControlLogix Integration: Communicates via the ControlLogix backplane with 500-byte input image and 496-byte output image for fast data throughput
Internal Database: 5,000 16-bit registers (5,000 words) for storing and transferring data between the module and the processor
RSLogix 5000/Studio 5000 Compatible: Configuration and monitoring are performed using RSLogix 5000/Studio 5000 software with user-defined data objects
Industrial-Grade Reliability: Built for demanding environments with 30g operational shock tolerance and wide operating temperature range
| Category | Specification |
|---|---|
| Manufacturer | ProSoft Technology / Rockwell Automation |
| Model Number | MVI56-HART |
| Product Type | HART Master Multi-drop Network Interface Module |
| Platform | Rockwell Automation ControlLogix (1756 chassis) |
| Slot Requirement | 1 single slot |
| Rack Type | Local or Remote |
| Parameter | Detail |
|---|---|
| HART Channels | 4 Independent HART Master Ports |
| Protocol | HART (Bell 202 FSK) at 1200 baud |
| Devices per Port | Up to 15 (total up to 60 devices) |
| Universal & Common Practice Commands per Port | 99 |
| Supported Command Types | Universal (00-03, 06-09, 11-22), Common Practice (33-83, 105-110), Device Specific |
| Supported Modes | Point-to-Point (address 0) and Multi-drop (addresses 1-15) |
| Burst Mode | 3-4 data updates per second |
| Master Support | Primary and Secondary Master per channel |
| Parameter | Detail |
|---|---|
| Backplane Current (5V DC) | 800 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Shock (Operational) | 30 g |
| Weight | Approx. 0.3-0.8 kg (0.66-1.76 lbs) |
| Protection Rating | IP20 |
| Certifications | CE, UL |
| Parameter | Detail |
|---|---|
| Input Image Size | 500 bytes |
| Output Image Size | 496 bytes |
| Typical Update Rate | 1 to 10 ms |
| Internal Database | 5,000 16-bit registers |
The MVI56-HART module is ideal for industrial applications requiring access to HART device data beyond the standard 4-20 mA analog signal:
| Industry | Application |
|---|---|
| Chemical & Refining | Process monitoring and control with HART pressure, temperature, and flow transmitters |
| Oil & Gas | Gas and liquid distribution systems; remote offshore monitoring stations |
| Water/Wastewater | Pump station monitoring and data acquisition |
| Pharmaceutical | Batch process control with HART devices |
| Power Generation | Boiler and turbine instrumentation monitoring |
Supported HART Devices Include:
Pressure Transmitters
Temperature Transmitters
Flow Meters
Level Transmitters
Actuators and Positioners
The ProSoft PLX32-EIP-PND is a stand-alone DIN-rail mounted gateway that provides bi-directional data transfers between EtherNet/IP and PROFINET networks.
The ProSoft 5201-MNET-MCM is a Modbus TCP/IP to Modbus Master/Slave Gateway from the ProLinx family, designed to seamlessly connect Ethernet-based Modbus TCP/IP networks with legacy Modbus serial devices.

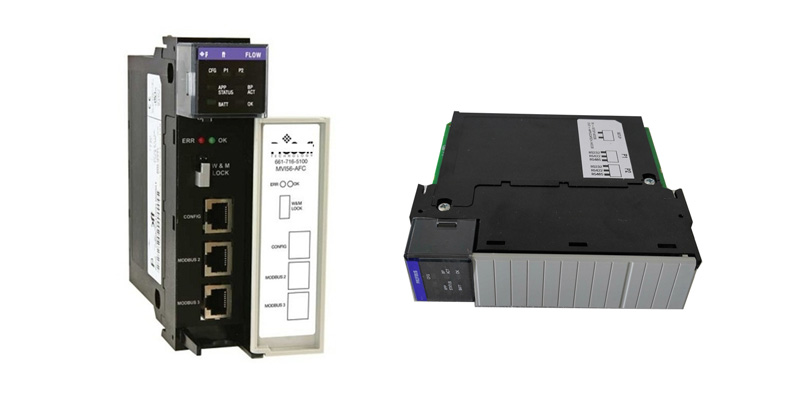

The MVI56-AFC is an in-rack liquid and gas flow computer module for the Rockwell Automation ControlLogix platform. It offloads complex flow calculations from the PLC, supporting AGA 3, 7, 8 and API MPMS standards for hydrocarbon measurement.
