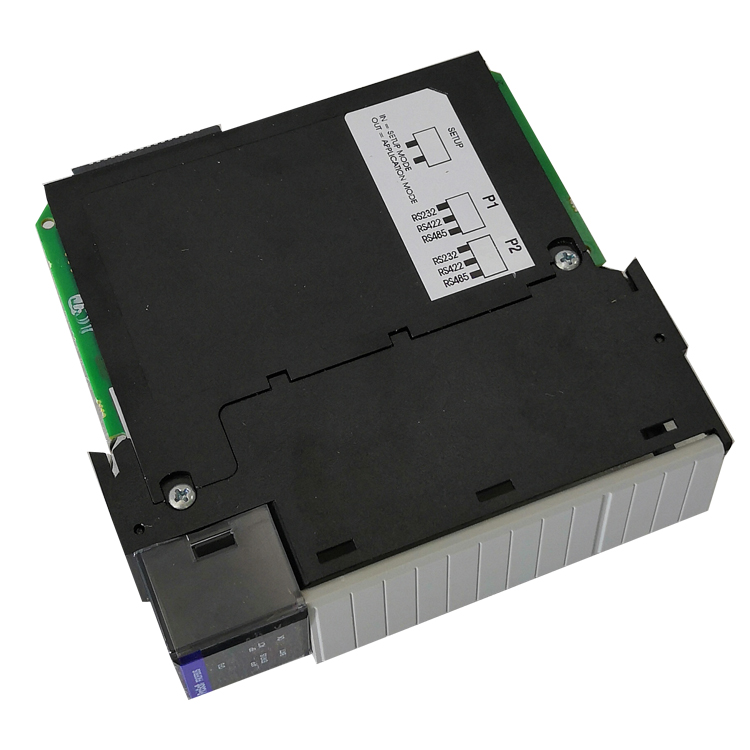

The ProSoft MVI56-MBP is a powerful Modbus Plus Dual Port Network Interface Module designed for the Rockwell Automation ControlLogix platform. This single-slot, backplane-compatible module enables seamless integration between ControlLogix processors and Modbus Plus networks, bridging the gap between Allen-Bradley control systems and Modicon PLCs or other Modbus Plus-compatible devices .
The module operates as a peer on the Modbus Plus network while acting as an Input/Output module to the ControlLogix backplane. Its dual-port design and 4000-word register space provide robust, high-speed data exchange capabilities for demanding industrial automation applications.
Item No :
MVI56-MBPOrder(MOQ) :
1Payment :
EXWProduct Origin :
USAShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
1.5kgProducts Description
ProSoft MVI56-MBP Modbus Plus Dual Port Communication Module
High-Performance Modbus Plus Gateway for ControlLogix Processors
| Model Number | MVI56-MBP |
| Place of Origin | USA |
| Dimension/Weight | 1.5 kg |
| Condition | new and original |
| Warranty | 1 year |
| Shipping term |
DHL Fedex TNT EMS UPS |
| Payment | TT / Western Union |
| Delivery Time | 3-5 days |
| Service |
24 Hours Online Service |
Dual Modbus Plus Ports: Two DB9 female connectors provide redundant or dual-network connectivity for enhanced reliability and flexibility
Master and Slave Functionality: Supports both master and slave modes, enabling peer-to-peer connectivity with Modicon processors and other Modbus Plus devices such as drives, relays, and power monitors
4000-Word Register Space: Large internal database enables efficient data exchange between the ControlLogix processor and the Modbus Plus network
Asynchronous Data Transfer: Data transfer from the ControlLogix processor is asynchronous from Modbus Plus network actions, optimizing overall system performance
Global Data Exchange: Actively exchanges global in/out data (32 words max per node) with priority given to these data types for high-speed transfer of control data
Comprehensive Command Support: Up to 100 configurable master commands with conditional and continuous polling capabilities
Flexible Configuration: Software-configurable node addressing (1-64), global data sizes, and memory allocation
Industrial-Grade Reliability: Wide operating temperature range (0°C to 60°C), 30g shock tolerance, and robust aluminum construction
Easy Integration: Single-slot 1756 backplane-compatible; includes sample ladder logic file and supports RSLogix 5000/Studio 5000
Diagnostic Tools: Built-in configuration/debug port and LED status indicators for module status, backplane transfer, and serial activity
| Category | Specification |
|---|---|
| Manufacturer | ProSoft Technology |
| Model Number | MVI56-MBP |
| Product Type | Modbus Plus Dual Port Network Interface Module |
| Platform | Rockwell Automation ControlLogix (1756 chassis) |
| Slot Requirement | 1 single slot |
| Parameter | Detail |
|---|---|
| Protocol | Modbus Plus |
| Communication Ports | 2 x DB9 Female (Standard Modbus Plus Connectors) |
| Modbus Plus Connectors | Two DB9 Female Standard Modbus Plus connectors |
| Debug/Configuration Port | 1 x RJ45 (RS-232) with supplied DB-9M cable |
| Baud Rate | 57,600 bps (fixed) |
| Data Format | 1 Start, 8 Data, No Parity, 1 Stop |
| Parameter | Detail |
|---|---|
| Command List Support | Up to 200 commands |
| Supported Function Codes (Master) | 3, 16 |
| Polling Types | Conditional and continuous command list polling |
| Event Commands | Event-driven bit and register write commands (ladder logic controlled) |
| Broadcast Support | Supports sending of broadcast commands |
| Error Handling | Communication status error codes returned to ladder logic per command |
| Parameter | Detail |
|---|---|
| Supported Function Codes (Slave) | 1, 2, 3, 4, 5, 6, 15, 16 |
| Broadcast Support | Supports broadcast commands from host |
| Error Reporting | Communication error codes returned to ladder logic |
| Parameter | Detail |
|---|---|
| Global In Data | 32 words max per node |
| Global Out Data | 32 words max per node |
| Priority | High-priority data transfer for control data |
| Parameter | Detail |
|---|---|
| Backplane Current (5V DC) | 800 mA |
| Backplane Current (24V DC) | 3 mA |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock (Operational) | 30 g |
| Shock (Non-Operational) | 50 g |
| Vibration | 5 g from 10 to 150 Hz |
| LED Indicators | Module Status, Backplane Transfer Status, Application Status, Serial Activity |
| Weight | Approx. 0.28 - 0.63 kg |
| Parameter | Detail |
|---|---|
| Node Address | 1 to 64 (software configurable) |
| Routing Support | All 5 levels of Modbus Plus routing |
| Maximum Word Reads/Writes | 100 words |
| Module Data Transfer | 0 to 4,000 words |
The MVI56-MBP module is deployed across a wide range of industrial sectors requiring Modbus Plus connectivity :
| Industry | Application |
|---|---|
| Automotive | Manufacturing line control with mixed Modicon and ControlLogix systems |
| Food Processing | Process control integration between different PLC platforms |
| Mining | Material handling and conveyor control systems |
| Oil & Gas | Pipeline monitoring and offshore platform control |
| Pulp & Paper | Integrated process control with legacy Modbus Plus devices |
| Water/Wastewater | Pump station and treatment facility SCADA integration |
