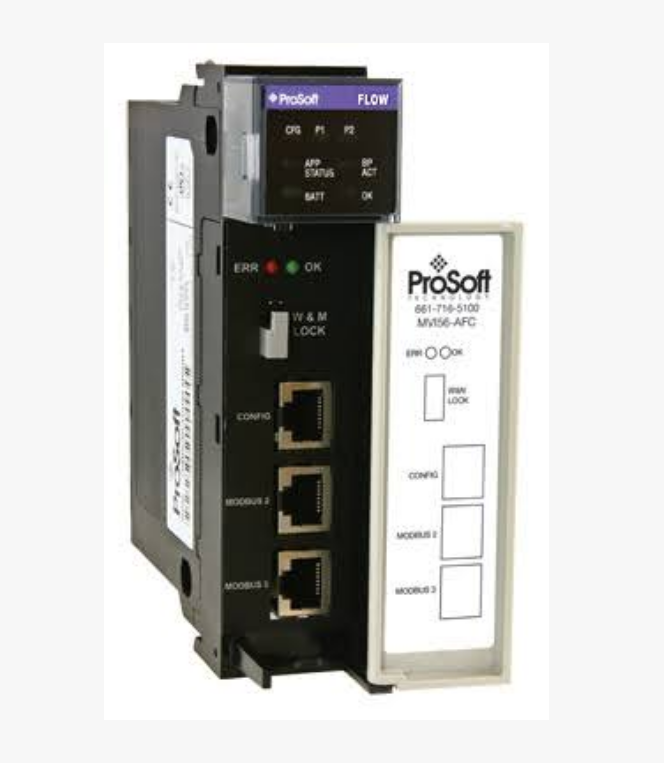

The MVI56-AFC is an in-rack liquid and gas flow computer module for the Rockwell Automation ControlLogix platform. It offloads complex flow calculations from the PLC, supporting AGA 3, 7, 8 and API MPMS standards for hydrocarbon measurement.
Item No :
MVI56-AFCOrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3-5daysWeight :
3KG| Feature | Description |
|---|---|
| Platform | Rockwell Automation ControlLogix (single-slot, backplane-compatible) |
| Supported Media | Liquid and Gas/Steam |
| Measurement Standards | AGA 3, 7, 8; API MPMS Ch. 11 & 12 |
| Meter Runs | Supports up to 16 meter runs (differential, linear, liquid) |
| Data Archiving | Extensive daily/hourly archives; up to 1,999 event logs per station |
| Communication | Multiple configurable Modbus ports with a vast internal Modbus map |
| Certification | Industry Canada custody transfer certified |
| Operating Temp. | 0 to 60 °C (32 to 140 °F) |
| Platform | Model | Description |
|---|---|---|
| ControlLogix | MVI56E-AFC | Enhanced version with additional diagnostics and alarm features |
| CompactLogix | MVI69-AFC | Flow computer module for the CompactLogix platform |
| SLC 500 | MVI46-AFC | Flow computer module for the SLC 500 platform |
| PLC-5 | MVI71-AFC | Flow computer module for the PLC-5 platform |
Q1: Is the MVI56-AFC certified for custody transfer applications?
Yes, the module has received custody transfer certification from Industry Canada, confirming its gas measurement values are accurate enough for use in ownership transfer and pricing.
Q2: How does this module integrate with the ControlLogix processor?
It acts as an add-on co-processor, communicating directly via the ControlLogix backplane. This allows it to perform calculations without burdening the main PLC processor.
Q3: How many meter runs can the module support?
The MVI56-AFC can support up to 16 differential (AGA3), linear (AGA7), or liquid meter runs, with four streams per meter.

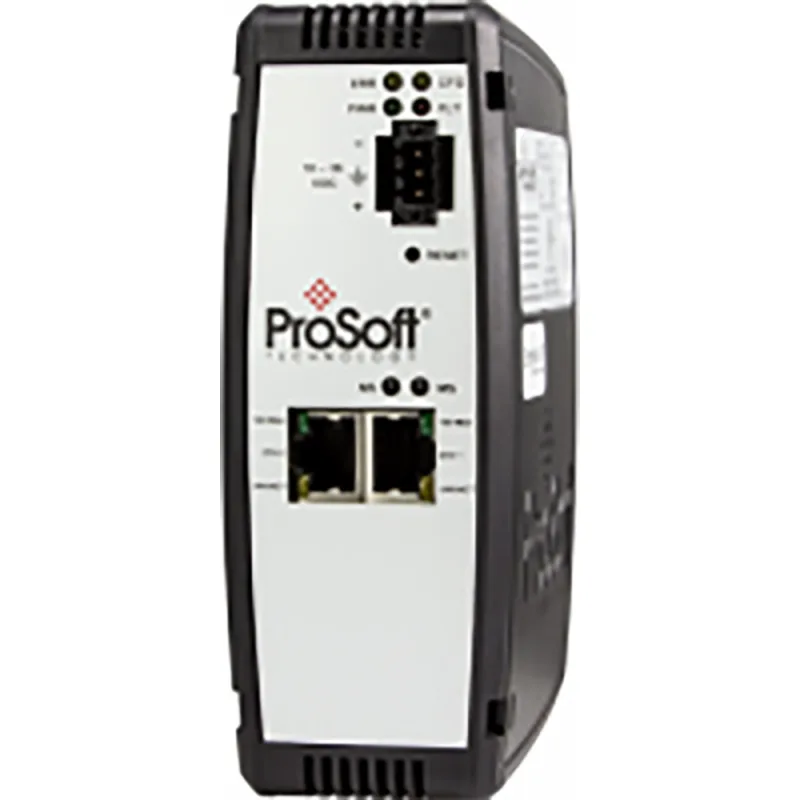

The ProSoft PLX32-EIP-PND is a stand-alone DIN-rail mounted gateway that provides bi-directional data transfers between EtherNet/IP and PROFINET networks.

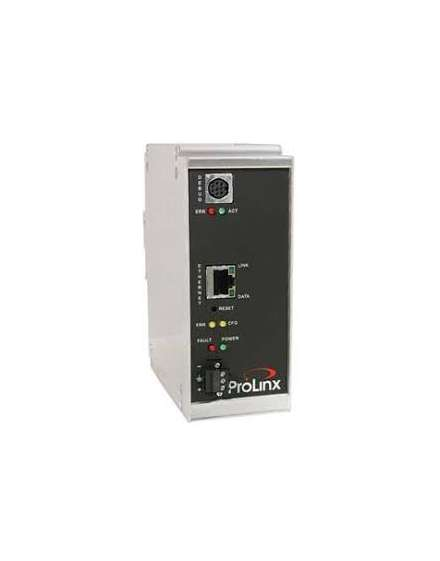

The ProSoft 5201-MNET-MCM is a Modbus TCP/IP to Modbus Master/Slave Gateway from the ProLinx family, designed to seamlessly connect Ethernet-based Modbus TCP/IP networks with legacy Modbus serial devices.
The MVI56-AFC is an in-rack liquid and gas flow computer module for the Rockwell Automation ControlLogix platform. It offloads complex flow calculations from the PLC, supporting AGA 3, 7, 8 and API MPMS standards for hydrocarbon measurement.

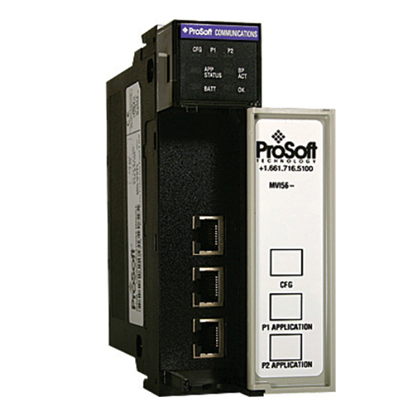

The ProSoft MVI56-DFCM is a DF1 Master/Slave serial communication module for the Rockwell Automation ControlLogix platform. It enables seamless integration between ControlLogix processors and DF1-compatible devices, allowing the system to act as a SCADA sub‑master or slave on a DF1 network.
The ProSoft MVI56-DH485 is a DH-485 communication module for the Rockwell Automation ControlLogix platform. It provides a high-speed interface between ControlLogix processors and DH-485 networks, allowing seamless integration with legacy Rockwell Automation PLCs (such as SLC 5/03) and other DH-485 compatible end devices.

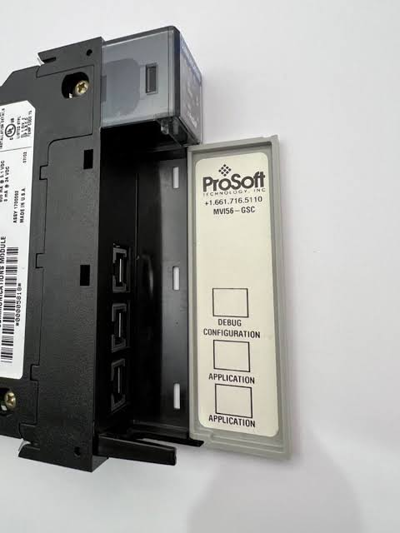

The ProSoft MVI56-GSC is a Generic ASCII Serial Communication Module for the Rockwell Automation ControlLogix platform. It adds two fully configurable serial ports that enable the ControlLogix processor to communicate with ASCII-based devices such as barcode scanners, weigh scales, printers, and legacy serial instruments—without consuming the processor's front port or valuable processing time.
