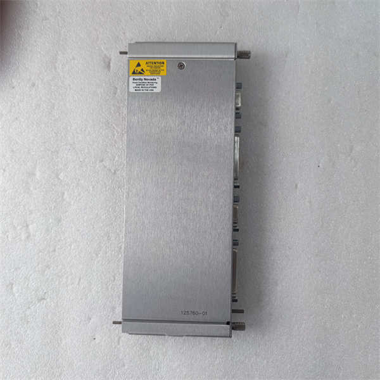

The Bently Nevada 125760-01 is a Data Manager I/O Module designed for the 3500 series machinery protection system. It serves as the primary rear-rack interface between the 3500 rack and external communication processors, enabling rack configuration, machinery data collection, and system diagnostics.
Item No :
125760-01Order(MOQ) :
1 PiecePayment :
EXW/CIFProduct Origin :
USAShipping Port :
WuhanLead Time :
3-5daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 125760-01 |
| Product Family | 3500 Machinery Protection System |
| Product Type | Data Manager I/O Module |
| Installation Slot | Slot 1 (adjacent to power supply) |
| Communication Protocol | Bently Nevada proprietary protocol |
| Compatible Processors | TDXnet, TDIX, DDIX |
| Data Manager Ports | Two sets for external connections |
| Maximum Cable Length | 3 meters (10 feet) |
| Power Supply | Powered by 3500 rack backplane |
| Dimensions | Approx. 24.1 × 10.2 × 2.5 cm |
| Weight | Approx. 0.4 kg |
| Country of Origin | United States |
| Lifecycle Status | Active / Available as New Surplus |
| Model | Description | Typical Application |
|---|---|---|
| 125760-01 (this model) | Data Manager I/O Module | 3500 rack communication and data management |
| 125744-02 | Standard Rack Interface Module (main card) | Companion front card for RIM assembly |
| 125744-01 | TMR Rack Interface Module (main card) | Companion front card for TMR RIM assembly |
| 135031-01 | RIM I/O Module with Modem Interface | Alternative I/O for modem communication |
| 125768-01 | RIM I/O Module with RS-232/RS-422 Interface | Alternative I/O for serial communication |
| 3500/22M | Transient Data Interface (TDI) | Enhanced communication with System 1 software |
Q1: What is the primary function of the 125760-01?
It is a Data Manager I/O Module that acts as the primary communication and data management interface for the Bently Nevada 3500 monitoring system. It enables rack configuration, machinery data retrieval, and system integration with external communication processors.
Q2: Where should the 125760-01 be installed?
The module must be installed in Slot 1 of the 3500 rack, adjacent to the power supply modules. Only one RIM or Data Manager I/O Module is required per rack .
Q3: Is the 125760-01 part of the machinery protection path?
No. It performs rack-level communication and management functions but does not directly participate in the critical monitoring channel. The monitoring system's automatic machinery protection functions continue to operate normally even if this module is removed or fails.
Q4: Which communication processors are supported?
Compatible processors include TDXnet, TDIX, and DDIX communication interfaces. The module uses Bently Nevada's proprietary protocol for stable and efficient system communication .
Q5: Does the module support TMR systems?
Yes. In Triple Modular Redundant (TMR) systems, the specialized TMR RIM functionality (using the 125744-01 main card) provides monitor channel comparison and voting logic. The 125760-01 serves as the I/O interface in these configurations.
The Bently Nevada 3500/60-01-00 is a 6-Channel Temperature Monitor for the 3500 Machinery Protection System. The complete configuration consists of the 163179-01 Temperature Monitor (main card) and the 133819-01 RTD/TC I/O Module with internal terminations.
The Bently Nevada 3500/53M-01-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System, configured with the 286566-01 Overspeed Detection main card and the 133396-01 Overspeed Detection I/O Module.
The Bently Nevada 3500/53M-01-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System. The 3500/53M is the split-base M-series version, using the 286566-01 main card with the 133396-01 rear I/O module. It is not drop-in compatible with the legacy 3500/53 (133388-01).
The Bently Nevada 3500/53M-01-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System. The 3500/53M is the split-base M-series version, using the 286566-01 main card with the 133396-01 rear I/O module. It is not drop-in compatible with the legacy 3500/53 (133388-01).
The Bently Nevada 3500/53-03-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System, configured with the 133388-01 Overspeed Detection main card and the 133396-01 Overspeed Detection I/O Module.
he Bently Nevada 288062-02 is the Tachometer Module main card for the 3500/50M Tachometer Module in the 3500 Machinery Protection System. It is a dual-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotational speed, rotor acceleration, and rotor direction.
The Bently Nevada 3500/50M-01-00 is a 2-Channel Tachometer Module for the 3500 Machinery Protection System, configured with the 288062-02 Tachometer main card and the 133442-01 I/O Module with internal terminations. The "M" designation indicates M-series functionality, providing enhanced integration with System 1 diagnostic software.
The Bently Nevada 133442-01 is a dual-channel Tachometer I/O Module with Internal Terminations, designed for the 3500/50 Tachometer Module in the 3500 Machinery Protection System. The module conditions raw pulse signals to determine shaft rotational speed, rotor acceleration, and rotor direction, and can supply conditioned Keyphasor signals to the rack backplane for use by other monitoring modules.
