The Bently Nevada 3500/42M-09-00 is a 4-channel enhanced Proximitor/Seismic Monitor from the 3500 Machinery Protection System. It accepts inputs from proximity, velocity, and acceleration transducers, providing high-precision radial vibration, thrust position, and shaft displacement measurements for critical rotating machinery.
Item No :
3500/42M-09-00Order(MOQ) :
1Payment :
EXW/CIFProduct Origin :
USAShipping Port :
WuhanLead Time :
3-5daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (Emerson) |
| Model | 3500/42M-09-00 |
| Product Family | 3500 Machinery Protection System |
| Product Type | 4-Channel Enhanced Proximitor/Seismic Monitor |
| Input Channels | 4 channels, independently configurable |
| Input Signal Range | -2 VDC to -18 VDC (compatible with 3300 XL 8mm systems) |
| Sensitivity | 8.0 mV/μm (200 mV/mil) |
| Frequency Response | DC to ≥10 kHz (-3 dB) |
| I/O Module Type (-09) | 128229-01 Prox/Velom I/O Module with internal terminations |
| Agency Approval (-00) | None (standard version) |
| Alarm Outputs | Per-channel Alert and Danger status via backplane |
| Diagnostics | Probe open/short detection, input over-range, module self-test fault |
| Front Panel LEDs | Per-channel OK / Alert / Danger / Fault indicators |
| Transducer Power Supply | -24 VDC |
| Power Consumption | 7.7 W typical |
| Recorder Output | +4 to +20 mA |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Weight | Approx. 0.91 kg (main module) |
| Certifications | CE, UL/cUL, CSA, RoHS; API 670 5th Edition compliant |
| Compatible Terminal Block | 176449-02 (for external termination options) |
| Lifecycle Status | Active / Mature |
| Model | Description | Typical Application |
|---|---|---|
| 3500/42M-09-00 (this model) | 4-channel Prox/Seismic, internal terminations, no approvals | Standard rotating machinery protection |
| 3500/42-09-00 | Standard version (non-enhanced) | Legacy system replacement |
| 3500/42M-01-00 | With external terminations | Applications requiring remote termination |
| 3500/42M-09-01 | With hazardous area approvals | ATEX/IECEx Zone 2 installations |
| 3500/70M | Reciprocating compressor monitor | Reciprocating machinery (not rotating) |
| 3500/25 | Enhanced Keyphasor module | Speed/phase reference measurement |
| 3500/22M | Transient Data Interface | System 1 data collection |
Q1: What is the difference between the 3500/42M and the standard 3500/42?
The 3500/42M is the enhanced version featuring advanced signal processing algorithms, more comprehensive self-diagnostics (including probe open/short detection), and superior noise immunity for high-interference environments . It is the preferred choice for critical machinery where measurement accuracy directly impacts protection reliability.
Q2: What does the "-09" and "-00" suffix mean in the model number?
The -09 indicates the I/O module type: 128229-01 Prox/Velom I/O Module with internal terminations . The -00 indicates no hazardous area agency approvals (standard version) . For hazardous areas, the -01 or -05 suffix variants are required.
Q3: What transducers can be connected to this module?
The 3500/42M accepts inputs from proximity probes (3300 XL series), velocity transducers (Velomitor), and acceleration transducers . Each of the 4 channels can be independently configured for the appropriate transducer type.
Q4: What is the primary application difference between 3500/42M and 3500/70M?
The 3500/42M is designed for rotating machinery (turbines, compressors, pumps) to monitor radial vibration and shaft position . The 3500/70M is specialized for reciprocating machinery (reciprocating compressors, large diesel engines) to analyze impact events, rod drop, and cylinder pressure .
Q5: What does a "Not OK" status on a channel indicate?
A "Not OK" status typically indicates a transducer fault, cable break, or supply voltage drop. Check the -24 VDC power rail at the I/O module first using a high-impedance multimeter . Other common causes include loose connections, probe gap out of range, or a failed Proximitor sensor.
The Bently Nevada 330105-02-12-05-02-00 is an 8 mm reverse-mount proximity probe from the 3300 XL series, engineered for non-contact vibration and position monitoring in space-constrained machinery.
The Bently Nevada 330130-085-00-00 is an 8.5-meter standard extension cable for the 3300 XL 8 mm Proximity Transducer System. It connects a 3300 XL proximity probe to its Proximitor® sensor, transmitting eddy-current displacement signals for vibration, axial position, and Keyphasor measurements on critical rotating machinery.

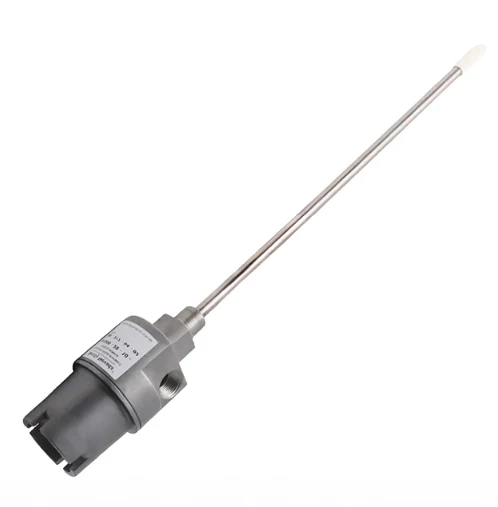

The Bently Nevada 21000-00-00-15-030-04-00 is a Proximity Probe Housing Assembly from the 21000 series, designed to provide a secure, environmentally sealed mounting interface for reverse-mount proximity probes on critical rotating machinery.

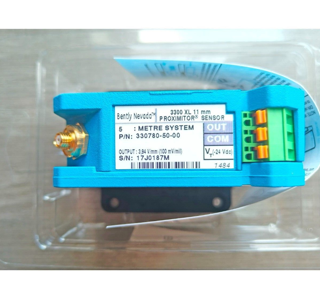

The Bently Nevada 330780-50-00 is a 5.0-meter Proximitor® Sensor for the 3300 XL 11 mm Proximity Transducer System. It receives signals from a 3300 XL 11 mm probe and its extension cable, conditioning them into a linear voltage output proportional to shaft displacement for radial vibration, axial thrust position, and Keyphasor measurement.

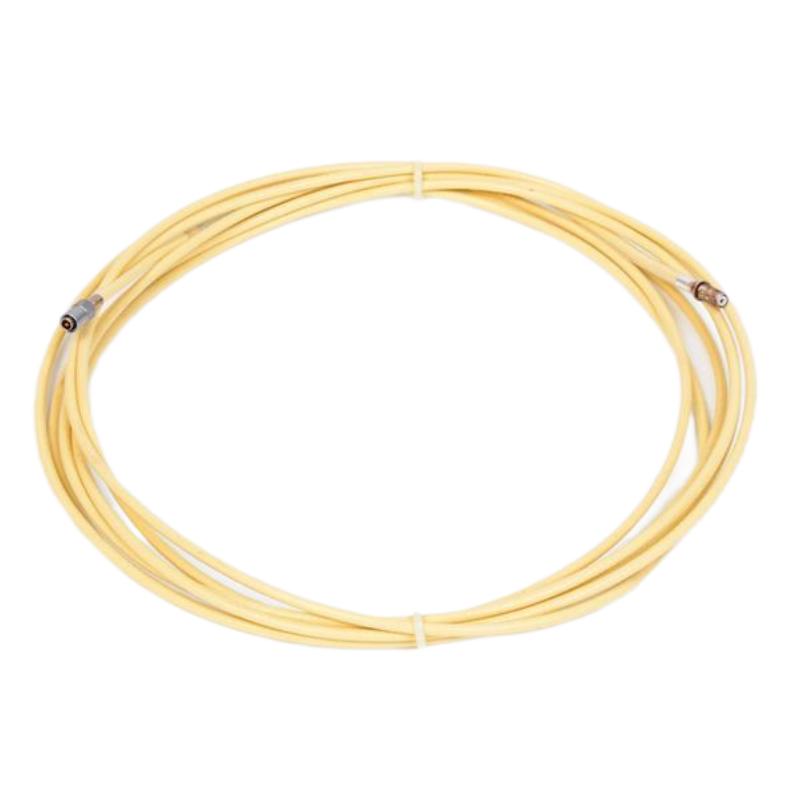

The Bently Nevada 21747-040-00 is a 4-meter Proximitor probe extension cable designed for the 3300 and 7200 Series Proximity Transducer Systems. It connects a proximity probe to its Proximitor sensor, transmitting high-frequency eddy-current displacement signals for vibration and shaft position monitoring on critical rotating machinery.

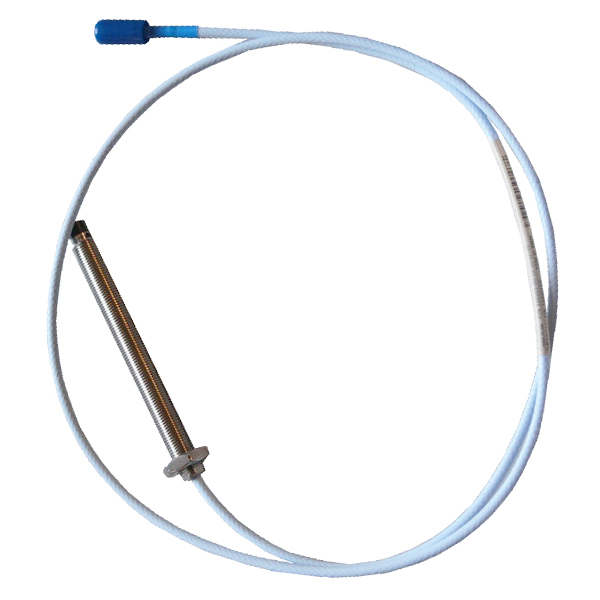

The Bently Nevada 330710-00-060-10-02-00 is a 3300 XL 11 mm Proximity Probe designed for non-contact vibration and position measurement on large, fluid-film bearing machinery. Its 11 mm tip provides a longer linear range compared to the standard 8 mm system, making it ideal for applications requiring greater measurement span, such as axial thrust position, differential expansion, and radial vibration on steam turbines, centrifugal compressors, and large pumps.
The Bently Nevada 330103-00-11-50-02-00 is a 3300 XL 8 mm proximity probe with a metric M10×1 thread and a 5.0-meter integral cable terminated with a miniature coaxial ClickLoc™ connector. This extended-reach configuration features a 110 mm overall case length and connects directly to a Proximitor® sensor without requiring an extension cable for short-run installations.

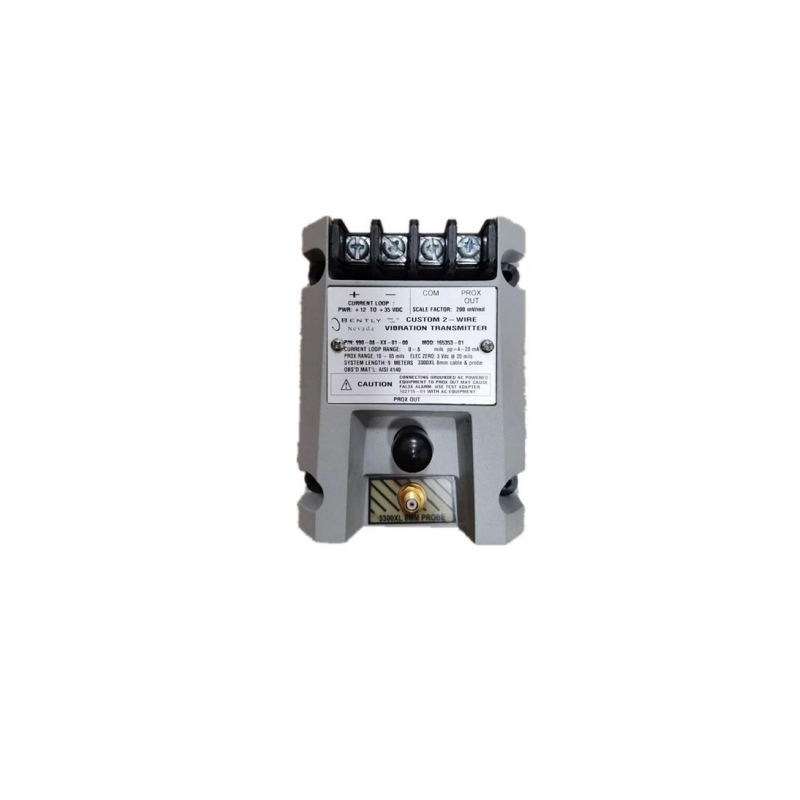

The Bently Nevada 990-10-XX-01-00 (MOD 165353-01) is a two-wire, loop-powered Vibration Transmitter designed for OEMs of centrifugal air compressors, small pumps, motors, and fans. It accepts input from a 3300 NSv proximity probe and its matching extension cable, conditioning the signal into a 4–20 mA output proportional to peak-to-peak vibration amplitude.
