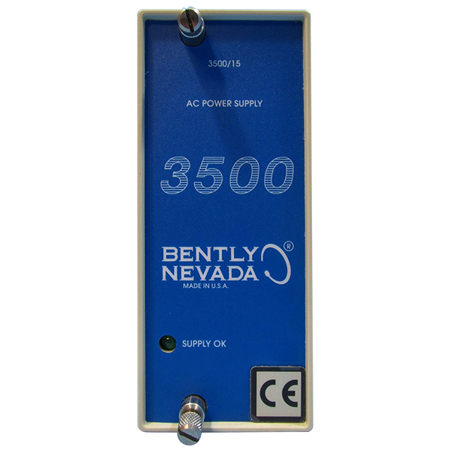

The Bently Nevada 3500/15-05-00-00 is a Universal AC Power Supply module for the 3500 series machinery protection system. The 106M1079-01 power supply module (main card) and the 106M1081-01 power input module (PIM). This configuration is a single-supply setup (upper slot only, lower slot empty) that provides the entire 3500 rack with regulated DC power.
Item No :
3500/15-05-00-00Order(MOQ) :
1 PiecePayment :
EXW/CIFProduct Origin :
USAShipping Port :
WuhanLead Time :
3-5daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 3500/15-05-00-00 |
| Product Type | Universal AC Power Supply (Single Supply) |
| Power Supply Module (Main Card) | 106M1079-01 |
| Power Input Module (PIM) | 106M1081-01 |
| Input Voltage | 85–264 VAC (universal AC) |
| Input Frequency | 47–63 Hz |
| Output Voltage | +5V, ±15V (rack bus); +24VDC (auxiliary) |
| Rated Power | Approx. 150W (single module) |
| Efficiency | Typ. 85–90% |
| Protection | Overvoltage, undervoltage, short-circuit, over-temperature |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Rack Position | Left-side designated slots (upper slot for this single-supply config) |
| Hot Swap | Supported (with second supply installed) |
| Dimensions (Main Card) | 120.7 mm x 50.8 mm x 251.5 mm |
| Weight (Main Card) | Approx. 1.39 kg |
| Weight (PIM) | Approx. 0.34 kg |
| Certifications | CE, UL, CSA, ATEX/IECEx (optional) |
| Model | Description | Typical Application |
|---|---|---|
| 3500/15-05-00-00 (this model) | Universal AC, single supply (upper slot only) | Standard single-supply rack configuration |
| 3500/15-05-05-00 | Universal AC, dual supply (both slots) | Redundant power for critical applications |
| 3500/15-02-00-00 | High Voltage AC, single supply (175–264 VAC) | Legacy 220V AC installations |
| 3500/15-03-00-00 | High Voltage DC, single supply (88–140 VDC) | DC-powered rack configurations |
| 3500/15-04-00-00 | Low Voltage DC, single supply (20–30 VDC) | 24V DC-powered systems |
| 106M1079-01 | Universal AC Power Supply Module (main card) | Spare main card |
| 106M1081-01 | Universal AC Power Input Module (PIM) | Spare PIM |
Q1: What is the difference between the 3500/15-05-00-00 and the 3500/15-05-05-00?
The 3500/15-05-00-00 is a single-supply configuration (upper slot only, lower slot empty). The 3500/15-05-05-00 is a dual-supply (redundant) configuration with power supplies installed in both the upper and lower slots. Both use the same 106M1079-01 and 106M1081-01 components.
Q2: What is the difference between 106M1079-01 and 106M1081-01?
The 106M1079-01 is the main power supply module (the "big card") that performs the actual power conversion, delivering regulated DC output to the rack bus. The 106M1081-01 is the Power Input Module (PIM) (the "small card") that provides external AC wiring terminals, EMI filtering, and surge protection. Both are required together to form a complete power supply.
Q3: Can I replace the 106M1079-01 or 106M1081-01 while the rack is running?
Yes, with conditions. If a second power supply is installed in the rack, either the main card or the PIM can be hot-swapped without disrupting rack operation. The remaining supply automatically carries the full load. If only one supply is installed, the rack must be powered down before replacement.
Q4: Is the 106M1079-01 compatible with older 127610-01 power supplies?
No. The 106M1079-01 (Universal AC) is not interchangeable with the legacy 127610-01 (High Voltage AC). They have different input voltage ranges and are not pin-compatible for mixing. A complete legacy or new power supply set can coexist in the same rack with redundant power, but individual modules cannot be mixed.
Q5: What are the common failure symptoms of a 3500/15 power supply?
Common failure indicators include: Supply OK LED not illuminated, rack modules failing to power up, intermittent module dropouts, or rack-wide communication faults. Check the PIM fuse (120M3877) and verify input voltage at the PIM terminals. If the main card is faulty, the entire 106M1079-01 + 106M1081-01 set should be replaced.
The Bently Nevada 3500/60-01-00 is a 6-Channel Temperature Monitor for the 3500 Machinery Protection System. The complete configuration consists of the 163179-01 Temperature Monitor (main card) and the 133819-01 RTD/TC I/O Module with internal terminations.
The Bently Nevada 3500/53M-01-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System, configured with the 286566-01 Overspeed Detection main card and the 133396-01 Overspeed Detection I/O Module.
The Bently Nevada 3500/53M-01-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System. The 3500/53M is the split-base M-series version, using the 286566-01 main card with the 133396-01 rear I/O module. It is not drop-in compatible with the legacy 3500/53 (133388-01).
The Bently Nevada 3500/53M-01-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System. The 3500/53M is the split-base M-series version, using the 286566-01 main card with the 133396-01 rear I/O module. It is not drop-in compatible with the legacy 3500/53 (133388-01).
The Bently Nevada 3500/53-03-00 is a Single-Channel Electronic Overspeed Detection Module for the 3500 Machinery Protection System, configured with the 133388-01 Overspeed Detection main card and the 133396-01 Overspeed Detection I/O Module.
he Bently Nevada 288062-02 is the Tachometer Module main card for the 3500/50M Tachometer Module in the 3500 Machinery Protection System. It is a dual-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotational speed, rotor acceleration, and rotor direction.
The Bently Nevada 3500/50M-01-00 is a 2-Channel Tachometer Module for the 3500 Machinery Protection System, configured with the 288062-02 Tachometer main card and the 133442-01 I/O Module with internal terminations. The "M" designation indicates M-series functionality, providing enhanced integration with System 1 diagnostic software.
The Bently Nevada 133442-01 is a dual-channel Tachometer I/O Module with Internal Terminations, designed for the 3500/50 Tachometer Module in the 3500 Machinery Protection System. The module conditions raw pulse signals to determine shaft rotational speed, rotor acceleration, and rotor direction, and can supply conditioned Keyphasor signals to the rack backplane for use by other monitoring modules.
