The ProSoft MVI56-MNETC is a high-performance Modbus TCP/IP multi-client communication module designed for the Rockwell Automation ControlLogix platform. This single-slot, backplane-compatible module serves as a robust gateway between ControlLogix processors and Modbus TCP/IP networks, enabling seamless data exchange with a wide range of Modbus-compatible devices including PLCs, drives, instrumentation, and SCADA systems.
The "C" in MNETC designates Client-only functionality — the module is optimized for applications requiring simultaneous connections to multiple Modbus TCP/IP server devices.
Item No :
MVI56-MNETCOrder(MOQ) :
1Payment :
EXWProduct Origin :
USAShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
4.5kgProducts Description

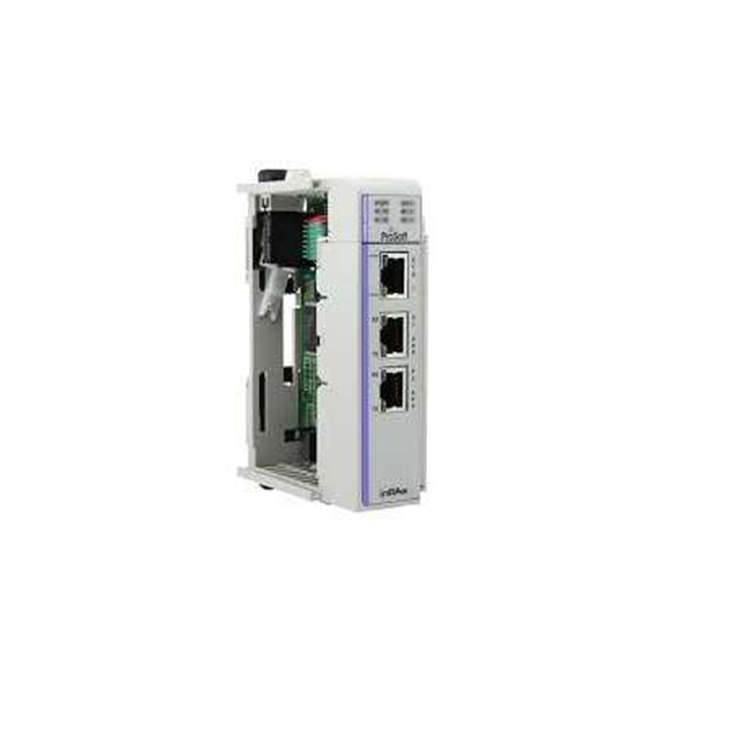

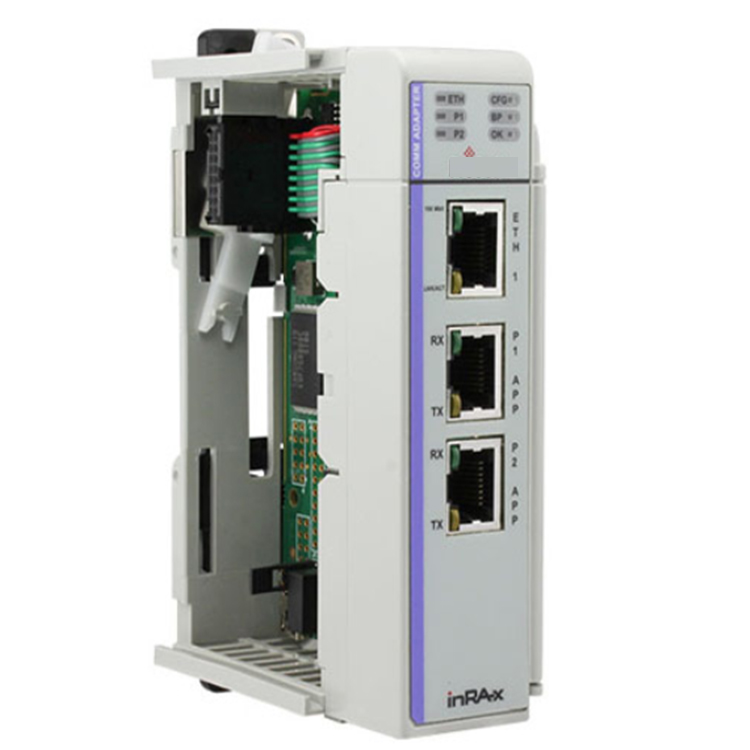

ProSoft MVI56-MNETC Modbus TCP/IP Multi-Client Communication Module
High-Performance Communication Module for Rockwell Automation ControlLogix
| Model Number | MVI56-MNETC |
| Place of Origin | USA |
| Dimension/Weight | 4.5 kg |
| Condition | new and original |
| Warranty | 1 year |
| Shipping term |
DHL Fedex TNT EMS UPS |
| Payment | TT / Western Union |
| Delivery Time | 3-5 days |
| Service |
24 Hours Online Service |
30 Simultaneous Modbus TCP/IP Clients: Supports up to 30 independent client connections, enabling concurrent communication with multiple server devices and eliminating the connection open/close overhead typical of single-client implementations
High-Performance Data Exchange: Leverages the ControlLogix backplane with 800 mA @ 5V DC power consumption, delivering efficient data transfer at 10/100 Mbps with auto-crossover detection
User-Definable Data Mapping: Supports up to 5,000 16-bit registers of user-configurable data memory, providing flexible data organization for diverse application requirements
Comprehensive Diagnostics: Features a 4-character LED display for module status, IP address, port settings, and error information, plus front-panel LEDs for OK, APP (application), and ERR (battery/error) status
Easy Integration with ControlLogix: Includes pre-configured Add-On Instructions (AOI) and sample ladder logic for quick setup in RSLogix 5000 / Studio 5000 environments
Industrial-Grade Reliability: Operating temperature range of 0°C to 60°C with storage capability from -40°C to 85°C, suitable for demanding industrial environments
Remote Configuration & Diagnostics: Built-in web server and ProSoft Configuration Builder (PCB) support enable remote configuration, firmware updates, and diagnostics without physical access to the module
CIPconnect™ Technology: Enables configuration and data access through the ControlLogix backplane, simplifying network architecture
| Category | Specification |
|---|---|
| Manufacturer | ProSoft Technology |
| Model Number | MVI56-MNETC |
| Product Type | Modbus TCP/IP Multi-Client Communication Module |
| Platform | Rockwell Automation ControlLogix (1756 chassis) |
| Slot Requirement | 1 single slot |
| Parameter | Detail |
|---|---|
| Ethernet Port | 1 x 10/100 Mbps RJ45 with auto-crossover detection |
| Protocol | Modbus TCP/IP (Client only) |
| Client Connections | Up to 30 simultaneous clients |
| Server Connections | Up to 20 simultaneous server connections |
| Supported Modbus Function Codes | 1, 2, 3, 4, 5, 6, 8, 15, 16 |
| Parameter | Detail |
|---|---|
| Backplane Current (5V DC) | 800 mA |
| Backplane Current (24V DC) | 3 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Shock (Operating) | 30 g |
| Shock (Non-Operating) | 50 g |
| Protection Rating | IP20 |
| Certifications | CE, UL, ATEX Zone 2, IECEx, RoHS |
| Parameter | Detail |
|---|---|
| User-Definable Registers | 5,000 x 16-bit |
| Read Data Area Size | Configurable (multiples of 200 registers recommended) |
| Write Data Area Size | Configurable (multiples of 200 registers recommended) |
