EddyCurrent Vibration Sensor

The Bently Nevada 330106-05-30-10-02-00 is an 8 mm reverse-mount proximity probe from the 3300 XL series, designed for high-precision vibration and position monitoring in critical rotating machinery. The probe features a metric M10×1 thread, a 30 mm compact case, and a 1.0-meter armored cable with a miniature ClickLoc connector.

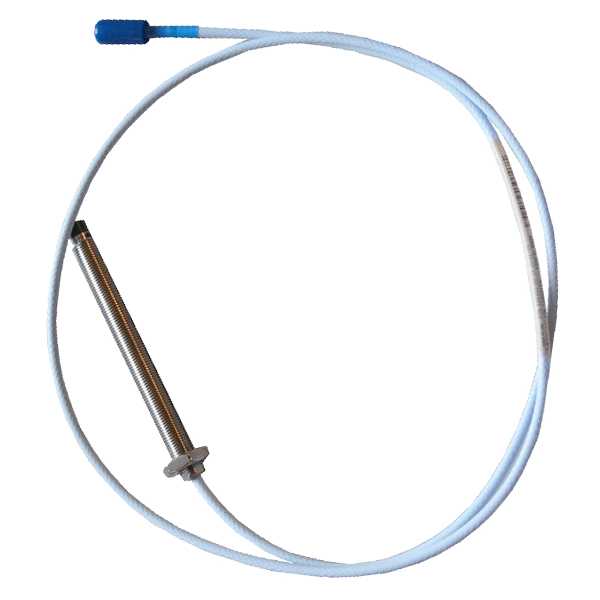

The Bently Nevada 330103-00-03-10-02-00 is a 3300 XL 8 mm proximity probe with a metric M10×1 thread, 0 mm unthreaded length (fully threaded case), 30 mm overall case length, and a 1.0-meter integral cable terminated with a miniature coaxial ClickLoc connector.

The Bently Nevada 330180-50-00 is a 5.0-meter, panel-mount Proximitor® Sensor from the 3300 XL 8 mm Proximity Transducer System.  It serves as the signal-conditioning stage of the transducer system. The 3300 XL 8 mm system is Bently Nevada's most advanced eddy-current transducer system, fully compliant with API 670 (4th Edition).

The Bently Nevada 330180-90-00 is a 9.0-meter, panel-mount Proximitor® Sensor from the 3300 XL 8 mm Proximity Transducer System. It serves as the signal-conditioning stage of the transducer system, converting the eddy-current signal from a 3300 XL 8 mm probe and extension cable into a precise analog voltage output for vibration, thrust position, and Keyphasor measurements on fluid-film bearing machinery.

The Bently Nevada 330709-000-050-10-02-00 is a 3300 XL 11 mm proximity probe designed for non-contact vibration and position monitoring on rotating machinery. It features a metric M16×1.5 mounting thread, a 50 mm overall case length, and a 1.0-meter integral cable terminated with a miniature coaxial ClickLoc connector.

The Bently Nevada 330105-02-12-05-02-00 is an 8 mm reverse-mount proximity probe from the 3300 XL series, engineered for non-contact vibration and position monitoring in space-constrained machinery.

The Bently Nevada 330710-00-060-10-02-00 is a 3300 XL 11 mm Proximity Probe designed for non-contact vibration and position measurement on large, fluid-film bearing machinery. Its 11 mm tip provides a longer linear range compared to the standard 8 mm system, making it ideal for applications requiring greater measurement span, such as axial thrust position, differential expansion, and radial vibration on steam turbines, centrifugal compressors, and large pumps.

The Bently Nevada 330103-00-11-50-02-00 is a 3300 XL 8 mm proximity probe with a metric M10×1 thread and a 5.0-meter integral cable terminated with a miniature coaxial ClickLoc™ connector. This extended-reach configuration features a 110 mm overall case length and connects directly to a Proximitor® sensor without requiring an extension cable for short-run installations.

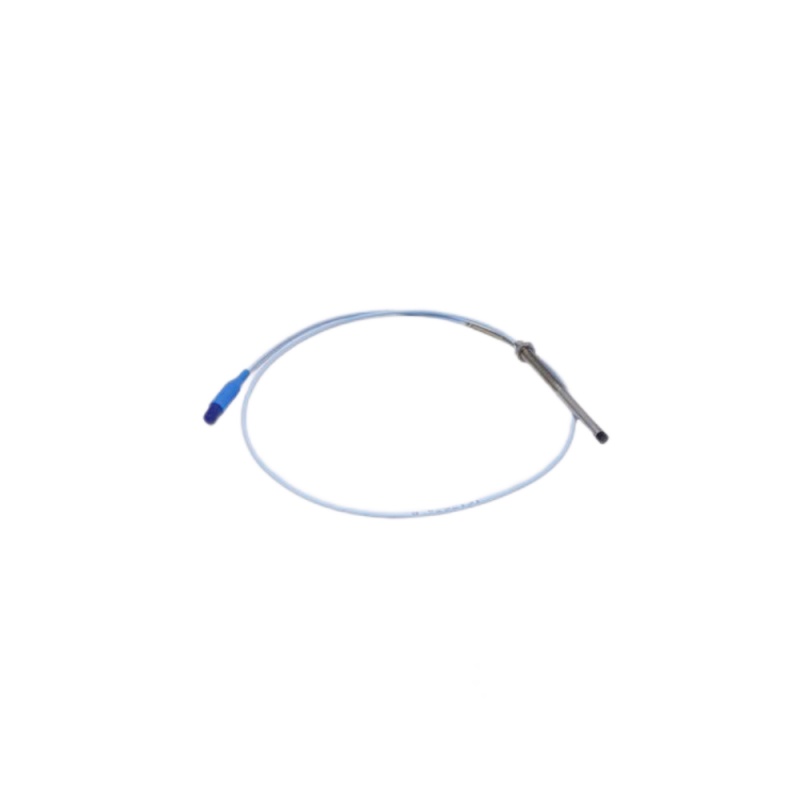

The Bently Nevada 330103-00-03-50-02-00 is a 3300 XL 8 mm proximity probe featuring a metric M10×1 thread and a 5.0-meter integral cable with a miniature coaxial ClickLoc™ connector . This eddy-current sensor is designed for non-contact measurement of radial vibration, axial thrust position, and Keyphasor speed signals on critical rotating machinery such as turbines, compressors, and pumps.

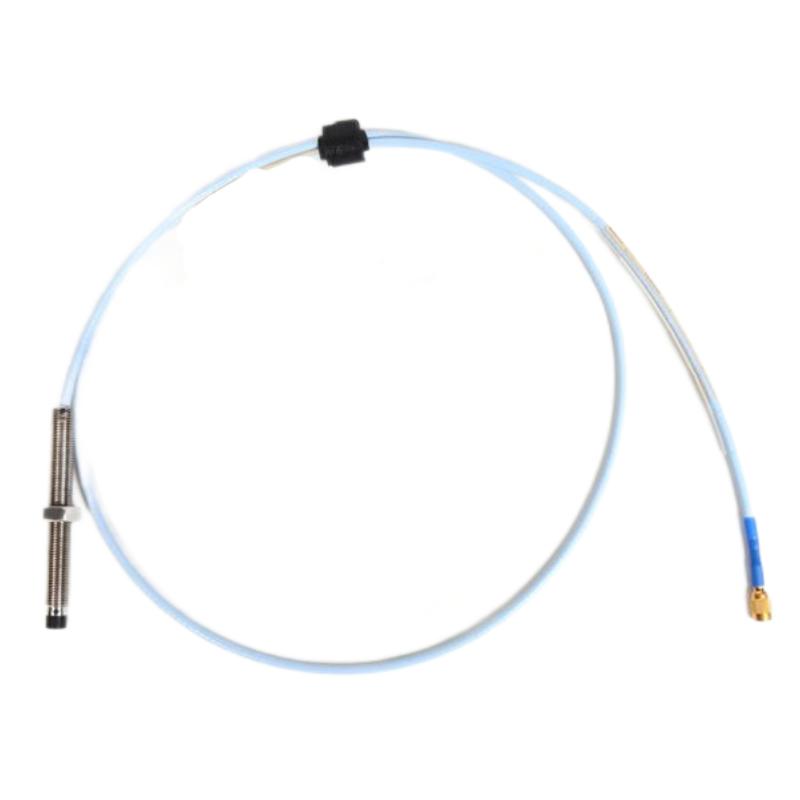

The Bently Nevada 330101-30-60-90-02-00 is a 3300 XL 8 mm proximity probe with a 3/8-24 UNF thread, 3.0-inch unthreaded length, 6.0-inch overall case length, and a 9.0-meter integral cable terminated with a miniature coaxial ClickLoc™ connector . This extended cable length makes it ideal for installations where the Proximitor® sensor is mounted at a significant distance from the machine, such as in large turbine generator sets or remote monitoring cabinets.

The Bently Nevada 330103-00-03-10-02-00 is an 8 mm proximity probe from the 3300 XL series, featuring a metric M10×1 thread for installation in European and Asian standard machinery.This eddy-current sensor provides non-contact displacement measurement for critical rotating equipment such as turbines, compressors, and large motors.

The Bently Nevada 330105-02-12-05-02-05 is an 8 mm reverse mount proximity probe from the 3300 XL series, designed for non‑contact vibration and position monitoring of rotating machinery.
