Key Features
-

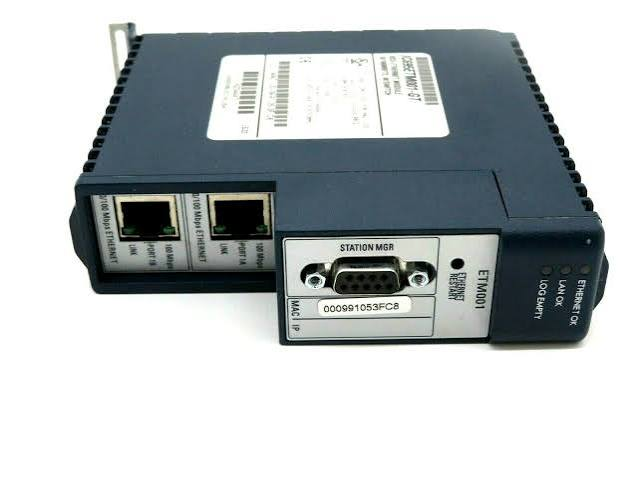

Dual 10/100 Mbps Ethernet Ports – Two auto-sensing RJ-45 ports with automatic speed, duplex, and cable crossover detection
-
Embedded Network Switch – Both ports share a single IP address and MAC address, simplifying network configuration
-
SRTP, Modbus TCP, and EGD Support – Full TCP/IP communication stack for programming, data exchange, and peer-to-peer communication
-
Built-in Station Manager – Dedicated RS-232 serial port for online supervisory access, diagnostics, and troubleshooting without disrupting network traffic
-
Hot Swap Capable – Module replacement without system shutdown (requires firmware version 2.51 or later)
-
Recessed Ethernet Restart Pushbutton – Manually restart Ethernet firmware without cycling power to the entire system
-
Comprehensive LED Indicators – Ethernet OK, LAN OK, Log Empty, and per-port link/speed LEDs for immediate visual status assessment
-
Firmware Upgrade Capable – Updates via WinLoader utility over the serial port or network
Technical Parameters
Core Advantages
1. Dual-Port Embedded Switch Architecture
The IC695ETM001 features an embedded network switch connecting its two Ethernet ports. This design allows daisy-chain connections of multiple devices without external switches, simplifying network topology and reducing hardware costs. Each port auto-negotiates speed (10 or 100 Mbps), duplex mode (half or full), and cable type (straight-through or crossover), eliminating manual configuration errors.
2. Comprehensive Protocol Support
The module implements a full four-layer TCP/IP stack supporting SRTP for programming and configuration services, Modbus TCP Client/Server for integration with third-party systems, and Ethernet Global Data (EGD) for deterministic peer-to-peer data exchange between controllers. EGD allows up to 255 simultaneous exchanges per PACSystems CPU, with SNTP time synchronization for accurate timestamping.
3. Built-in Station Manager for Diagnostics
The dedicated RS-232 Station Manager port provides unrestricted online access to observe internal statistics, exception logs, and configuration parameters. Password-secured commands allow controlled modification of station parameters. The recessed Ethernet Restart pushbutton permits manually restarting the Ethernet firmware without power-cycling the entire system, minimizing downtime during troubleshooting.
4. Hot Swap and High Availability
With firmware version 2.51 or later, the IC695ETM001 supports hot swap capability, allowing module replacement while the system remains operational. This feature is essential for critical applications where system availability is paramount.
5. Seamless RX3i Integration
The module installs in any empty RX3i slot and is compatible with all PACSystems RX3i modules except the CPE400. It enables communication between RX3i controllers and Series 90, VersaMax, and other PACSystems controllers, providing a unified Ethernet network for multi-platform automation systems.
Applications
The IC695ETM001 is deployed across diverse industrial automation applications:
Recommended Models & Related Products
What's Included
Note: Power supply, backplane, I/O modules, and programming software are sold separately.
Why Buy From Us?
-
In Stock – Ready to ship immediately
-
Fully Tested – Each module verified for functionality
-
Warranty Included – Purchase with confidence
-
Technical Support – Compatibility assistance available
Frequently Asked Questions (FAQ)
Q1: What is the GE Fanuc IC695ETM001?
It is an Ethernet Interface Module for the PACSystems RX3i platform. It enables the RX3i controller to communicate with other PACSystems equipment, Series 90, and VersaMax controllers over standard Ethernet networks using SRTP, Modbus TCP, and EGD protocols.
Q2: How many Ethernet ports does the module have?
It provides two auto-sensing 10BaseT/100BaseTX RJ-45 ports for direct connection to IEEE 802.3 networks without an external transceiver.
Q3: Do the two ports have separate IP addresses?
No. The two ports are controlled by an embedded network switch and share a single IP address and MAC address. The module presents one interface to the network.
Q4: What communication protocols are supported?
The module supports SRTP (Service Request Transport Protocol) for programming and configuration, Modbus TCP Client/Server, and Ethernet Global Data (EGD) for peer-to-peer data exchange.
Q5: Does the IC695ETM001 support hot swap?
Yes, with firmware version 2.51 or later. The module can be inserted or removed while the system is powered, allowing replacement without shutdown.
Q6: What is the Station Manager port used for?
The dedicated RS-232 Station Manager port provides online supervisory access for observing internal statistics, exception logs, and configuration parameters. It supports password-secured commands for controlled parameter modification.
Q7: How many EGD exchanges are supported?
Each PACSystems CPU supports up to 255 simultaneous Ethernet Global Data (EGD) exchanges, configured for both produced and consumed data.
Q8: What backplanes are compatible with this module?
Compatible RX3i universal backplanes include IC695CHS007, IC695CHS012, and IC695CHS016.
Q9: Can this module be used with a CPE400 CPU?
No. The IC695ETM001 is compatible with all PACSystems RX3i modules except the CPE400.
Q10: What is the difference between the IC695ETM001 and the IC695ETM001CA?
The IC695ETM001CA is the conformal coated version of the standard IC695ETM001, offering enhanced protection against moisture, dust, and corrosive contaminants in harsh environments.
