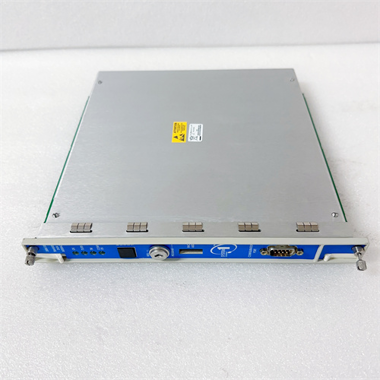

The Bently Nevada 3500/22-01-01-01 is a Transient Data Interface (TDI) Module for the 3500 Machinery Protection System. It serves as the primary communication gateway between the 3500 rack and Bently Nevada’s System 1 condition monitoring software, combining the functions of a Rack Interface Module (RIM) with a high-speed data acquisition processor.
Item No :
3500/22M 138607-01+1Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 3500/22-01-01-01 |
| Product Family | 3500 Machinery Protection System |
| Product Type | Transient Data Interface (TDI) Module |
| Rack Position | Slot 1 (adjacent to power supplies) |
| Keyphasor Inputs | 4 channels |
| Max Speed Range | Up to 20 kHz (multi-event per revolution) |
| Waveform Sampling | Up to 48 channels; synchronous & asynchronous data acquisition |
| Synchronous Sample Rates | 1024/720/512/360/256/128/64/32/16 samples per revolution options |
| Asynchronous Bandwidth | 10 Hz to 30 kHz (800-line spectrum) |
| Communication Interfaces | Ethernet (10Base-T/100Base-TX), RS-232 serial, USB |
| Ethernet Protocols | BN Host Protocol, BN TDI Protocol (System 1) |
| Power Consumption | Approx. 10.5 W |
| Operating Temperature | -30°C to +65°C |
| Humidity | 95% non-condensing |
| Weight | Approx. 0.82 kg (module only) |
| Country of Origin | USA |
| Lifecycle Status | Active / Mature |
Part Number Breakdown (3500/22-01-01-01):
| Segment | Value | Meaning |
|---|---|---|
| 3500/22 | Base model | Transient Data Interface Module |
| -01 | I/O Module Type | Standard TDI I/O configuration |
| -01 | Agency Approval | Standard (no special approvals) |
| -01 | Reserved/Configuration | Standard firmware/feature set |
| Model | Description | Typical Application |
|---|---|---|
| 3500/22-01-01-01 (this model) | Standard TDI, 4 Keyphasor inputs, Ethernet | Standard 3500 rack to System 1 connectivity |
| 3500/22M-01-01-01 | Enhanced M-series TDI with additional dynamic data channels | Advanced transient analysis with M-series monitors |
| 3500/20 | Rack Interface Module (RIM) – legacy predecessor | Legacy systems without transient data needs |
| 3500/25 | Enhanced Keyphasor Module | Dedicated Keyphasor signal processing |
| 3500/40M | Proximitor/Seismic Monitor (M-series) | Radial vibration monitoring with TDI integration |
| 3500/42M | Proximitor/Seismic Monitor (M-series) | Axial position/vibration monitoring with TDI integration |
| 146031-01 | Standard 3500 Terminal Board | Field wiring termination for TDI I/O |
| 288055-01 | TDI I/O Module (paired component) | Required for full rear connections |
Q1: What is the primary function of the 3500/22-01-01-01?
It is a Transient Data Interface (TDI) Module that serves as the communication bridge between the 3500 Machinery Protection System rack and Bently Nevada’s System 1 condition monitoring software. It continuously collects steady-state and transient dynamic data from monitoring modules and transmits it via Ethernet for analysis and diagnostics .
Q2: Is the TDI part of the machinery protection path?
No. The TDI provides certain functions common to the entire rack, but it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection . It is designed for condition monitoring and data collection purposes only.
Q3: What data types does the TDI collect?
The TDI collects:
Static/Steady-State Data: Continuous measurements from monitoring modules
Transient Dynamic Data: Waveform snapshots captured during startup, coast-down, or alarm events
Alarm Data: Pre-alarm and post-alarm waveform data with programmable intervals
Q4: What communication interfaces does this module support?
The TDI provides:
Ethernet (10Base-T/100Base-TX): For System 1 and configuration software communication
RS-232 Serial: Up to 115.2 kbaud for local configuration
USB: Front-panel connection for local diagnostics
Q5: Is the TDI hot-swappable?
In redundant TDI configurations, yes. For single TDI racks, replacement requires a brief shutdown. The TDI resides in Slot 1 (adjacent to power supplies) of the 3500 rack.
