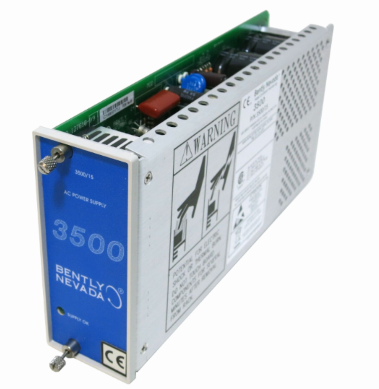

The Bently Nevada 3500/15-02-02-00 is a dual high-voltage AC power supply module designed for the 3500 Series Machinery Protection System. It is a half-height module that provides regulated power to all monitoring modules installed in the 3500 rack, ensuring continuous operation of critical rotating machinery protection systems.
Item No :
3500/15-02-02-00Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 3500/15-02-02-00 |
| Product Family | 3500 Machinery Protection System |
| Product Type | Power Supply Module (Dual Configuration) |
| Top Slot Power Type | High Voltage AC (-02) |
| Bottom Slot Power Type | High Voltage AC (-02) |
| Input Voltage Range | 175 to 264 Vac rms (247 to 373 Vac peak) |
| Nominal Input Voltage | 220 Vac |
| Input Frequency | 47 to 63 Hz |
| Full Rack Current Draw | 2.3 A rms maximum (high voltage AC) |
| Supply Configuration | Dual power supply, redundant operation |
| Redundancy | Yes – lower slot primary, upper slot backup |
| Output Type | Regulated DC power for 3500 rack modules |
| Front Panel Indicator | Supply OK LED (green) |
| Out of Range Protection | Under-voltage: no damage; Over-voltage: PIM fuse opens |
| Installation Position | Left side power supply slots of 3500 rack |
| Module Height | Half-height rack module |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Dimensions (H x W x D) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
| Weight | Approx. 1.39 kg (3.06 lb) |
| Agency Approval | 00 = None |
| Country of Origin | USA |
Part Number Breakdown (3500/15-AXX-BXX-CC):
| Segment | Value | Meaning |
|---|---|---|
| 3500/15 | Base model | Power Supply Module for 3500 Series |
| -A (02) | Top Slot Power | High Voltage AC (175–264 Vac) |
| -B (02) | Bottom Slot Power | High Voltage AC (175–264 Vac) |
| -CC (00) | Agency Approval | None |
| Model | Description | Typical Application |
|---|---|---|
| 3500/15-02-02-00 (this model) | Dual High Voltage AC, no agency approval | Standard 220 Vac redundant power |
| 3500/15-02-00-00 | Single High Voltage AC (top slot only) | Single supply configuration |
| 3500/15-02-02-01 | Dual High Voltage AC with CSA/NRTL/C approval | North American certified installations |
| 3500/15-02-02-02 | Dual High Voltage AC with ATEX/IECEx approval | Hazardous area Zone 2 installations |
| 3500/15-05-05-00 | Dual Universal AC (85–264 Vac), no approval | Wide-range AC input, current generation |
| 3500/15-03-03-00 | Dual High Voltage DC (88–140 Vdc) | DC-powered rack configurations |
| 127610-01 | Legacy AC Power Supply Module | Replacement module for legacy systems |
| 125840-01 | High Voltage AC Power Input Module (PIM) | Required PIM for legacy AC supply |
Q1: What is the primary function of the 3500/15-02-02-00?
It is a power supply module for the Bently Nevada 3500 Machinery Protection System. It converts high-voltage AC input power into regulated DC voltages that power all monitoring modules installed in the 3500 rack, ensuring continuous operation of critical machinery protection systems.
Q2: What input voltage does this module accept?
The -02 option accepts High Voltage AC input of 175 to 264 Vac rms (247 to 373 Vac peak), with a nominal input of 220 Vac at 47 to 63 Hz .
Q3: How does redundant power work with this configuration?
The -02-02 configuration includes two high-voltage AC power supplies: one in the top slot and one in the bottom slot. The lower (bottom) supply acts as the primary, and the upper (top) supply acts as the backup. If the primary supply fails, the backup automatically takes over without interrupting rack operation. Either supply alone can power the full rack.
Q4: Can I replace a power supply while the rack is running?
Yes. The 3500/15 supports hot-swap capability – removing or inserting either power supply module does not disrupt operation of the rack, provided a second power supply is installed .
Q5: What is the difference between the 3500/15-02-02-00 and the newer 3500/15-05-05-00?
The -02 option uses the legacy High Voltage AC power supply (175–264 Vac), while the -05 option uses the current Universal AC power supply (85–264 Vac). The Universal AC version accepts a wider input range and is the current generation product. Legacy and current AC supplies are not compatible – do not mix them in the same rack.
