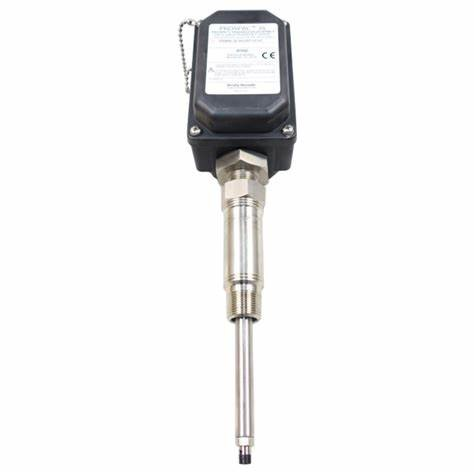

The Bently Nevada 330880-00-0-0-03-02 is a PROXPAC XL Proximity Transducer Assembly from the 3300 XL series, designed for precise shaft displacement and vibration monitoring in critical rotating machinery. This integrated assembly combines a 3300 XL 8mm proximity probe and a Proximitor® sensor within a single, rugged housing, eliminating the need for extension cables and separate sensor housings.
Item No :
330880-00-0-0-03-02Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
5kg| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330880-00-0-0-03-02 |
| Product Family | 3300 XL PROXPAC XL Proximity Transducer Assembly |
| Product Type | Integrated Proximity Transducer Assembly |
| Probe Option | 00 = No probe; Proximitor Sensor without approvals |
| Standoff Adapter | 00 = No standoff adapter |
| Probe Penetration | 0 = No probe sleeve |
| Fittings Option | 03 = Fittings kit included |
| Mounting Thread | 3/4-14 NPT |
| Probe Temperature Range | -60°F to +350°F (-51°C to +177°C) |
| Housing Temperature Range | -60°F to +212°F (-51°C to +100°C) |
| Power Supply (without barriers) | -17.5 Vdc to -26 Vdc |
| Power Supply (with barriers) | -23 Vdc to -26 Vdc |
| Output Resistance | 50 Ω |
| Enclosure Rating | Type 4X, IP66 |
| Housing Material | Polyphenylene Sulfide (PPS) with glass and conductive fibers |
| Weight | Approx. 320 g (unit); 3 kg (shipping) |
| Country of Origin | USA |
| Certifications | ATEX |
Part Number Breakdown (330880-AXX-BXX-CXXX-DXX-EXX):
330880 – PROXPAC XL Proximity Transducer Assembly
A (00) – Probe and Approvals: No probe; Proximitor sensor without approvals
B (0) – Standoff Adapter: No standoff adapter
C (0) – Probe Penetration: No probe sleeve
D (03) – Fittings: Fittings kit included
E (02) – Mounting Thread: 3/4-14 NPT
| Model | Description | Typical Application |
|---|---|---|
| 330880-28-20-45-01-02 | PROXPAC XL with 8mm probe, 2.0" standoff, 4.5" probe length, NPT fitting | Complete assembly with probe for vibration monitoring |
| 330880-28-15-35-00-02 | PROXPAC XL with 8mm probe, 1.5" standoff, 3.5" probe penetration | Standard turbine and compressor applications |
| 330880-28-40-058-01-02 | PROXPAC XL with 8mm probe, 4.0" standoff, 5.8" penetration, IP66 rated | High-temperature turbine environments |
| 330880-00-0-0-03-02 (this model) | PROXPAC XL without probe (sensor only) | Replacement sensor/housing for existing probe installations |
| 330180-12-00 | Spare 3300 XL Proximitor Sensor, 1-meter, non-approved | Sensor replacement for PROXPAC XL |
| 330105-02-12-10-02-00 | Spare 3300 XL 8mm probe, English, non-approved | Probe replacement for PROXPAC XL |
| 3500-51 | 140482-01 | 133835-02 |
| 3500/15 | 3500/45 | 3500/61 |
| 127610-01 | 140072-04 | 133843-02 |
| 125840-01 | 3500/45 | 3500/61 |
| 125840-02 | 135137-01 | 136711-02 |
| 129486-01 | 135145-01 | 3500/61 |
| 129478-01 | 126632-01 | 3500/62 |
| 133292-01 | 139554-01 | 133811-03 |
| 133300-01 | 139567-01 | 3500/62 |
| 3500/20 | 139978-01 | 136491-01 |
| 125744-02 | 139991-01 | 136499-01 |
| 125744-01 | 3500/32 | 136294-01 |
| 135031-01 | 125712-01 | 136483-01 |
| 125768-01 | 125720-01 | 137110-01 |
| 3500/22M | 3500/33 | 3500/64M |
| 138607-01 | 149986-01 | 3500/65 |
Q1: What is the primary function of the 330880-00-0-0-03-02?
It is a PROXPAC XL Proximity Transducer Assembly that provides precise shaft displacement and vibration monitoring for industrial machinery. It operates reliably across wide temperature ranges and harsh environmental conditions, with its rugged IP66-rated enclosure ensuring long-term protection and system stability .
Q2: What makes the PROXPAC XL design different from traditional probe systems?
The PROXPAC XL integrates the 3300 XL 8mm probe and Proximitor sensor into a single housing, eliminating the need for extension cables and separate Proximitor housings. This design reduces installation complexity, minimizes potential failure points, and simplifies maintenance .
Q3: What are the power supply requirements for this assembly?
The assembly requires -17.5 Vdc to -26 Vdc when used without barriers, or -23 Vdc to -26 Vdc when used with barriers. Maximum current consumption is 12 mA .
Q4: What is the recommended gap setting for this transducer assembly?
The recommended gap setting is 1.27 mm (50 mils) or -9 Vdc for radial vibration measurements . This is consistent with standard 3300 XL 8mm system specifications.
Q5: Is this assembly suitable for high-temperature applications?
Yes. The probe tip operates from -51°C to +177°C (-60°F to +350°F), and the housing operates from -51°C to +100°C (-60°F to +212°F). This makes it suitable for most turbomachinery applications including steam and gas turbines.
