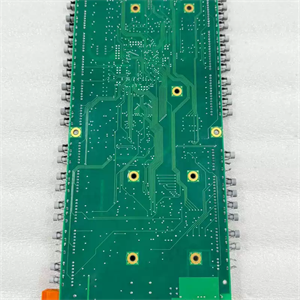

ABB UF C718 AE101 HIEE300936R0101 DCS Module

Products Description

Core Features & Advantages

• Critical Signal Processing Interface: The module's standout feature is its role as the Main Circuit Interface, performing fast signal conditioning and gate signal distribution between the power stage and the control electronics. It manages gates, states, and fault lines safely, ensuring precise timing and hardware protection across its interface buses .

• Multi-System Compatibility: The board is a direct spare part for ABB ACS 1000 medium-voltage AC drives and is also widely used in AC 800PEC power control platforms and UNITROL 6000 generator excitation systems. It handles thyristor firing pulse control and voltage-current feedback processing for power conversion equipment .

• Robust Environmental Protection: The PCB features conformal coating treatment to resist dust, humidity, and harsh electromagnetic interference in power plant and industrial environments. It is designed for stable long-term operation under heavy-duty conditions .

• Legacy Replacement and Evolution: The HIEE300936R0101 replaces older board revisions including EE300936R0101, HIEE300936R0001, and EE300936R0001, providing a clear upgrade path for maintaining existing drive installations .

Typical Applications

The UF C718 AE101 is used as a critical component in ABB medium-voltage drive and excitation systems:

• ACS 1000 Medium Voltage Drives: Main circuit interfacing for industrial motor control centers requiring high-reliability power conversion

• UNITROL 6000 Excitation Systems: Gate signal distribution and voltage/current feedback processing for generator excitation control

• AC 800PEC Power Control: Interface layer for power electronics applications requiring microsecond-level precise switching control

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the UF C718 AE101 HIEE300936R0101?
A: It is a Main Circuit Interface Board that provides signal conditioning, gate signal distribution, thyristor firing pulse control, and voltage/current feedback signal processing for ABB drive and excitation systems .

Q2: Which ABB drive systems is this board compatible with?
A: It is designated as a direct spare part for ABB ACS 1000 medium voltage AC drives and is also used in AC 800PEC and UNITROL 6000 platforms .

Q3: What EPLD software version is pre-installed on this board?
A: The board comes pre-installed with the default EPLD software version MSEE5110 (code: 3BHE006667R0004). Older versions can be ordered separately if required .

Q4: Is the legacy EPLD version MSEE4610 compatible with all AMC boards?
A: No. The older version MSEE4610 is compatible only with AMC-3 board software version MSOC2130. It is not compatible with AMC board software versions MSOC3XXX and MSOH4XXX .

Q5: What are the key installation precautions?
A: Ensure the drive is fully powered down and high-voltage capacitors are discharged before installation. Use ESD protection (grounded wristband) when handling the board. Verify all connectors are free from particulates and seated flush against the chassis .

Q6: Is this product still available?
A: Yes, it is listed as In Stock from various industrial automation suppliers with a 12-month warranty .

Recommended Models & Related Products

The UF C718 AE101 is part of ABB's drive interface board family. Below are related models and components:

Choosing the Right Model

• For ACS 1000 drive maintenance: The HIEE300936R0101 (UF C718 AE101) is the current recommended replacement with the latest EPLD software .

• For legacy systems with older AMC boards: Verify EPLD compatibility. The default MSEE5110 version may require verification against your specific AMC board software version .
