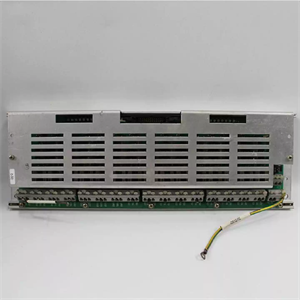

ABB UF C092 BE01 HIEE300910R0001 Binary Input Module

Products Description

Core Features & Advantages

• High-Density and Reliable Isolation: The module’s standout feature is its high-density 16-channel design combined with full galvanic isolation (1500V AC) . This isolation effectively blocks ground loops, electrical noise, and voltage surges from the field side, protecting the sensitive control system backplane in harsh industrial environments such as power plants and large drive cabinets .

• Fast Response and SOE Capability: With a response time of ≤1 ms, the module supports Sequence of Events (SOE) recording, making it suitable for critical fault diagnosis and event sequence analysis in power generation and process industries .

• Robust Backplane Bus Communication: The module communicates via the ModuleBus backplane (Infi 90/Symphony/Advant), ensuring deterministic data transfer to the controller. It features onboard non-volatile memory for persistent channel configuration and supports firmware updates without board removal .

• Built-in Signal Filtering and Debounce: Internal hardware RC filtering and digital debounce logic suppress contact chatter and electrical bounce from field switches, preventing false status triggers and improving system reliability .

Typical Applications

The HIEE300910R0001 is widely used in legacy ABB control systems across heavy industries :

• Power Generation: Generator excitation systems (UNITROL), substation automation, and balance-of-plant monitoring

• High-Voltage Drives: ACS 1000 / ACS 2000 drive systems for status feedback and interlocking

• Oil & Gas / Petrochemical: Compressor status monitoring, safety interlock signal acquisition

• Metallurgy and Mining: Rolling mill control and conveyor system interlocking

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the UF C092 BE01?
A: It is a Binary Input Module that acquires discrete field signals (dry contacts, limit switches, relay status) and converts them into digital data for the ABB control system to process, enabling equipment status monitoring and logic control .

Q2: How many input channels does this module have?
A: According to the most detailed source, the module has 16 digital input channels with 24V DC, opto-isolated, and ≤1 ms response time . Note: Some sources claim 8 or 32 channels, which likely reflect different revisions or misinformation. The 16-channel specification is consistent with the “BE01” designation and should be verified against your specific system documentation.

Q3: Is the UF C092 BE01 still in production?
A: No. It is a discontinued legacy DCS spare part. Availability is primarily through surplus, refurbished, or new-old-stock channels from third-party suppliers .

Q4: What is the difference between UFC092 BE01 and other UFC092 variants?
A: The “BE01” suffix denotes the B-base revision. Other variants (e.g., KUC321 AE01 with “A” base) are not directly interchangeable with the B-base version. Always verify the complete board identifier and revision before replacement .

Q5: Can this module be hot-swapped?
A: No. The module does not support live insertion. Power to the subrack backplane and field input circuits must be disconnected before inserting or removing the board to prevent contact arcing and logic bus disruption .

Q6: How does the module handle contact bounce?
A: It uses internal hardware RC filtering and digital debounce timing to process incoming binary signal transitions, suppressing false status triggers from field switch chatter before data is sent to the controller .

Q7: What are the key installation precautions?
A: De-energize all rack backplane power and field input circuits. Wear an ESD wrist strap. Align the board with subrack guide rails and slide firmly until the edge connector seats completely. Fasten retaining screws to 0.4 Nm to prevent loosening from vibration .

Q8: What should I check if a channel fails to register state changes?
A: Verify field sensor voltage levels, inspect terminal block wiring, confirm the channel is correctly mapped in the controller software, and check for EMI sources near signal routing. Ensure proper shielding and cabinet grounding .

Recommended Models & Related Products

The UF C092 BE01 is part of ABB’s legacy DCS I/O family. Below are related models for similar or complementary needs:

Choosing the Right Model

• For existing legacy DCS systems: The HIEE300910R0001 (UF C092 BE01) is the correct spare part for Infi 90, Symphony, TPS, and Advant platforms requiring B-base binary input modules .

• For system upgrades: Consider migrating to ABB’s AC 800M platform with PM864A/PM865 controllers and S800 I/O modules for modern support and enhanced functionality .

• For verification: Always cross-reference the complete board identifier (including revision) and confirm compatibility with your specific system version before ordering .
