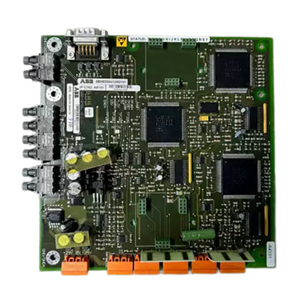

ABB UF C762 AE101 3BHE006412R0101 DCS Module

Key Parameters

Core Features & Advantages

• CVMI Signal Processing Capability: The module’s standout feature is its role as a CVMI (Converter Voltage Measurement Interface) board, handling voltage signal acquisition, conditioning, and interfacing for ABB medium/high-power drive applications. It ensures accurate voltage monitoring and system feedback for safe and efficient converter/inverter operation.

• High-Precision Control & Fast Response: With control accuracy reaching ±0.1% to ±0.2% FS, the module enables precise control of servo motor speed, position, and torque. A quad-core processor supports a 0.5-second measurement and control cycle, suitable for dynamic adjustment of pumps, fans, and compressors.

• Multi-Protocol Communication Flexibility: The module supports a wide range of industrial communication protocols including PROFIBUS, PROFINET, EtherCAT, Modbus RTU/TCP, and Ethernet. Dual-port EtherCAT enables redundant network topologies, while PROFIBUS supports up to 125 nodes per segment for large-scale automation systems.

• Robust Design for Harsh Environments: Built for industrial reliability, the module operates from -25°C to +70°C, resists 5g vibration, and has an MTBF of 350,000 hours. Built-in galvanic isolation protects against electrical interference, and modular connectors allow for efficient maintenance.

Typical Applications

The UF C762 AE101 is widely used in industrial automation and power electronics applications:

• Drive System Control: Voltage measurement and signal processing in ABB ACS800/ACS880 drive systems

• Servo Motor Control: Speed, position, and torque control for robotics, CNC machine tools, and automated assembly lines

• Process Automation: Temperature, pressure, and flow monitoring in chemical, petroleum, and power generation facilities

• Heavy Industry: Steel mills, chemical plants, and conveyor synchronization applications

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the UF C762 AE101?
A: It is a CVMI (Converter Voltage Measurement Interface) board that measures and conditions converter voltage signals, then sends the processed signals to the system’s control logic. It is also used as a servo controller for precise motor control in ABB drive systems.

Q2: Which ABB drive systems is this module compatible with?
A: It is commonly used with ABB ACS800 and ACS880 drive systems, and certain DCS platforms. It integrates with ABB AC800M controllers and DSQC robot interface modules for complete system solutions.

Q3: Does this board require calibration after installation?
A: No. The board is factory-calibrated. However, it is recommended to perform on-site verification during commissioning to ensure correct operation.

Q4: What should I check if the board shows a fault (red LED) after installation?
A: First, verify the board is inserted in the correct slot. Then, read the fault code via the system maintenance terminal. If the fault indicates “Communication Loss,” check the slot connector pins for bending or poor contact.

Q5: Can this board be repaired on-site?
A: No. The board’s internal logic and components are highly integrated, and on-site soldering repair is not recommended. If confirmed faulty, replacement with a genuine spare is recommended to ensure system safety.

Q6: What is the difference between the CVMI board and a standard servo controller?
A: The CVMI board specifically handles voltage measurement and signal conditioning for converter applications. A servo controller focuses on motor speed, position, and torque control. Some sources describe this module as serving both roles depending on the system configuration.

Q7: What are the key installation precautions?
A: Always disconnect system power and ensure internal capacitors are discharged before installation. Wear an anti-static wrist strap when handling the board. Ensure the board is firmly seated in the backplane connector and that grounding is properly established to minimize common-mode noise.

Recommended Models & Related Products

The UF C762 AE101 is part of ABB’s drive control module family. Below are related models and components:

Choosing the Right Model

• For ABB drive system maintenance: The UF C762 AE101 (3BHE006412R0101) is the correct CVMI board for voltage measurement and signal processing in ACS800/ACS880 drive applications.

• For complete system integration: Pair with AC800M controllers and DSQC robot interface modules for comprehensive automation solutions.

• For system upgrades: Consider ABB’s newer drive platforms for enhanced functionality and long-term support.
