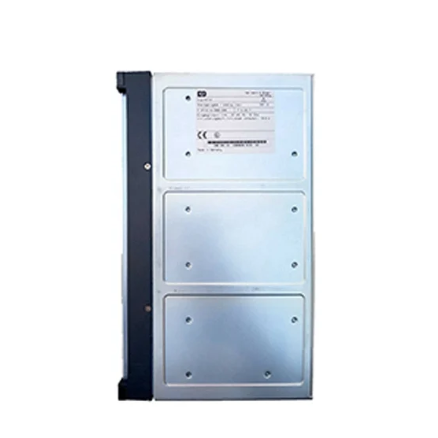

ABB DDO01 Digital Output Module

Key Features

• 16 Isolated Digital Output Channels – Provides reliable switching for discrete field devices

• Optical Isolation Between Channels – Suppresses noise and interference for dependable signal transmission

• Watchdog Timer – Built-in output timeout reset function enhances system safety

• Hot Swap Capable – Supports module replacement without system shutdown

• Fast Response Time – <1 ms typical switching response

• Seamless System Integration – Compatible with Freelance 2000 module bus

• Diagnostic Functionality – Supports real-time output status monitoring

Technical Specifications

Core Advantages

1. Proven Reliability in Critical Process Control

The DDO01 is engineered for demanding industrial environments where failure is not an option. Its optical isolation between channels and watchdog timer functionality ensure stable operation even under high-noise and vibration conditions . This design philosophy prioritizes safety and reliability over channel density.

2. Seamless Legacy System Integration

For facilities running ABB Freelance 2000 DCS, the DDO01 provides a direct, compatible replacement solution. It integrates seamlessly with the existing module bus and supports the same configuration and monitoring workflows, minimizing downtime during maintenance or replacement .

3. Enhanced Diagnostic Capabilities

The module offers real-time output status monitoring, allowing operators to verify channel states remotely. This facilitates faster fault identification and reduces troubleshooting time in the field .

4. Maintenance-Friendly Design

With hot-swap capability, the DDO01 can be replaced while the system remains operational. This feature is particularly valuable in continuous process industries where unplanned shutdowns carry significant costs .

5. Robust Construction

Built with high-quality materials and subjected to strict quality control, the DDO01 delivers dependable long-term performance. Its durable construction ensures stable operation in harsh industrial settings .

Applications

The ABB DDO01 is deployed across a range of critical industrial applications:

Recommended Models & Compatible Components

Related Output Modules

• DDO02 – Higher-density output module (for comparison)

• DDO03 / DDO04 – Alternative output modules in the Freelance series

Important: Always verify the physical nameplate and rack configuration before ordering. The DDO01 is a legacy product; confirm system compatibility with your specific Freelance 2000 installation .

What's Included

• 1 × ABB DDO01 Digital Output Module

Note: System cable (0336332), mounting rack, and programming software are sold separately.

Why Buy From Us?

• New and Original – Genuine ABB module, not refurbished

• In Stock – Ready to ship same/next business day

• Fully Tested – Each unit verified for functionality

• Warranty Included – Purchase with confidence

• Technical Support – Integration assistance available

Frequently Asked Questions (FAQ)

Q1: What is the ABB DDO01?

The ABB DDO01 is a 16-channel digital output module for the ABB Freelance 2000 distributed control system. It controls discrete field devices such as relays, solenoid valves, and indicator lights based on commands from the DCS controller .

Q2: Which system is the DDO01 compatible with?

The DDO01 is designed for the ABB Freelance 2000 DCS (formerly Hartmann & Braun Freelance 2000). It communicates via the Freelance 2000 module bus .

Q3: How many output channels does the DDO01 provide?

The DDO01 provides 16 isolated digital output channels, numbered 0–15 .

Q4: What is the output voltage and current rating?

Each channel provides 24V DC output at a maximum of 0.5A per channel .

Q5: Does the DDO01 support hot swapping?

Yes, the module supports hot swap capability, allowing replacement without system shutdown .

Q6: What cable is required for the DDO01?

The DDO01 requires system cable 0336332 for connection via connector X101. Do not interchange with cables intended for other module types .

Q7: What is the typical response time?

The module has a response time of <1 ms .

Q8: Does the DDO01 have diagnostic capabilities?

Yes. The module supports real-time output status monitoring, facilitating remote configuration and historical recording. It also features a watchdog timer for output timeout reset .

Q9: Is the DDO01 a current production item?

No. The DDO01 is a legacy/obsolete product available as a spare part for existing Freelance 2000 installations . This unit is new and original stock.

Q10: What is the isolation rating?

The DDO01 provides optical isolation between channels to suppress noise and interference .

Q11: What is the operating temperature range?

The module operates from -20°C to +60°C .

Q12: What should be verified before installation?

Always verify the physical nameplate, rack configuration, system cable, and host system compatibility before installation or replacement. Consult ABB documentation and site procedures for proper commissioning .
