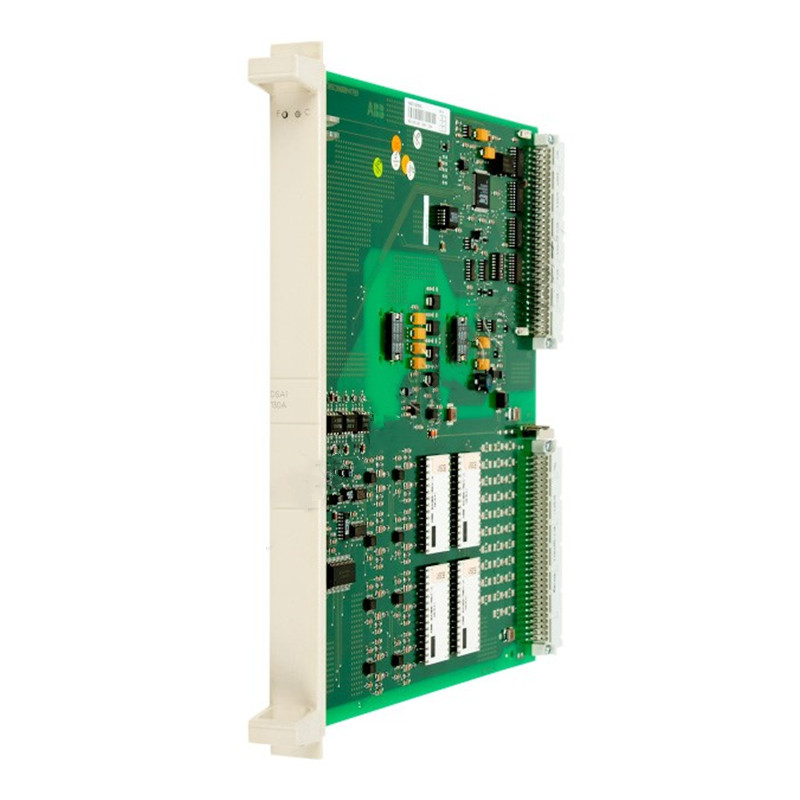

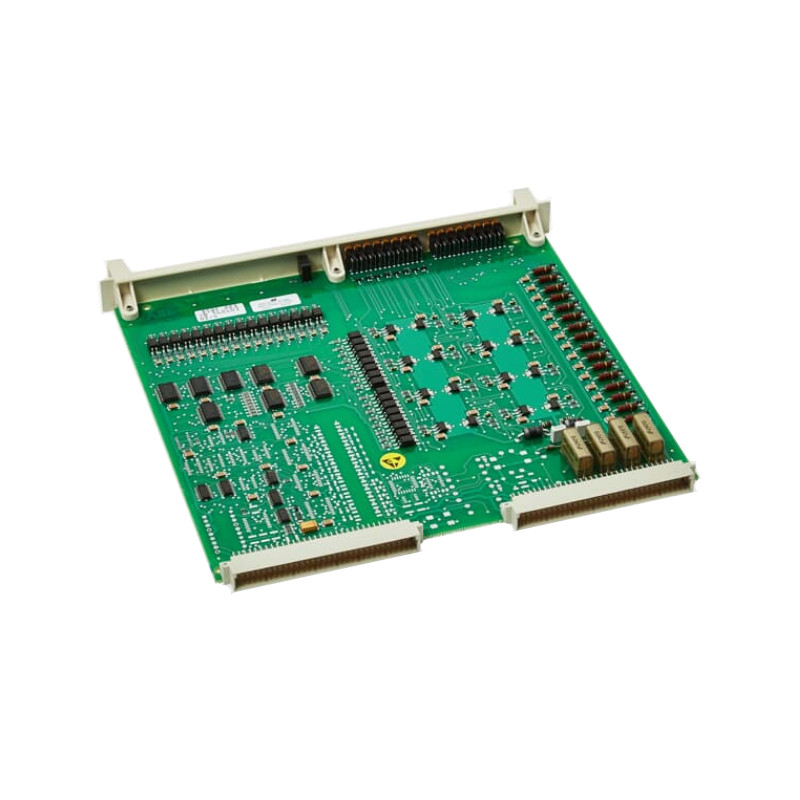

ABB DDI01 Digital Input Module (3BSE018597R1)

Core Advantages

• High-Density 16-Channel Design: The module provides 16 independent digital input channels in a compact form factor, maximizing I/O density and reducing cabinet space requirements. Channels are organized in two groups of 8, each with its own reference potential terminal for flexible wiring configurations .

• Advanced Galvanic Isolation: Each channel features optical isolation between the field side and the backplane bus, with isolation voltage up to 500 V AC (1-minute withstand). This effectively blocks high-voltage transients and ground loops from damaging the control system, ensuring reliable signal transmission even in electrically noisy industrial environments .

• Comprehensive Diagnostic Capabilities: The module is equipped with per-channel LED indicators for visual status monitoring, allowing technicians to identify active signals, lost signals, or wiring faults at a glance without connecting a laptop. Channel-level open-circuit and short-circuit detection further enhances preventive maintenance capabilities .

• Hot-Swap Support: When used with compatible S800 I/O terminal units, the DDI01 supports hot-swap replacement, allowing module changes without interrupting system operation. This significantly reduces mean time to repair (MTTR) and improves overall system availability .

• Seamless System Integration: Designed for native compatibility with ABB‘s Control Builder M engineering software, the module supports channel-level configuration including custom naming, filter time settings, and diagnostic alarm parameters, enabling highly customized applications .

• Wide Voltage Tolerance: The module accepts 24 V DC nominal input (operating range 18–30 V DC), providing flexibility for various field device power configurations and reducing the need for additional signal conditioning equipment .

Technical Specifications

Application Scenarios

The ABB DDI01 is essential in various industrial automation systems requiring precise and reliable digital signal acquisition:

• Power Generation: Monitoring auxiliary equipment status, breaker positions, and alarm contacts in thermal power plants and substations. The module’s high noise immunity ensures reliable operation in electrically noisy switchgear environments .

• Chemical and Petrochemical: Capturing valve position feedback, pump status, and safety interlock signals in process control systems where reliable signal acquisition is critical for plant safety .

• Water Treatment Facilities: Monitoring pump station status, valve positions, and equipment alarms in water and wastewater treatment plants, supporting remote SCADA integration .

• Manufacturing Automation: Machine tool diagnostics, conveyor system monitoring, and robotic cell control where fast response time and high channel density are essential .

• Safety Instrumented Systems: Emergency shutdown (ESD) and safety interlock applications where isolated inputs and diagnostic capabilities are required for SIL-rated loops .

• Building Automation: Monitoring door/window status, fire alarm contacts, and HVAC equipment states in intelligent building management systems .

What Is Included

• 1 × ABB DDI01 Digital Input Module (3BSE018597R1)

• Original Factory Packaging (New & Original)

Before You Buy

• Stock Status: In Stock – Ready for immediate dispatch.

• Condition: New and Original. Each unit is 100% tested and verified before shipping.

• Compatibility Note: The DDI01 is designed for use with S800 I/O Terminal Units (TU). Please verify that your existing terminal unit is compatible before ordering. The module requires Control Builder M software for configuration .

• Installation: Installation must be performed by qualified technicians. Ensure all power sources are disconnected before installation. Follow proper grounding practices for EMC compliance .

• Warranty: Comes with a standard 12-month warranty covering defects in materials and workmanship.

Frequently Asked Questions

Q: What does the model number DDI01 3BSE018597R1 represent?
A: The model number breaks down as follows: DDI01 = Digital Input Module for S800 I/O systems; 3BSE018597R1 = ABB’s specific ordering number for this 16-channel configuration .

Q: What is the difference between the DDI01 and DI01 modules?
A: The DDI01 is the legacy designation, while DI01 (3BSE008514R1) is the modern S800 I/O equivalent. Both are 16-channel digital input modules; the DI01 represents the current production version with similar specifications .

Q: What types of sensors can be connected to this module?
A: The DDI01 supports both dry contact (passive) and wet contact (24 V DC active) inputs. Compatible field devices include pushbuttons, limit switches, relay contacts, proximity sensors (PNP type), and photoelectric sensors .

Q: What is the function of the per-channel LED indicators?
A: Each channel has an independent LED indicator. Green (or yellow) illuminated indicates an active signal (logic “1”), while off indicates no signal (logic “0”). This enables quick visual troubleshooting without software tools .

Q: Does this module support hot-swapping?
A: Yes, the DDI01 supports hot-swap replacement when used with compatible S800 I/O terminal units. This allows module replacement without interrupting system operation, minimizing downtime .

Q: What configuration software is required for this module?
A: The module is configured using ABB‘s Control Builder M engineering software, which allows channel naming, filter time configuration, and diagnostic alarm setup .

Q: How fast can you ship this module?
A: As this is a stock item, we typically ship within 24 hours of order confirmation via global express services like DHL or FedEx.

Recommending Models

The ABB DDI01 works seamlessly with the following ABB automation components:

• DI01 (3BSE008514R1): Modern S800 I/O equivalent of the DDI01, providing the same 16-channel digital input functionality for current system builds .

• DO01: Digital Output Module for controlling relays, solenoid valves, and indicator lamps, complementing the DDI01 in complete I/O configurations .

• DCP02: Analog Input Module for temperature, pressure, and flow measurement, expanding the system’s signal acquisition capabilities .

• PM802F: AC 800M Controller for processing signals from the DDI01 and executing control logic .

• S800 I/O Terminal Units: Various terminal unit options (TU) for field wiring connections, including screw terminal and spring clamp versions.

• Control Builder M: ABB’s engineering software for configuring and programming the DDI01 and other S800 I/O modules .
