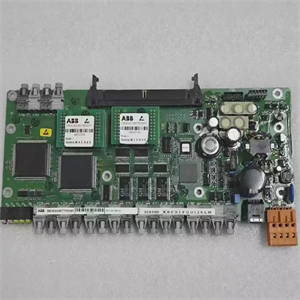

ABB PPC907BE 3BHE024577R0101 DCS Module

Products Description

Core Features & Advantages

• High-Speed Control for Medium-Voltage Drives: The module’s standout feature is its multi-core processor architecture, enabling parallel execution of complex real-time control tasks. It supports ABB’s proprietary Direct Torque Control (DTC) and vector control algorithms, ensuring precise motor control with fast dynamic response for high-power applications such as cement mills, mining hoists, and large compressors .

• Fiber-Optic Communication for High-Voltage Safety: The PPC907BE integrates fiber-optic interfaces for communication with power stage modules (IGBT/IGCT drivers). This provides complete galvanic isolation between the low-voltage control electronics and the high-voltage power section, ensuring signal integrity in electrically noisy environments and protecting sensitive control circuits .

• Redundancy and High Availability: The module supports hardware-level redundancy configurations, including dual hot-standby operation. In critical applications such as power generation and heavy industry, this allows seamless switchover to a backup processor without process interruption, maximizing system availability .

• Robust Industrial Design for Harsh Environments: The PCB features varnish coating for resistance against humidity, dust, and corrosive contaminants. The module is designed for reliable operation in demanding industrial environments with a wide operating temperature range .

Typical Applications

The PPC907BE is used as the core control component in demanding power and industrial applications :

• Medium-Voltage Drives: Core control board for ABB ACS2000 drives in cement plants (grinding mills), mining hoists, and large pump/fan applications.

• Generator Excitation Systems: Executes AVR (Automatic Voltage Regulator) algorithms, PSS (Power System Stabilizer) functions, and excitation limiters in UNITROL 6000 systems for thermal, hydro, and gas turbine generators.

• Power Electronics: High-voltage inverter control and rectifier bridge management in industrial power conversion systems.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the PPC907BE (3BHE024577R0101)?
A: It is a high-performance control logic processor module for ABB medium-voltage drives (ACS2000 series), AC 800PEC platforms, and UNITROL 6000 excitation systems. Its role is to execute complex control algorithms (DTC, vector control, AVR), manage signal processing, and coordinate system communication .

Q2: Which ABB drive systems is this module compatible with?
A: It is primarily used with ABB ACS2000 medium-voltage drives (Frames 1, 2, and 3) and is also compatible with AC 800PEC and UNITROL 6000 platforms .

Q3: Is the PPC907BE still in production?
A: It is available as a spare part from third-party suppliers. As a legacy component for ACS2000 drives, availability is primarily through surplus or refurbished channels .

Q4: What communication interfaces does the module support?
A: It supports CAN bus, Ethernet, and Modbus, along with fiber-optic interfaces for high-speed communication with power stage modules .

Q5: What is the significance of the fiber-optic interface?
A: The fiber-optic interface provides complete galvanic isolation between the low-voltage control electronics and the high-voltage power section. This ensures signal integrity in high-EMI environments and protects sensitive control circuits from power-stage transients .

Q6: Does the module support redundancy?
A: Yes. The PPC907BE supports dual hot-standby redundancy configurations, enabling seamless switchover to a backup processor without process interruption for critical applications .

Q7: What are the key technical specifications?
A: The module operates on 24 VDC and supports an operating temperature range of -20°C to +70°C. It features varnish-coated PCB protection and is designed for medium-voltage drive applications (typically 4 kV class) .

Recommended Models & Related Products

The PPC907BE is part of ABB’s drive control module family. Below are related models and components:

Choosing the Right Model

• For ACS2000 medium-voltage drive maintenance: The PPC907BE (3BHE024577R0101) is the correct control logic processor module for restoring drive control functions .

• For excitation system applications: Consider the PCD231B101 for excitation control interface functions or the PCD235C101 for FPGA-based control with high-density I/O .

• For system upgrades: Consult ABB for migration options to newer drive platforms with active support and enhanced functionality.
