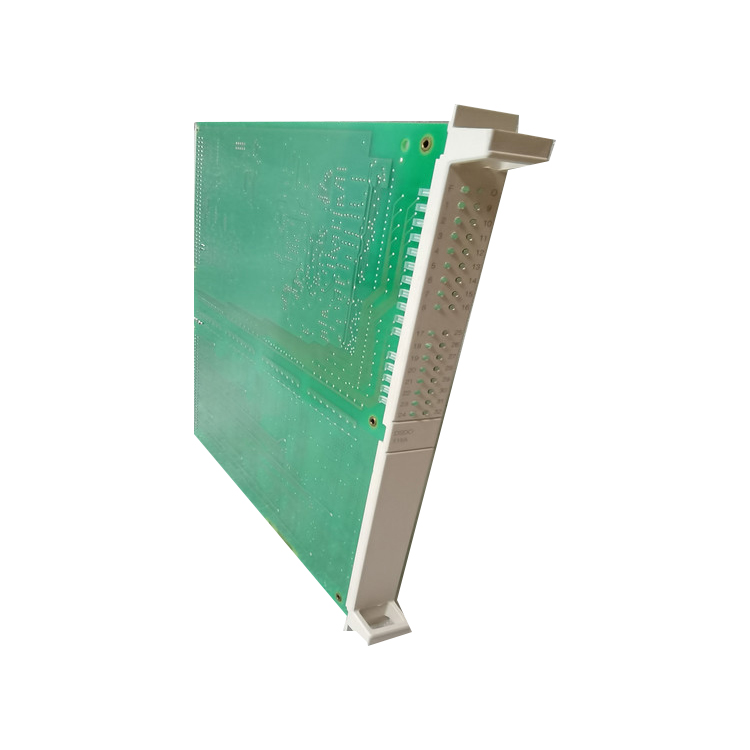

ABB NDIO-02 Digital I/O Extension Module

Core Advantages

• Flexible I/O Expansion: The module provides configurable digital inputs and outputs to expand system control capabilities. Channel counts vary by configuration, with options ranging from 8 DI/8 DO to 16 DI/16 DO depending on the specific application requirements .

• Advanced Communication Interfaces: The NDIO-02 supports multiple communication protocols including RS-232, RS-485, and Modbus RTU, ensuring robust data transmission over long distances and seamless integration with PLC and SCADA systems .

• Galvanic Isolation Protection: The module features optical isolation between field circuits and the drive system, effectively blocking electrical noise and ground loops from affecting sensitive control electronics. This is critical in high-EMI industrial environments with large motors and switching equipment .

• Compact and Space-Saving Design: With dimensions of approximately 45 × 75 × 108 mm and a weight of 0.5 kg, the module minimizes cabinet space requirements while maximizing I/O density .

• Hot-Swap Capability: The module supports hot-swapping, allowing replacement without interrupting system operation. This significantly reduces mean time to repair (MTTR) and improves overall system availability .

• Robust Industrial Construction: Built to withstand harsh industrial environments, the module operates reliably within a wide temperature range and features durable materials for long-term reliability .

Technical Specifications

Application Scenarios

The ABB NDIO-02 is essential in various industrial automation systems requiring reliable digital signal expansion:

• Conveyor Systems: Expands I/O capacity for multi-zone conveyor control requiring additional start/stop stations, emergency stops, and zone interlocks. The isolated inputs prevent false triggering from motor switching transients .

• Pump & Fan Control: Provides interface points for pressure switches, flow sensors, and level transmitters in HVAC and water treatment systems. Output channels control pilot lights, alarm annunciators, and auxiliary contactors .

• Machine Tool Automation: Connects CNC machine tools and automated production equipment to ACS drives, enabling coordinated motion control with external PLC systems .

• Crane & Hoist Applications: Interfaces with limit switches, overload sensors, and operator pendant controls in overhead crane systems .

• Process Industry Integration: Bridges ACS drives with DCS and SCADA systems in chemical, pharmaceutical, and food processing facilities .

• Packaging Lines: Provides additional I/O for registration mark detection, product sensors, and reject mechanisms in high-speed packaging equipment .

What Is Included

• 1 × ABB NDIO-02 Digital I/O Extension Module

• Original Factory Packaging (New & Original)

Before You Buy

• Stock Status: In Stock – Ready for immediate dispatch.

• Condition: New and Original. Each unit is 100% tested and verified before shipping.

• Compatibility Note: The NDIO-02 is designed for specific ABB drive and PLC platforms. Please verify your system compatibility before ordering. The module requires configuration through the drive's control panel or DriveWindow PC software .

• Installation: Installation must be performed by qualified technicians. The module installs in dedicated expansion slots within ACS600 and ACS800 drive cabinets, connecting to the NAMC control board via pre-terminated fiber optic cables .

• Warranty: Comes with a standard 12-month warranty covering defects in materials and workmanship .

Frequently Asked Questions

Q: What is the ABB NDIO-02 used for?
A: The NDIO-02 is a digital I/O extension module that expands the control capabilities of ABB ACS800 and ACS600 drives, as well as AC500 PLC systems. It provides additional configurable digital inputs and outputs for connecting more sensors, actuators, and field devices .

Q: Which ABB drive systems are compatible with the NDIO-02?
A: The module is compatible with ABB ACS800 and ACS600 series variable frequency drives, as well as AC500 PLC systems. It integrates via NAMC control boards using DDCS fiber optic communication .

Q: What communication interfaces does the NDIO-02 support?
A: The module supports RS-232 and RS-485 for remote I/O communication, with Modbus RTU protocol support for robust data transmission over long distances. It also features DDCS fiber optic link for drive integration .

Q: What is the function of the galvanic isolation in this module?
A: The 500V galvanic isolation between channels and the drive system prevents electrical noise and ground loops from affecting sensitive control electronics. This is critical in high-EMI industrial environments with large motors and switching equipment .

Q: Does the NDIO-02 support hot-swapping?
A: Yes, the module supports hot-swapping when used with compatible systems. This allows module replacement without interrupting system operation, reducing maintenance downtime .

Q: What software is required to configure the NDIO-02?
A: Configuration occurs through the drive's control panel or DriveWindow PC software. Each I/O point can be mapped to specific drive parameters and control functions .

Q: How fast can you ship this module?
A: As this is a stock item, we typically ship within 24 hours of order confirmation via global express services like DHL or FedEx.

Recommending Models

The ABB NDIO-02 works seamlessly with the following ABB automation components:

• ACS800 Drive Series: Variable frequency drives that utilize the NDIO-02 for I/O expansion in single and multi-drive configurations .

• ACS600 Drive Series: Legacy drive platform compatible with the NDIO-02 for additional I/O capacity .

• NAMC-11/NAMC-11C Control Boards: Drive control boards that interface with the NDIO-02 via DDCS fiber optic communication .

• ABB AC500 PLC: Programmable logic controller platform that can be expanded with the NDIO-02 for additional digital I/O .

• DriveWindow Software: ABB's PC-based engineering software for configuring the NDIO-02 and mapping I/O points to drive parameters .
