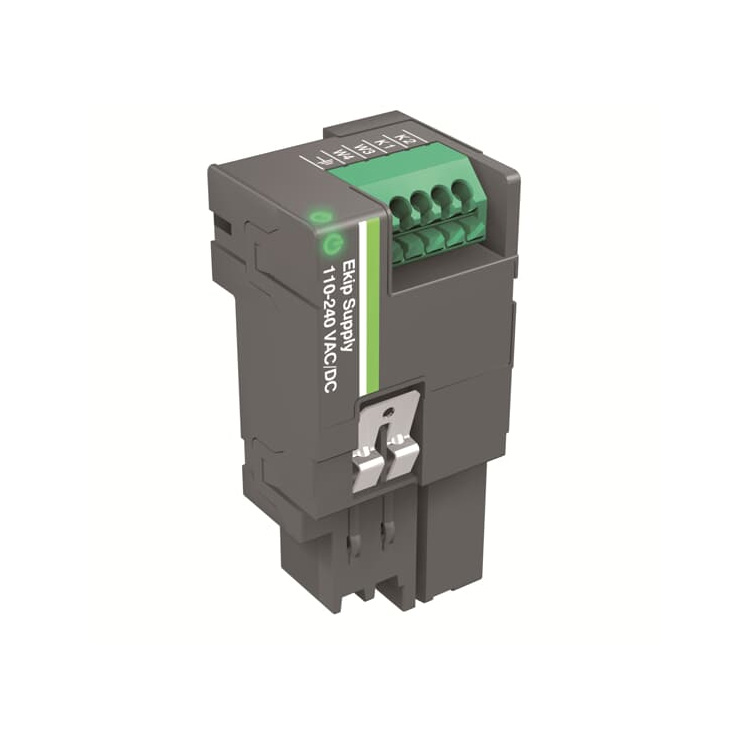

ABB Ekip Supply 110-240VAC/DC Module (1SDA074172R1)

Core Advantages

• Wide Input Voltage Range: The module accepts 110-240V AC/DC input, providing exceptional flexibility for various power supply conditions. This wide-range capability eliminates the need for voltage-specific variants and simplifies procurement for global projects.

• Critical for Communication Modules: The Ekip Supply is mandatory when communication modules are installed, whether internal or external. Without this auxiliary power supply, the Ekip trip unit cannot maintain communication with supervisory systems when the main circuit is not energized.

• Seamless Integration: Designed specifically for ABB's circuit breaker platforms, the module mounts directly in the terminal box and permits the installation of other advanced modules. It can be field-installed at any time, making it ideal for system upgrades and retrofits.

• Comprehensive Compatibility: The Ekip Supply is compatible with Emax 2 circuit breakers (E1.2, E2.2, E4.2, E6.2) and Tmax XT series breakers (XT2, XT4, XT5, XT7, XT7M). This broad compatibility ensures a single module type can serve multiple breaker frames across a facility.

• Compact and Lightweight: With a net weight of just 0.05 kg and compact dimensions, the module minimizes space requirements while delivering reliable power to critical protection and control devices.

• Standards Compliance: The module complies with IEC standards and carries CE, RoHS, REACH, ATEX, VDE, and WEEE certifications, ensuring compliance with international electrical equipment safety and environmental regulations.

Technical Parameters

Application Scenarios

The ABB Ekip Supply 110-240VAC/DC is essential in various industrial and commercial power distribution systems requiring reliable circuit breaker protection:

• Main Incomer Breakers: Provides auxiliary power to Ekip trip units on main incoming circuit breakers in low-voltage switchgear panels, ensuring protection functions remain active even when the main circuit is de-energized.

• Generator Protection: Enables independent power supply to protection relays on generator circuit breakers, ensuring continuous monitoring and protection during generator startup and shutdown sequences.

• Data Center Power Distribution: Supports critical power distribution boards where Ekip trip units must remain energized independent of load current, ensuring continuous protection and communication with building management systems.

• Industrial Automation Control Systems: Provides reliable auxiliary power for Ekip UP units and communication modules in automated manufacturing facilities, enabling remote monitoring and control of circuit breakers.

• DC Busbar Installations: The wide-range AC/DC input makes the module ideal for DC-powered installations, including battery-backed systems and renewable energy applications.

• System Upgrades and Retrofits: The field-installable design allows existing installations to be upgraded with communication capabilities without replacing the entire circuit breaker.

What Is Included

• 1 × ABB Ekip Supply 110-240VAC/DC Module (1SDA074172R1)

• Original Factory Packaging (New & Original)

Before You Buy

• Stock Status: In Stock – Ready for immediate dispatch.

• Condition: New and Original. Each unit is 100% tested and verified before shipping.

• Compatibility Note: The Ekip Supply is required when installing communication modules on Emax 2 or Tmax XT circuit breakers. For Ekip UP, only the 24-48V DC version (1SDA074173R1) is suitable. Please verify your circuit breaker model and trip unit type before ordering.

• Installation: Installation must be performed by qualified technicians. The module mounts in the circuit breaker terminal box. Ensure all power sources are disconnected before installation.

• Warranty: Comes with a standard 12-month warranty covering defects in materials and workmanship.

Frequently Asked Questions

Q: What does the model number 1SDA074172R1 represent?
A: The part number 1SDA074172R1 is ABB's specific ordering code for the Ekip Supply module with 110-240V AC/DC input, compatible with Emax 2 E1.2 through E6.2 and Tmax XT series circuit breakers.

Q: What is the primary function of the Ekip Supply module?
A: The Ekip Supply provides auxiliary power to Ekip trip units and additional modules installed in the circuit breaker terminal box. It ensures that protection and communication functions remain operational even when the main circuit is de-energized.

Q: When is the Ekip Supply mandatory?
A: The auxiliary power supply is always mandatory when communication modules are installed, whether internal or external. Without it, the Ekip trip unit cannot communicate with supervisory systems when the main circuit is not energized.

Q: Which circuit breakers are compatible with this module?
A: The Ekip Supply 110-240VAC/DC is compatible with Emax 2 air circuit breakers (E1.2, E2.2, E4.2, E6.2) and Tmax XT molded case circuit breakers (XT2, XT4, XT5, XT7, XT7M).

Q: What is the difference between this module and the 24-48V DC version?
A: The 110-240V AC/DC version (1SDA074172R1) accepts a wider input voltage range suitable for standard AC auxiliary supplies. The 24-48V DC version (1SDA074173R1) is designed for low-voltage DC systems and is the only version suitable for Ekip UP.

Q: How is the Ekip Supply mounted?
A: The module is mounted in the circuit breaker's terminal box. It can be field-installed at any time and permits the installation of other advanced modules such as communication interfaces.

Q: Does this module support hot-swapping?
A: The Ekip Supply should be installed with the circuit breaker de-energized. Please follow ABB's installation procedures and ensure all power sources are disconnected before installation.

Q: How fast can you ship this module?
A: As this is a stock item, we typically ship within 24 hours of order confirmation via global express services like DHL or FedEx.
