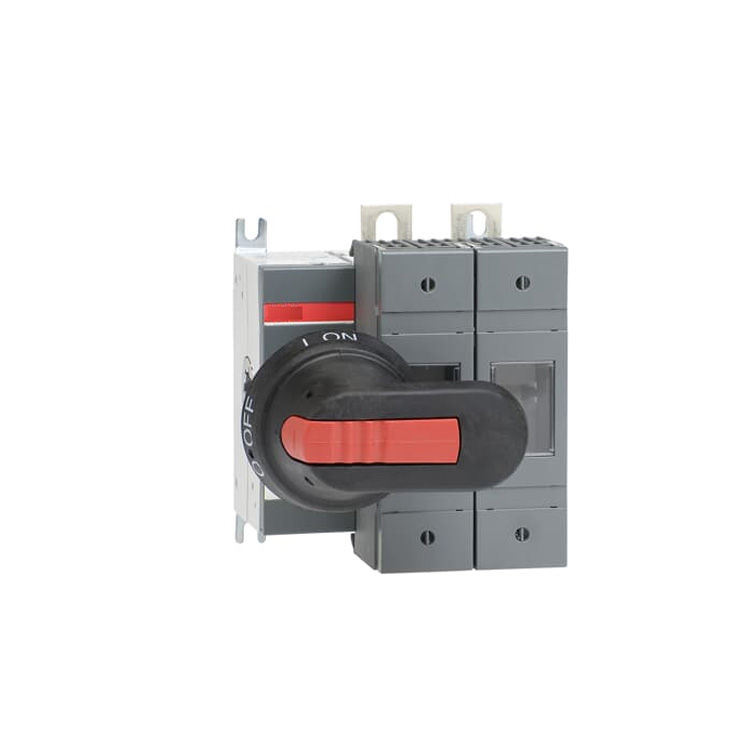

ABB OS160GD02P Switch Fuse (1SCA116717R1001)

Core Advantages

• Comprehensive Safety Protection: The OS series features a patented, operator-independent quick make/quick break mechanism that ensures reliable switching regardless of operating speed. Fuse carriers are fully IP20 protected, and fuse covers cannot be opened while the switch is in the ON position, preventing accidental contact with live parts.

• High Short-Circuit Withstand Capacity: The OS160GD02P is rated for a conditional rated short-circuit current (Iq) of 80 kA and a rated short-time withstand current (Icw) of 5 kA, providing robust protection against fault currents in demanding industrial environments.

• Versatile Mounting Options: The switch fuse supports both base mounting and DIN rail mounting, with adjustable mounting feet allowing top or side mounting configurations. The compact modular design enables flexible installation in various panel layouts.

• Wide Voltage Range: With a maximum rated operating voltage of 1000 V AC, the OS160GD02P is suitable for a broad range of industrial power distribution applications, from standard 400 V systems to higher voltage installations.

• Dual Certification Compliance: The OS series carries both IEC and UL certifications, ensuring compliance with international standards including IEC 60947-3 and IEC 60269-2-1. This dual certification simplifies procurement for global projects and ensures consistent performance across different markets.

• Comprehensive Accessory Range: ABB offers a wide selection of accessories for the OS series including extension shafts, handles, auxiliary contacts, and terminal covers, enabling customized configurations for specific application requirements.

Technical Parameters

Application Scenarios

The ABB OS160GD02P is essential in various industrial power distribution systems requiring reliable isolation and protection:

• Motor Protection: The OS series is ideal for motor protection applications, providing both short-circuit protection through fuse links and safe isolation for maintenance. The switch fuse can be used as a main switch or safety switch for motor circuits in manufacturing and processing facilities.

• Transformer Isolation: Used for isolating transformers in industrial power distribution systems, ensuring safe maintenance operations and reliable protection against fault currents.

• Industrial Control Panels: Serves as a main incoming switch or distribution switch in electrical cabinets, providing reliable circuit isolation and overcurrent protection for downstream equipment.

• Drive Systems: The OS160GD02P is used in ABB drive systems from July 2013 onwards as a switch fuse alternative to 64285165. Compatibility verification is recommended before replacement.

• Pump and Fan Control: Provides isolation and protection for pump and fan motor circuits in HVAC systems, water treatment facilities, and industrial ventilation applications.

• Process Industry Applications: Suitable for chemical, petrochemical, and food processing facilities where reliable circuit isolation and short-circuit protection are essential for safe operations.

What Is Included

• 1 × ABB OS160GD02P Fuse Switch Disconnector (1SCA116717R1001)

• Handle and shaft (included as standard)

• Original Factory Packaging (New & Original)

Before You Buy

• Stock Status: In Stock – Ready for immediate dispatch.

• Condition: New and Original. Each unit is 100% tested and verified before shipping.

• Fuse Links Not Included: The OS160GD02P requires NH000 or NH00 fuse links, which are sold separately. Please select the appropriate fuse rating for your application.

• Compatibility Note: When replacing existing units, verify that the mounting configuration and handle position match your existing installation. The OS160GD02P features the handle positioned on the left side of the poles.

• Installation: Installation must be performed by qualified technicians. Ensure all power sources are disconnected before installation. Follow local electrical codes and regulations.

• Warranty: Comes with a standard 12-month warranty covering defects in materials and workmanship.

Frequently Asked Questions

Q: What does the model number OS160GD02P represent?
A: The model number breaks down as follows: OS = Fuse switch disconnector series; 160 = Rated current 160 A; G = Front-operated mechanism; D = DIN standard fuse compatibility; 02 = 2-pole configuration; P = Handle positioned left of poles.

Q: What fuse types are compatible with this switch?
A: The OS160GD02P is designed for NH000 and NH00 fuse links according to DIN 43620 and IEC 60269-2-1 standards.

Q: Can this switch be used as a main disconnect?
A: Yes, the OS160GD02P is rated as both a main switch and a safety switch, making it suitable for use as the primary disconnect for equipment or distribution circuits.

Q: What is the maximum short-circuit current this switch can withstand?
A: The switch is rated for a conditional rated short-circuit current (Iq) of 80 kA and a rated short-time withstand current (Icw) of 5 kA at rated conditions.

Q: Does this switch include the handle and shaft?
A: Yes, the OS160GD02P includes a long turning handle and shaft as standard. The handle is positioned on the left side of the poles for front operation.

Q: What are the mounting options for this switch?
A: The switch supports both base mounting and DIN rail mounting. It is suitable for busbar mounting but not for floor or front mounting configurations.

Q: How fast can you ship this module?
A: As this is a stock item, we typically ship within 24 hours of order confirmation via global express services like DHL or FedEx.

Recommending Models

The ABB OS160GD02P works seamlessly with the following ABB components and accessories:

• OS160GD03P (1SCA115399R1001): 3-pole version of the same switch fuse for three-phase applications requiring neutral isolation.

• OHB65J6: Black plastic ON/OFF handle for OS100-160 series switches, providing IP65 protection when mounted in an enclosure.

• OXP6X161: Adjustable operating shaft for OS32 to OS160 series switches.

• OA1G10: Auxiliary contact block with snap-on mounting for status indication and interlocking circuits.

• OTP16: Terminal shroud for OS160 series switches, providing additional IP20 protection for cable terminals.

• OZXP6: Extension shaft for remote operation when the switch is mounted deep within an enclosure.
