Core Advantages
-

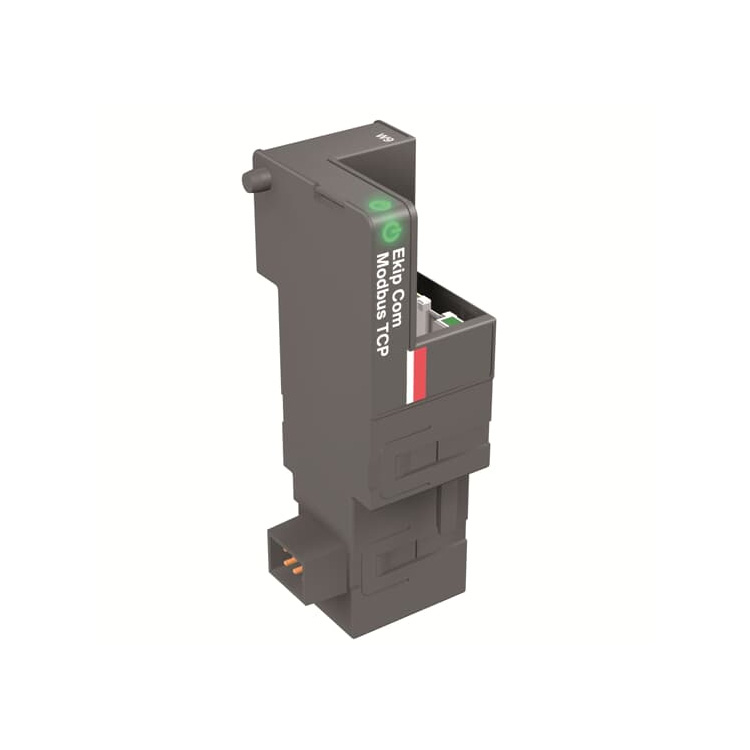

Comprehensive Remote Monitoring: The module enables remote reading of electrical measurements from the Ekip Touch trip unit, including current, voltage, power, and energy data. Circuit breaker status information such as open/closed/tripped and racked-in/racked-out positions can also be monitored remotely .
-
Remote Control Capability: When used with the appropriate actuator module, the Ekip Com Modbus TCP allows remote opening and closing commands to be executed on the circuit breaker. This enables full remote operation of breakers in automated power distribution systems .
-
HTTP Server Functionality: The built-in web server allows operators to access circuit breaker information through a standard web browser by entering the module's IP address. This provides a convenient, license-free method for local monitoring without requiring dedicated software installation .
-
Redundancy Support: For applications requiring high availability, the corresponding Ekip Com Modbus TCP Redundant module can be installed alongside the standard module. This duplication of communication ports ensures continuous supervision system connectivity in critical applications such as refineries, chemical installations, and steelworks .
-
Seamless System Integration: The module supports integration with ABB Ability Electrical Distribution Control System (EDCS) through the Ekip Com Hub, enabling cloud-based predictive maintenance, energy analytics, and report generation .
-
Easy Installation and Configuration: The cartridge-type design allows the module to be installed directly on the terminal box without special tools. Configuration can be performed through the trip unit's display or via ABB's Ekip Connect software .
Technical Parameters
Application Scenarios
The ABB Ekip Com Modbus TCP module is essential in various industrial and commercial power distribution systems requiring remote monitoring and control:
-
Data Center Power Distribution: Enables real-time monitoring of circuit breaker status and electrical parameters in data center power distribution units, supporting proactive maintenance and energy optimization .
-
Industrial Automation Systems: Integrates Emax 2 circuit breakers into factory automation networks for coordinated control and monitoring in manufacturing facilities.
-
Oil and Gas Facilities: Provides reliable communication for circuit breakers in refineries and petrochemical plants, where redundant communication configurations ensure continuous operation .
-
Building Management Systems: Connects circuit breakers to building automation networks for energy monitoring and load management in commercial and institutional buildings.
-
Cloud-Based Energy Management: When paired with the Ekip Com Hub, the module enables connection to ABB Ability EDCS for cloud-based predictive maintenance, energy analytics, and remote diagnostics .
-
Smart Grid Applications: Supports integration of low-voltage circuit breakers into smart grid infrastructure for enhanced grid visibility and control.
What Is Included
Before You Buy
-
Stock Status: In Stock – Ready for immediate dispatch.
-
Condition: New and Original. Each unit is 100% tested and verified before shipping.
-
Required Accessories: The Ekip Supply module is required to provide 24 V DC auxiliary power to the Ekip Com Modbus TCP module and the trip unit. Please order separately if not already installed .
-
Configuration Note: The module requires configuration of IP address settings (static or dynamic) through the trip unit display or Ekip Connect software. Each Ekip Touch can be fitted with only one module per type; two modules of the same model cannot be installed simultaneously .
-
Security Advisory: The module cannot be connected directly to the Internet. Only connect to dedicated Ethernet networks with appropriate security measures (firewall, etc.) in place .
-
Warranty: Comes with a standard 12-month warranty covering defects in materials and workmanship.
Frequently Asked Questions
Q: What does the model number 1SDA074151R1 represent?
A: The part number 1SDA074151R1 is ABB's specific ordering code for the Ekip Com Modbus TCP communication module compatible with Emax 2 air circuit breakers E1.2 through E6.2 .
Q: What is the primary function of the Ekip Com Modbus TCP module?
A: The module serves as the communication interface that connects the circuit breaker's Ekip Touch trip unit to an Ethernet network using the Modbus TCP protocol. It enables remote monitoring of measurements and status, remote configuration of protection parameters, and (with additional modules) remote opening and closing commands .
Q: What are the minimum accessories required for operation?
A: The Ekip Supply module is mandatory to provide 24 V DC auxiliary power to both the Ekip Com module and the trip unit. The module cannot operate without this power supply .
Q: What is the maximum Ethernet cable length supported?
A: The maximum cable length from the Ekip Com Modbus TCP module to the network switch is 100 meters. Category 6 S/FTP (double shielded) cable is required for reliable communication .
Q: How many communication modules can be installed on one circuit breaker?
A: Up to three communication modules can be installed simultaneously on Emax 2 E2.2, E4.2, and E6.2 circuit breakers. Up to two modules can be installed on E1.2 breakers. However, only one module of each type (e.g., one Ekip Com Modbus TCP) can be installed per circuit breaker .
Q: Can this module function as a web server?
A: Yes, the Ekip Com Modbus TCP includes HTTP server functionality. By entering the module's IP address in a web browser, operators can access circuit breaker information in read-only mode. However, remote commands and parameter modifications cannot be performed through the web interface .
Q: What is the recommended network security configuration?
A: The module should only be connected to dedicated Ethernet networks with appropriate security measures such as firewalls. It should never be connected directly to the Internet. The plant manager is responsible for establishing and maintaining appropriate cybersecurity measures .
Q: How fast can you ship this module?
A: As this is a stock item, we typically ship within 24 hours of order confirmation via global express services like DHL or FedEx.
Recommending Models
The ABB Ekip Com Modbus TCP module works seamlessly with the following ABB components:
-

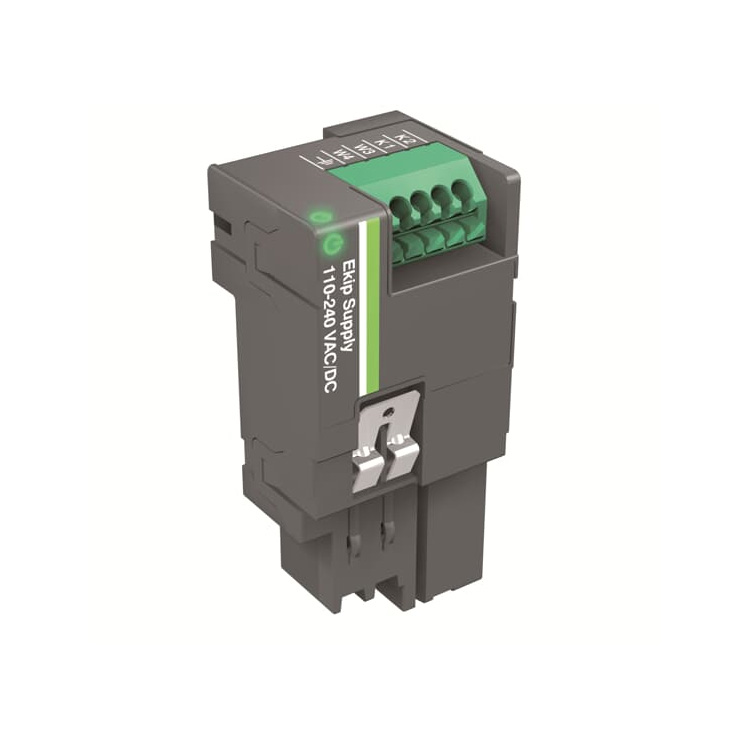

1SDA074172R1: Ekip Supply 110-240V AC/DC module, required to provide auxiliary power to the communication module and trip unit.
-
1SDA074173R1: Ekip Supply 24-48V DC version, for low-voltage DC auxiliary supply applications.
-
1SDA074158R1: Ekip Com Modbus TCP Redundant module, for applications requiring redundant communication ports and enhanced system availability .
-
1SDA074152R1: Ekip Com Modbus RS-485 module, for applications using serial Modbus communication instead of Ethernet.
-
1SDA074155R1: Ekip Com Profinet module, for integration with PROFINET industrial networks.
-
Ekip Com Hub: Communication hub module that enables connection of the entire switchboard to ABB Ability EDCS cloud platform for advanced energy management and predictive maintenance .
-
Ekip Connect Software: ABB's PC-based configuration software for setting up IP addresses, IEEE 1588 synchronization, and other advanced module parameters .
