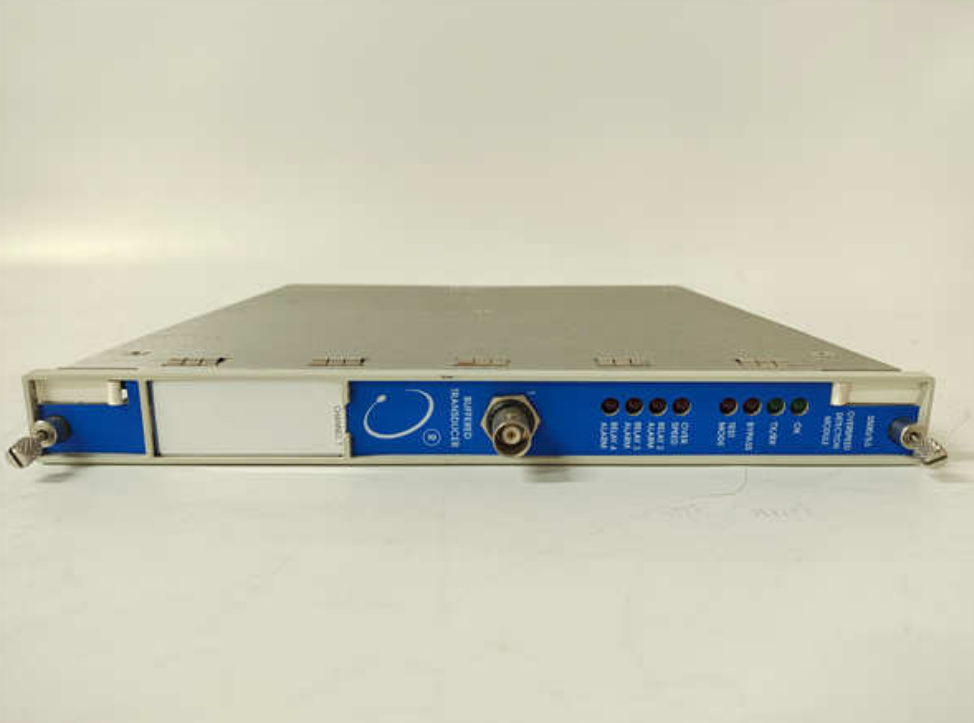

The Bently Nevada 3500/53 133388-01 is an electronic overspeed detection module for the 3500 series machinery protection system. It provides high-integrity speed monitoring for critical turbines, compressors, and generators, with dedicated relay outputs that can directly trigger emergency shutdowns.
Item No :
3500/53 133388-01Order(MOQ) :
1 PiecePayment :
EXW/CIFProduct Origin :
USAShipping Port :
WuhanLead Time :
3-5daysWeight :
5kg| Feature | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Family | 3500 Series Machinery Protection System |
| Module Type | Electronic Overspeed Detection Module |
| Part Number | 133388-01 (PWA for 3500/53) |
| Input Channels | 1 per module; supports multi-module voting systems (2oo2 or 2oo3 recommended) |
| Sensor Compatibility | Proximity probes (3300/7200 series) and magnetic pickups |
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ |
| Speed Range | Up to 99,999 RPM; max input frequency 20 kHz |
| Accuracy | ±0.1% of reading; <100 RPM: ±0.1 RPM |
| Response Time | < 30 ms above 300 Hz |
| Outputs | 4 alarm relays (SPDT) + 4-20 mA recorder output |
| Relay Contact Rating | 5 A @ 30 VDC / 250 VAC |
| Power Consumption | 8.0 W typical |
| Operating Temp. | -30°C to +65°C (or -40°C to +85°C per some sources) |
| Status LEDs | OK, TX/RX, BYPASS, TEST MODE, Relay Alarm |
| Certification | API 670, API 612; SIL 2 capable (with specific configurations) |
| Rack Requirement | Requires redundant power supplies in 3500 rack |
| Category | Model | Description |
|---|---|---|
| I/O Module | 133396-01 | I/O terminal card for the 3500/53, required for field wiring connections |
| Rack Interface | 3500/20 (Rev G+) | Primary rack interface module; requires firmware Revision G or later |
| Vibration Monitor | 3500/40M 140734-01 | 4-channel Proximitor® monitor module for vibration monitoring, complementing overspeed protection |
| Relay Module | 3500/32 125712-01 | 4-channel relay module; can be used as an alternative or redundant output solution |
| Power Supply | 3500/15 127610-01 | Redundant power supply module required for racks with overspeed detection modules |
| 19" Rack | 3500/05-01-02-00-00-01 | Standard 14-slot rack for housing 3500 series modules |
| 3500-51 | 140482-01 | 133835-02 |
| 3500/15 | 3500/45 | 3500/61 |
| 127610-01 | 140072-04 | 133843-02 |
| 125840-01 | 3500/45 | 3500/61 |
| 125840-02 | 135137-01 | 136711-02 |
| 129486-01 | 135145-01 | 3500/61 |
| 129478-01 | 126632-01 | 3500/62 |
| 133292-01 | 139554-01 | 133811-03 |
| 133300-01 | 139567-01 | 3500/62 |
| 3500/20 | 139978-01 | 136491-01 |
| 125744-02 | 139991-01 | 136499-01 |
| 125744-01 | 3500/32 | 136294-01 |
| 135031-01 | 125712-01 | 136483-01 |
| 125768-01 | 125720-01 | 137110-01 |
| 3500/22M | 3500/33 | 3500/64M |
| 138607-01 | 149986-01 | 3500/65 |
| 138607-02 | 149992-01 | 3500/70M |
Q1: What is the primary function of the 3500/53 133388-01?
It is an electronic overspeed detection module used to monitor rotating machinery speed. When the speed exceeds a pre-set Danger/Overspeed threshold, it directly triggers relay outputs to shut down the equipment and prevent catastrophic mechanical failure.
Q2: Does the 3500/53 133388-01 have multiple input channels?
The module itself has one input channel. For redundancy and to meet API 670 requirements, multiple 3500/53 modules can be installed in adjacent slots and configured as a 2-out-of-2 or 2-out-of-3 (recommended) voting system.
Q3: What sensors are compatible with this module?
It accepts signals from Bently Nevada proximity probes (3300 and 7200 series Proximitor®) and magnetic pickups, with an input voltage range of +10.0 V to -24.0 V.
Q4: What are the key configuration requirements for this module?
The 3500/53 requires redundant power supplies in the rack . Additionally, the 3500/20 Rack Interface Module must have firmware Revision G or later, and the configuration software must meet specific version requirements.
Q5: What outputs does the module provide for alarm and protection?
The 133388-01 provides four SPDT alarm relay outputs (with a 5 A rating) for direct trip circuit connection and a 4-20 mA recorder output proportional to speed for monitoring purposes.
