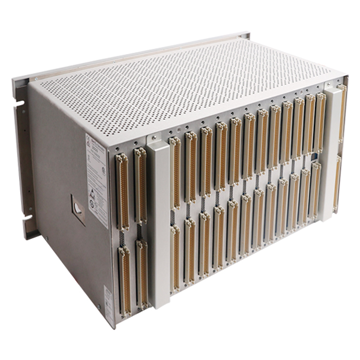

The Bently Nevada 3500/05 is a System Rack (also known as a chassis or cabinet) designed for the 3500 Monitoring System. It serves as the physical housing and power distribution backbone for all 3500 Series modules, including Proximitor® monitors, seismic monitors, Keyphasor® modules, communication gateways, and I/O modules.
Item No :
3500/05Order(MOQ) :
1 PiecePayment :
EXW/CIFProduct Origin :
USAShipping Port :
WuhanLead Time :
3-5daysWeight :
3kg| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Product Number | 3500/05 |
| Product Type | System Rack / Chassis |
| Compatible System | Bently Nevada 3500 Monitoring System |
| Available Slot Sizes | 4-slot, 7-slot, 10-slot, 12-slot, 14-slot, 19-slot (and other variants) |
| Module Compatibility | All 3500 Series modules (monitors, Keyphasor, comms, I/O) |
| Power Supply | Integrated backplane provides power to all installed modules |
| Mounting Options | Rack mount, panel mount, or cabinet mount |
| Country of Origin | USA |
| Lifecycle Status | Active / Available |
| Model | Description | Application / Notes |
|---|---|---|
| 3500/05 | System Rack (this product) | Main chassis/housing for 3500 series modules |
| 3500/15 | Power Supply Module | Provides DC power to 3500 rack; compatible with 3500/05 |
| 3500/22M | Transient Data Interface Module | For transient data acquisition; installs in 3500/05 rack |
| 3500/40M | Proximitor® Monitor | Proximity probe monitor; installs in 3500/05 rack |
| 3500/42M | Proximitor®/Seismic Monitor | Combined proximity/seismic monitor; installs in 3500/05 rack |
| 3500/60 | Temperature Monitor | Temperature monitoring module; installs in 3500/05 rack |
| 3500/92 | Communication Gateway | For system-level communication; installs in 3500/05 rack |
| 3500-51 | 140482-01 | 133835-02 |
| 3500/15 | 3500/45 | 3500/61 |
| 127610-01 | 140072-04 | 133843-02 |
| 125840-01 | 3500/45 | 3500/61 |
| 125840-02 | 135137-01 | 136711-02 |
| 129486-01 | 135145-01 | 3500/61 |
| 129478-01 | 126632-01 | 3500/62 |
| 133292-01 | 139554-01 | 133811-03 |
| 133300-01 | 139567-01 | 3500/62 |
| 3500/20 | 139978-01 | 136491-01 |
| 125744-02 | 139991-01 | 136499-01 |
| 125744-01 | 3500/32 | 136294-01 |
| 135031-01 | 125712-01 | 136483-01 |
| 125768-01 | 125720-01 | 137110-01 |
| 3500/22M | 3500/33 | 3500/64M |
1. What is the Bently Nevada 3500/05?
The 3500/05 is a System Rack (chassis) for the Bently Nevada 3500 Monitoring System. It provides the physical housing, slot mounting, backplane communication, and power distribution for all 3500 Series modules, enabling a complete machinery protection and condition monitoring solution.
2. What sizes are available for the 3500/05 rack?
The 3500/05 rack is available in multiple slot configurations, including 4-slot, 7-slot, 10-slot, 12-slot, 14-slot, and 19-slot variants. The specific model number often includes a suffix indicating the number of slots.
3. What modules can be installed in the 3500/05 rack?
The 3500/05 rack is compatible with all 3500 Series modules, including:
Proximitor® Monitors (3500/40M, 3500/42M)
Seismic Monitors (3500/42M)
Temperature Monitors (3500/60)
Keyphasor® Modules (133300-01)
Communication Gateways (3500/92)
Transient Data Interface Modules (3500/22M)
I/O Modules (133292-01)
4. How is the 3500/05 rack powered?
The rack receives DC power from a 3500/15 Power Supply Module installed in the rack. The backplane distributes power to all installed modules. The power supply provides regulated DC power for the entire monitoring system.
5. What should I consider when selecting a 3500/05 rack?
When selecting a 3500/05 rack:
Determine the number of modules required for your monitoring application
Choose a slot size that accommodates all modules (allow room for future expansion)
Verify the rack's mounting options (rack mount, panel mount, or cabinet mount) for your installation
Ensure the rack includes the correct backplane version for your module requirements
Consider power supply capacity for all installed modules
Always purchase from authorized Bently Nevada distributors or reputable sources
