The Bently Nevada 330780-50-00 is a high-performance Proximitor® sensor from the 3300 XL 11 mm proximity transducer system series. This module serves as the signal conditioner and amplifier within a complete 11 mm eddy current transducer system, powering the probe and processing raw gap voltage signals into precise, high-level outputs proportional to the distance between the probe tip and the target shaft. It is commonly integrated with vibration monitoring systems such as the 3500/42M, 3500/50, and 1900/65 .
The specific model 330780-50-00 is configured as a 5.0-meter total system length unit with a panel mount design and no special agency approvals required . It is a direct upgrade path for older 7200-series transducer systems and is widely used in turbine supervisory instrumentation (TSI) for measuring shaft vibration, axial displacement, and position.
Item No :
330780-50-00Order(MOQ) :
1Payment :
EXWProduct Origin :
USAShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
3kgProduct Showroom

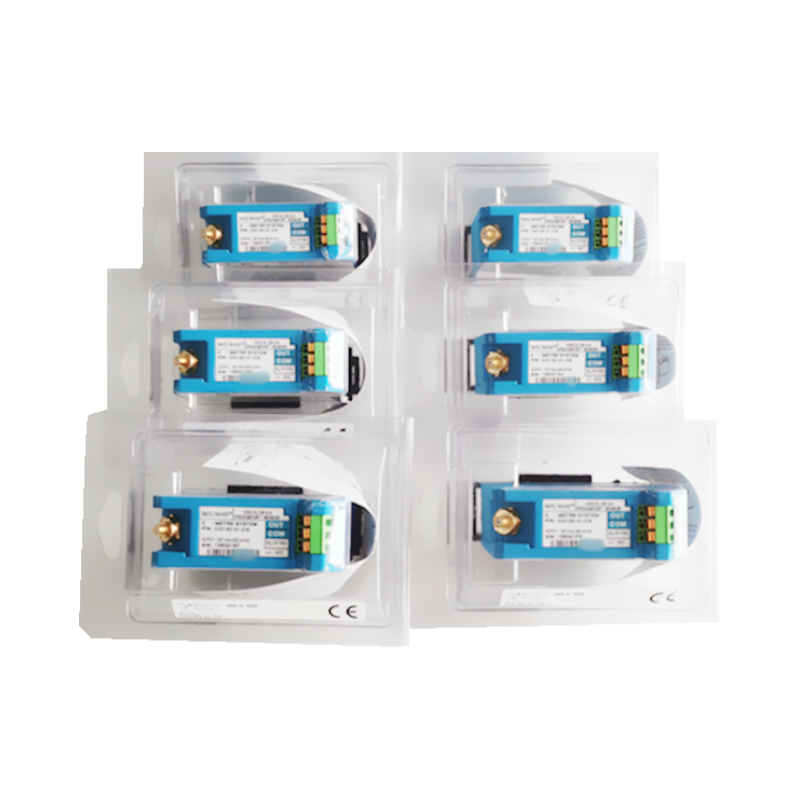

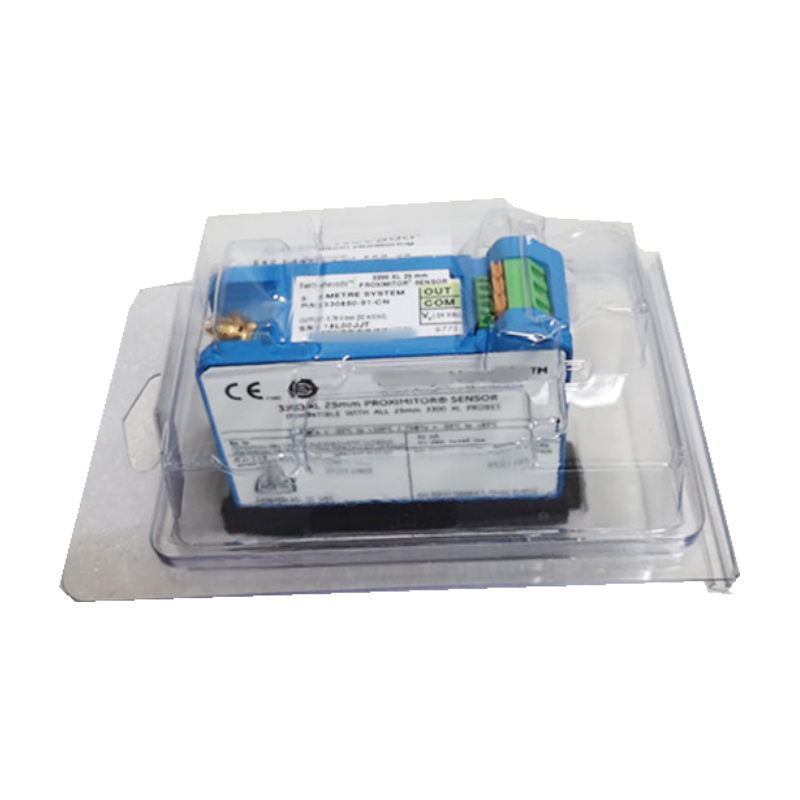

Bently Nevada 330780-50-00 3300 XL Proximitor Sensor
5.0-Meter System Length, Panel Mount
New and Original
High-Performance Signal Conditioning: Converts raw 11 mm eddy current probe signals into a buffered, linear voltage output (100 mV/mil) proportional to gap distance, enabling accurate static and dynamic measurements
Enhanced Noise Immunity: Improved RFI/EMI immunity allows installation without special shielded conduit, reducing costs and meeting CE mark approvals
Tool-Free Field Wiring: SpringLoc™ terminal strips eliminate the need for special tools, providing faster and more robust field wiring connections compared to traditional screw-type terminals
Direct Legacy Upgrade Path: Fully replaces 7200-series 11 mm and 14 mm transducer systems, providing a seamless upgrade to the advanced 3300 XL platform
Panel Mount Design: The -50 suffix indicates panel mount configuration (4-hole mounting), suitable for installation directly on control cabinet panels or equipment frames
5.0-Meter System Length: Pre-configured for use with 5.0-meter total system length (probe + extension cable) for optimal impedance matching and measurement accuracy
| Category | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330780-50-00 |
| Product Type | 3300 XL 11 mm Proximitor Sensor |
| System Compatibility | 3300 XL 11 mm Eddy Current Transducer System |
| Total System Length | 5.0 meters (16.4 feet) |
| Mounting Option | Panel Mount (4-hole) |
| Agency Approval | None required |
| Output Scale Factor | 3.94 V/mm (100 mV/mil) ±5% |
| Linear Measurement Range | 0.5 to 4.5 mm (4.0 mm / 160 mils) |
| Frequency Response | 0 to 8 kHz |
| Power Supply | -17.5 VDC to -26 VDC (-24 VDC nominal) |
| Maximum Current Draw | 12 mA |
| Output Signal | Buffered voltage output (dynamic vibration + static displacement) |
| Operating Temperature | 0°C to +45°C (Proximitor) |
| Compliance | API 670, ISO 10817-1 |
| Country of Origin | USA |
The part number 330780-50-00 provides specific configuration details :
| Suffix | Code | Meaning |
|---|---|---|
| 330780 | - | Base model for 3300 XL 11 mm Proximitor Sensor |
| -50 | - | 5 = 5.0-meter total system length; 0 = Panel mount |
| -00 | - | No agency approvals required |
The Proximitor sensor is one-third of a complete transducer system and must be used with matching 11 mm probes and extension cables :
| Critical Item | Requirement |
|---|---|
| Supported Probes | 330701, 330702, 330707 (11 mm Eddy Current Probes) |
| System Length Match | Must equal exactly 5.0 meters (probe length + extension cable length) |
| Compatibility Warning | DO NOT use with 8 mm probes (330180 series) — the sensitivity and linear range are incompatible |
System Length Match Required: The total electrical length of the probe plus extension cable must equal the Proximitor's 5.0-meter rating. Any length deviation will cause impedance mismatch, signal reflection, and measurement drift .
This sensor is the ideal electronic cornerstone for critical machinery monitoring across various industries :
| Industry | Application |
|---|---|
| Power Generation | Shaft vibration and axial displacement monitoring on steam and gas turbines, generators, and critical pumps |
| Oil & Gas | Condition monitoring of high-speed machinery such as centrifugal compressors, turbo-expanders, and pipeline pumps |
| Heavy Industrial | Rotating equipment monitoring in steel mills, paper plants, and heavy manufacturing facilities |
| Petrochemical | Upgrading legacy monitoring systems and API 670-compliant machinery protection |
The 330780-50-00 interfaces with a wide range of Bently Nevada monitoring systems :
| Compatible Monitoring System | Description |
|---|---|
| 3500/42M | 4-Channel Proximitor/Vibration Monitor |
| 3500/50 | 4-Channel Tachometer Module |
| 3500/45 | Position Monitor |
| 1900/65 | General Purpose Equipment Monitor |
| Detail | Information |
|---|---|
| Condition | New & Original |
| Stock Status | In Stock |
| Warranty | 12 Months |
| Shipping | Fast dispatch upon order confirmation |
