The Bently Nevada 136188-02 is the I/O module for the 3500/92 Communication Gateway, serving as the physical interface that connects the 3500 machinery protection system to plant-wide automation networks. This module provides the physical termination points for both Ethernet and serial communication, enabling data exchange between the 3500 rack and external systems such as DCS, PLC, and SCADA platforms .
As an integral part of the 3500/92 system (paired with the 136180-01 main board), this module converts monitored vibration, temperature, and position data into industry-standard Modbus formats for seamless system integration . The specific configuration 136188-02 indicates an Ethernet/RS485 Modbus I/O module.
Item No :
136188-02Order(MOQ) :
1Payment :
EXWProduct Origin :
USAShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
1kgProduct Showroom

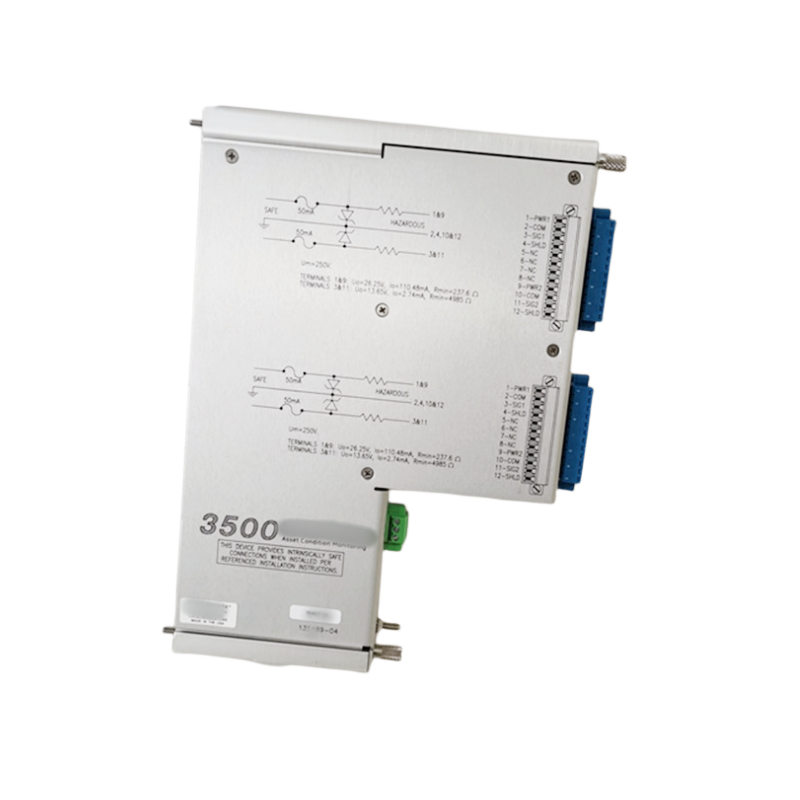

Bently Nevada 136188-02 3500/92 Communication Gateway Module
Ethernet/RS485 I/O Module for 3500 Machinery Protection Systems
New and Original
Multi-Protocol Communication: Supports Modbus RTU (via serial) and Modbus/TCP (via Ethernet), ensuring compatibility with a wide range of industrial automation systems
Dual Communication Interfaces: Provides both RJ-45 Ethernet (10BASE-T) and RS232/RS422/RS485 serial ports for flexible network integration
Integrated Digital I/O: Features 16 digital inputs (DI) and 16 digital outputs (DO) for hardwired interlocking signals and status feedback, expanding the gateway's functionality beyond pure communication
Physical Layer Isolation: Provides signal isolation and electrical protection, safeguarding the core communication processor from industrial electromagnetic interference
Real-Time Data Exchange: Enables continuous transmission of all rack-monitored values (vibration, displacement, temperature, alarms) to control systems for remote monitoring and predictive diagnostics
Simplified Plant Integration: Replaces expensive, complex cabling with direct Modbus mapping, allowing 3500 rack data to be exposed as standard registers on the plant network
Comprehensive Status Indication: Front-panel OK and TX/RX LEDs provide instant visual feedback on module health and communication activity
| Category | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE) |
| Model Number | 136188-02 |
| Product Type | 3500/92 Communication Gateway I/O Module |
| Configuration | Ethernet/RS485 Modbus I/O Module |
| Communication Interfaces | 1x RJ-45 Ethernet (10BASE-T), 1x RS485 serial (with other variants supporting RS232/RS422) |
| Digital I/O | 16 DI / 16 DO (for hardwired signals and interlocking) |
| Ethernet Protocol | Modbus/TCP, BNCHost (Bently Nevada proprietary for configuration software) |
| Serial Protocol | Modbus RTU |
| Data Rate (Serial) | Up to 115.2 kbps |
| Power Supply | 24 VDC |
| Power Consumption (RS485) | 5.6 W typical |
| Power Consumption (RS232/RS422) | 5.0 W typical |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Protection Rating | IP20 (module-level); associated terminal boards may meet NEMA 4X |
| Weight | Approx. 0.4 kg (0.88 lb) |
| Dimensions | Standard 3500 module form factor, 1 full-height rear slot |
| Country of Origin | USA |
The 136188-02 is one component of the 3500/92 Communication Gateway system:
| Component | Function |
|---|---|
| 136180-01 Main Board | The "brain" of the gateway, handling protocol conversion and data processing |
| 136188-02 I/O Module | The physical interface, providing Ethernet and serial connectors, plus digital I/O terminals |
| 3500/92 Gateway | Complete system enabling full 3500 rack integration with third-party systems |
Critical Note: The 136188-02 is a passive terminal board that requires the 136180-01 main board to function. These two components must be used together to complete the 3500/92 Communication Gateway system .
The 3500/92 Communication Gateway is widely deployed across critical machinery protection applications :
| Industry | Application |
|---|---|
| Oil & Gas | Connecting compressor vibration data from 3500 racks to central DCS systems in refineries and pipeline stations |
| Power Generation | Integrating turbine monitoring data into plant PLC control systems for interlocking protection via Modbus serial links |
| Chemical Processing | Aggregating data from multiple 3500 racks across a facility to remote diagnostic centers via Ethernet |
| Mining & Metals | Deploying in monitoring systems for heavy-duty hoists, crushers, and mills as a bridge to plant information networks |
Steam and Gas Turbines
Centrifugal Compressors
Fans and Blowers
Critical Pumps
Generators
Turbo-expanders
| Detail | Information |
|---|---|
| Condition | New & Original |
| Stock Status | In Stock |
| Warranty | 12 Months |
| Shipping Port | Xiamen, China |
| Lead Time | 5-7 Working Days |
| Payment Terms | T/T, Western Union |
