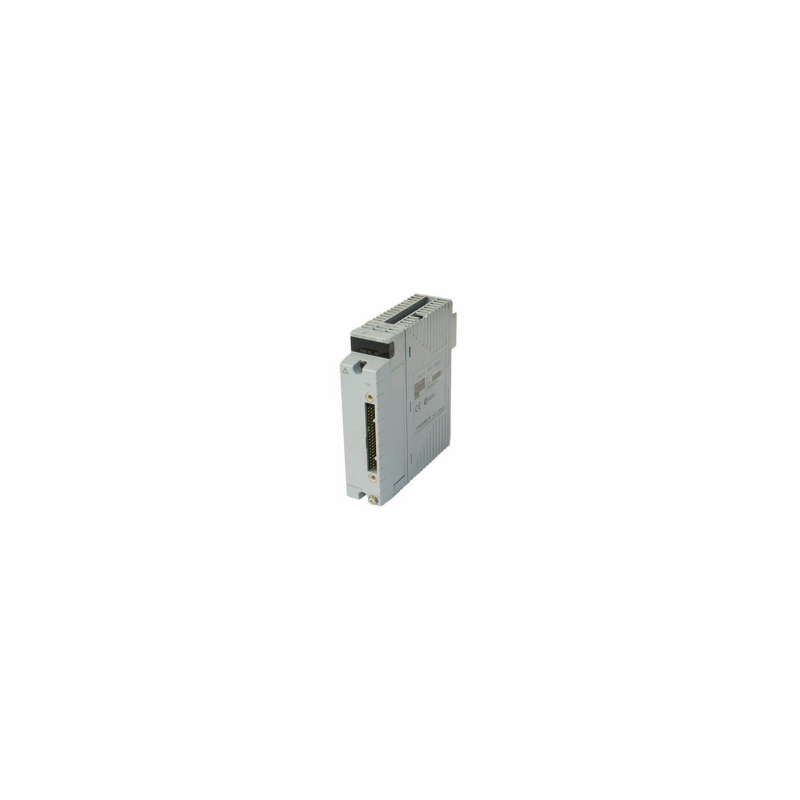

Yokogawa AAM10 Current/Voltage Input Module

Brief Introduction of Yokogawa

Yokogawa's main businesses: industrial automation and test and measurement hardware and software.

Yokogawa's products are used in a variety of industries that require process control systems. Depending on the size and requirements of the project, Yokogawa offers a variety of control systems: DCS, PLC, SCADA and ESD (Emergency Shutdown). Yokogawa has also partnered with Shell Global Solutions to provide advanced process control (APC) solutions for refineries, petrochemical plants, and chemical plants.

Detailed Information

AAM10 current/voltage input module (simple type), 1 channel

Key Features

Technical Specifications

General

Input Specifications

Power & Transmitter Supply

Performance

Isolation

Environmental & Installation

Applications

The AAM10 is suited for a wide range of industrial process monitoring applications within CENTUM-based DCS environments:

• Process Industries: Monitoring temperature, pressure, flow, and level in oil and gas, chemical, and petrochemical plants

• Power Generation: Boiler and turbine instrumentation signal acquisition

• Water & Wastewater Treatment: Flow and level monitoring

• Pharmaceutical Manufacturing: Critical process parameter monitoring

• Food & Beverage: Temperature and pressure loop monitoring

Key Benefits

Important Notes

• System Requirement: The AAM10 requires system software revision R2.07 or later for full compatibility

• Power Supply: The module is powered via the CENTUM Node Interface Unit (AND50, ANS50, AND20, ANS20) or Field Control Station (PFCS/PFCD)

• Current Loop Behavior: When the AAM10 is powered off or in an abnormal condition, the current input loop is open

• Signal Sharing Restriction: Do not share current signals with other receivers. For shared signal applications, attach a 250 Ω shunt resistor and use voltage mode

• Barrier Compatibility: Can be combined with MTL barrier 728; in this case, wiring resistance must be ≤10 Ω, and the 2-wire transmitter minimum operating voltage must be ≤12 V DC

• Signal Configuration: Input signal type and ranges are set via software; proper configuration before commissioning is required

FAQ

Q1: What signal types does the AAM10 accept?

A: The AAM10 accepts both 4-20 mA DC current and 1-5 V DC voltage signals. The input type is configurable via software .

Q2: Can the AAM10 directly power 2-wire transmitters?

A: Yes. The module provides an integrated 25.0 to 25.5 V DC loop supply with a 60 mA current limit for powering 2-wire field transmitters .

Q3: What is the data update period of the AAM10?

A: The fixed data update period is 50 ms .

Q4: Is the AAM10 hot-swappable?

A: Yes, the module supports online module replacement (hot-swap) on compatible CENTUM I/O racks, provided the replacement module shares identical hardware revision and channel configuration settings .

Q5: What is the accuracy of the AAM10?

A: Accuracy is ±4 mV for voltage input and ±16 µA for current input. Temperature drift is ±8 mV and ±32 µA per 10°C change .

Q6: What is the difference between AAM10 and AAM10B?

A: The standard AAM10 is used for standard analog signals. The AAM10B variant typically includes support for the BRAIN protocol, enabling digital communication and diagnostics with intelligent Yokogawa field devices .

Q7: Is the AAM10 compatible with CENTUM VP?

A: The AAM10 is primarily designed for CENTUM CS 3000 and CENTUM CS 1000 systems. While some hardware may be backward compatible, verify specific I/O bus compatibility if attempting to use it in a CENTUM VP system .

Q8: What isolation does the AAM10 provide?

A: The module provides input-to-system galvanic isolation with a 1500 V AC withstand voltage rating for 1 minute, protecting the control system from field-side noise and potential faults
