The SICK S30A-4011BA (Part No. 1028934) is a safety laser scanner from the S3000 Standard product family, designed for reliable protection of hazardous areas, access points, and automated guided vehicles (AGVs) in industrial environments.
Item No :
S30A-4011BAOrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | SICK |
| Model | S30A-4011BA |
| Part Number | 1028934 |
| Product Family | S3000 Standard |
| Product Type | Safety Laser Scanner (Sensor without system plug) |
| Application | Indoor |
| Protective Field Range | 4 m |
| Warning Field Range | 49 m (20 m at 20% reflectivity) |
| Distance Measuring Range | 49 m |
| Scanning Angle | 190° |
| Number of Fields | 4 |
| Number of Field Sets | 1 |
| Resolution (Configurable) | 30 mm, 40 mm, 50 mm, 70 mm, 150 mm |
| Angular Resolution | 0.5°, 0.25° (depending on range and resolution) |
| Response Time | 60 ms |
| Protective Field Supplement | 100 mm |
| Number of Multiple Samplings | 2 to 16 (configurable) |
| Supply Voltage | 16.8 V DC to 28.8 V DC (24 V DC nominal) |
| Current Consumption | 0.8 A (without output load); 2.3 A (with max output load) |
| Safety Outputs (OSSDs) | 2 x 500 mA |
| Warning Field Outputs | 3 x 100 mA |
| Safety Integrity Level | SIL2 (IEC 61508), SILCL2 (EN 62061) |
| Category | Category 3 (EN ISO 13849) |
| Performance Level | PL d (EN ISO 13849) |
| PFHd | 8.0 x 10⁻⁸ |
| Enclosure Rating | IP65 (EN 60529) |
| Housing Material | Die-cast aluminum |
| Dimensions (W x H x D) | 155 mm x 185 mm x 160 mm |
| Weight | 3.3 kg |
| Operating Temperature | -10°C to +50°C |
| Country of Origin | Germany |
| Model | Description | Typical Application |
|---|---|---|
| S30A-4011BA (1028934) (this model) | S3000 Standard, 4 m protective range, 190° scan angle | Standard hazardous area and access protection |
| S30A-6011BA (1023546) | S3000 Standard, 5.5 m protective range, 190° scan angle | Medium-range protection |
| S30A-7011BA (1023890) | S3000 Standard, 7 m protective range, 190° scan angle | Long-range protection |
| S30A-4111CL (1052591) | S3000 PN, 4 m range, PROFINET IO interface | Networked safety applications |
| S3000 Advanced | 4 switchable field sets, 4 protective/warning fields | Complex applications with multiple zones |
| S3000 Professional | 8 switchable field sets, 8 protective/warning fields | High-flexibility safety applications |
| microScan3 Core IO 4M | Successor product – 4 m range, safeHDDM technology | Recommended replacement for new installations |
| microScan3 Pro EFI 4M | Successor product with EFI interface | Advanced successor with safe device communication |
Q1: What is the primary function of the S30A-4011BA?
It is a safety laser scanner that uses infrared laser beams to scan a 190° area, detecting objects or persons entering its protective field. When an object is detected, the scanner sends a signal via its OSSD outputs to stop hazardous machinery, protecting personnel and equipment .
Q2: What are the safety certifications of this model?
The S30A-4011BA is certified to Type 3 (IEC 61496), SIL2 (IEC 61508), SILCL2 (EN 62061), Category 3 (EN ISO 13849), and Performance Level PL d .
Q3: Can this model be used in vertical applications?
Yes. The S3000 Standard is certified for both horizontal (hazardous area protection) and vertical (access protection) applications. The "Contour as Reference" function enables reliable operation in vertical mode .
Q4: What is the difference between the S3000 Standard and the Advanced/Professional models?
The Standard model has 1 field set (4 fields total) and is the cost-effective solution for simple applications . The Advanced model supports 4 switchable field sets, while the Professional model supports 8 switchable field sets, making them suitable for more complex applications requiring multiple monitoring zones .
Q5: Is the S30A-4011BA still available or has it been replaced?
SICK has announced a generation change: the S3000 series is being replaced by the microScan3 safety laser scanner . The microScan3 offers safeHDDM® scanning technology, a 275° scanning angle, and improved resistance to ambient light and dust. For new installations, the microScan3 is recommended; however, the S30A-4011BA remains available through aftermarket suppliers for existing installations .
The SICK S30A-4011BA (Part No. 1028934) is a safety laser scanner from the S3000 Standard product family, designed for reliable protection of hazardous areas, access points, and automated guided vehicles (AGVs) in industrial environments.
The Vibro-Meter IOCT16T (200-565-000-013) is a 16-channel intelligent Input/Output Interface Card designed for the VM600 machinery protection and condition monitoring system. It serves as the critical rear-rack interface between field sensors and the VM600 processing cards, providing physical terminal connections, signal conditioning, and electrical isolation for accelerometers, velocity sensors, proximity probes, and tachometer inputs.
The Meggitt Vibro-Meter 200-530-025-014 is a 16-channel Condition Monitoring Card (CMC16) from the VM600 series machinery protection and condition monitoring system. Designed for power generation, oil & gas, and heavy industry, it works alongside the MPC4 protection card and IOC16T interface card to deliver real-time machinery health insight and fail-safe protection.
The Delta VFD550C43A is a high-performance field-oriented control (FOC) variable frequency drive from the VFD-C2000 series, designed for demanding industrial motor control applications. Operating on three-phase 460V AC input, it delivers 55 kW (75 HP) output with a rated current of 110 A in normal duty mode.
The Yokogawa AAI143-H50 S1 is a 16-channel isolated analog input module designed for the CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). It accepts standard 4–20 mA DC signals from field transmitters and converts them to high-precision digital data for process monitoring and control.
The Endress+Hauser PMD75-5BA8HB1DAAA+Z1 is a Deltabar S PMD75 differential pressure transmitter featuring a piezoresistive metal sensor with welded metallic diaphragms, designed for continuous measurement of differential pressure, level, volume, or mass flow in liquids, vapors, and gases.
The Endress+Hauser PMD75-ABA7CB1DAAA+Z1 is a Deltabar S PMD75 differential pressure transmitter featuring a piezoresistive metal sensor with welded metallic diaphragms, designed for continuous measurement of differential pressure, level, volume, or mass flow in liquids, vapors, and gases.

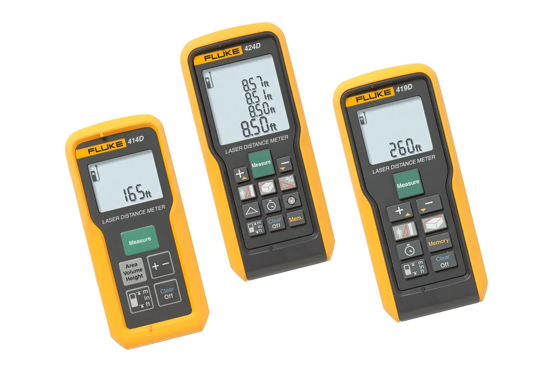

The Fluke 424D is a professional-grade laser distance meter designed to instantly measure up to 100 meters (330 feet) with one-button point-and-click operation.
