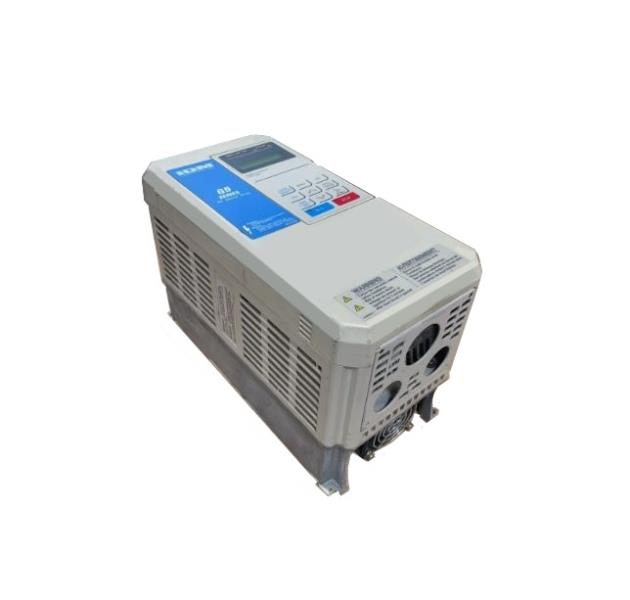

The Yaskawa CIMR-G5U43P7 is a versatile 5 HP variable frequency drive from the trusted Varispeed 616G5 series. Designed for general-purpose industrial applications, it provides reliable and precise speed control for three-phase AC motors. Operating on a 380–460 VAC input, this drive offers a wide output frequency range of 0 to 400 Hz, making it a flexible solution for various motor control tasks in demanding environments.
Item No :
CIMR-G5U43P7Order(MOQ) :
1 PiecePayment :
EXW/CIFProduct Origin :
JapanShipping Port :
WuhanLead Time :
3-5daysWeight :
8kg| Attribute | Specification |
|---|---|
| Manufacturer | Yaskawa |
| Product Line | Varispeed 616G5 Series |
| Power Rating | 5 HP (3.7 kW) |
| Input Voltage | 380–460 V AC, 3-Phase |
| Output Voltage | 0–460 V AC, 3-Phase |
| Rated Output Current | 8.5 A / 10.2 A |
| Output Capacity | 6.1 kVA |
| Output Frequency | 0 – 400 Hz |
| Weight | 4.5 kg (approx. 9.9 lbs) |
Key Features:
General-Purpose Application: Ideal for a wide range of industrial machinery requiring variable speed control.
Wide Frequency Range: Provides speed control flexibility with an output frequency up to 400 Hz.
Robust & Compact Design: Engineered for industrial environments with a durable build and compact footprint for ease of installation .
Part of a Legacy Series: As a member of the respected Varispeed G5 family, it is a reliable choice for maintaining or upgrading existing systems .
For similar applications or as alternatives, consider these Yaskawa G5 series models:
CIMR-G5U4011: A higher current model within the 400V class for larger motor loads .
CIMR-G5U42P2 / 4015: Other models in the same 460V class, offering different power ratings for scaled applications .
Cross-Reference Equivalents: The G5 series is often cross-referenced with models like the MagneTek GPD515C-C006 and Saftronics VG553P7, offering alternative sourcing options .
Q1: What is the power rating of the CIMR-G5U43P7?
This drive has a power rating of 5 horsepower (3.7 kW) and is designed for use with a 380-460 VAC, three-phase power supply .
Q2: What is the maximum output frequency of this drive?
The CIMR-G5U43P7 can provide an output frequency up to 400 Hz, which allows for a wide range of motor speed control .
Q3: What is the rated output current for this model?
The rated output current is 8.5A, with a maximum current rating of 10.2A .
Q4: What product series does the CIMR-G5U43P7 belong to?
This drive is part of the Yaskawa Varispeed 616G5 series, a well-known family of general-purpose AC drives.
