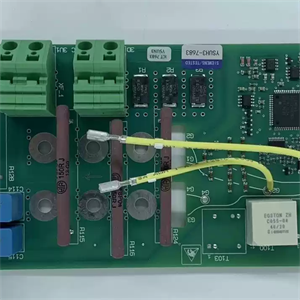

Siemens C98043-A7002-L1-12 DC Governor Power Board (6RA70 Series)

Key Features

• Core Power/Trigger Board – Serves as the main power supply and trigger drive core for the 6RA70 DC speed controller

• Thyristor Trigger Pulse Generation – Provides precise control of rectifier bridge conduction

• Multiple DC Outputs – Supplies 5V, 12V, and 24V DC power for control and drive circuits

• Integrated Protection – Overvoltage, overcurrent, short circuit, and overheating protection ensure system safety

• Industrial-Grade Coating – Triple-proof coating for dust, moisture, and electromagnetic interference resistance

• Compact PCB Design – Compatible with internal installation, saving cabinet space

• Hot Swappable – Supports replacement without extended downtime

Technical Parameters

Core Advantages

1. Critical Power and Trigger Core

The C98043-A7002-L1-12 is the core power/trigger board of the 6RA70 DC speed controller. It provides the essential trigger pulses that control the thyristor bridge, directly determining the drive's output voltage and current regulation accuracy. Without this board functioning correctly, the drive cannot produce controlled DC output.

2. Comprehensive Protection Integration

The board integrates multiple protection functions including overvoltage, overcurrent, short circuit, and overheating protection. This consolidated design ensures that critical power section signals are monitored and protected through a single board, enhancing overall system reliability.

3. Proven in Demanding Industrial Applications

The 6RA70 platform with the C98043-A7002 board is widely deployed in metallurgy, papermaking, and machine tool applications. In high-speed bar rolling lines, the C98043-A7002 handles analog data acquisition and excitation circuit trigger pulses, contributing to precise speed regulation in multi-stand rolling mills.

4. Essential for Existing 6RA70 Installations

Despite being discontinued, the C98043-A7002-L1-12 remains essential for maintaining the large installed base of 6RA70 drives. Stock availability ensures that existing DC drive systems in critical production lines can be maintained without complete drive replacement.

5. Industrial-Grade Construction

The board features triple-proof coating for dust, moisture, and electromagnetic interference resistance, along with a fanless design for low noise and low failure rate. These characteristics make it suitable for harsh industrial environments.

Applications

The Siemens C98043-A7002-L1-12 is deployed across a wide range of DC drive applications:

Primary Functions

• Thyristor Triggering – Generates gate pulses for armature and field converters

• Power Distribution – Supplies 5V/12V/24V DC to control circuits

• Analog Data Acquisition – Processes feedback signals for closed-loop control

• Field Circuit Control – Manages excitation trigger pulses

Recommended Models & Related Products

Critical Sourcing Note: The L-series suffix (L1, L2, L4, etc.) indicates configuration-specific variants. Confirm the exact board number against your original installed board's label. Different variants may have different output characteristics.

What's Included

• 1 × Siemens C98043-A7002-L1-12 Power Interface Board

Note: Drive unit, CUD1 control board, and other power section components are sold separately.

Why Buy From Us?

• New and Original – Genuine Siemens product

• In Stock – Ready to ship immediately

• Fast Shipping – Expedited shipping options available

• Warranty Included – Purchase with confidence

• Technical Support – Drive compatibility assistance available

Frequently Asked Questions (FAQ)

Q1: What is the Siemens C98043-A7002-L1-12?

It is a Power Interface Board (PIB) for the SIMOREG DC-MASTER 6RA70 series DC drive. It generates thyristor trigger pulses, provides power supply distribution, and handles analog data acquisition for the drive's control section.

Q2: What is the difference between C98043-A7002-L1 and L1-12?

The L1 designation indicates the base configuration. The L1-12 suffix indicates a specific revision or variant within the L1 family. Both are L1-generation boards, but the -12 revision may incorporate manufacturing or component updates. Always verify the exact board number against your existing PCB.

Q3: What is the difference between C98043-A7002 and C98043-A7001?

C98043-A7001 is the CUD1 control board (the "brain" handling communication, data processing, and overall control). C98043-A7002 is the Power Interface Board handling trigger pulse generation and power distribution.

Q4: What are the symptoms of a failed C98043-A7002 board?

Failed or incorrect thyristor trigger pulses lead to symptoms including uneven firing, asymmetric armature current, pulsating torque, and unstable DC output. The drive may fail to start, display fault codes, or exhibit abnormal behavior. Field reports indicate that board failure can sometimes cause cascading damage to other components like the CUD1 board.

Q5: Can I replace an L1 board with an L4 board?

No. The L1 and L4 variants serve different drive configurations. L1 is for single-quadrant (1Q) motoring-only operation; L4 is for four-quadrant (4Q) regenerative drives. They are not directly interchangeable.

Q6: What is the country of origin?

Germany.

Q7: What is the weight of this board?

Approximately 1.6 kg.

Q8: Is this a genuine Siemens product?

Yes. This is a new and original Siemens spare part with part number C98043-A7002-L1-12.

Q9: What should I verify before ordering?

Always verify the exact board number (L1 vs. L1-12 vs. L4) against your original installed board's label, confirm your 6RA70 drive model, and check whether your drive is a 1Q or 4Q unit from its order number or rating plate.

Q10: Can this board cause damage to other components if it fails?

Field experience indicates that when the C98043-A7002 (excitation/power board) fails, it can sometimes cause damage to the CUD1 control board through the connecting ribbon cable. It is recommended to inspect both boards if one has failed.
