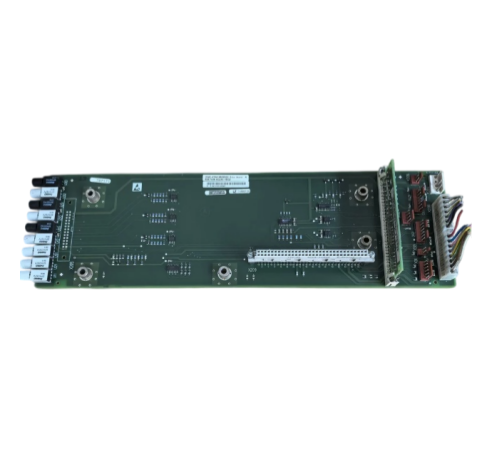

Siemens 6SE7038-6GL84-1BG2 IVI Inverter Interface Module

Key Features

• Logic-to-Power Interface – Serves as the primary operational bridge between high-voltage IGBT inverter blocks and the low-voltage central processing unit (CU) board

• Isolated Gating Pulse Distribution – Manages high-speed PWM gating commands with optoelectronic isolation to protect sensitive control logic

• Real-Time Feedback Routing – Processes current sensor feedback and heat sink thermal statuses back into system monitoring registers

• Core Logic Protection – Onboard isolation paths block common-mode voltage ripples, inductive switching transients, and high-frequency commutation noise

• cULus Approved – Certified for industrial use

• BG2 Revision – Successor to BG0 and BG1, with full backward compatibility

Technical Parameters

Core Advantages

1. The Critical Signal Bridge in Large Drives

In a SIMOVERT MASTERDRIVES chassis unit, the drive architecture separates the intelligence (CUD1 control board) from the muscle (IGBT power modules). The CUD runs control algorithms and outputs PWM switching commands; the IVI board receives these commands and routes them to the gate drive boards that physically drive the IGBT gates. Without the IVI board, the drive cannot translate digital commands into physical power switching.

2. Optoelectronic Isolation for Core Logic Protection

The IVI board establishes a clean, independent physical barrier between the volatile inverter power stages and the sensitive digital processing environment. Its onboard isolation paths block common-mode voltage ripples, inductive switching transients, and high-frequency commutation noise from leaking into the shared control bus. This protection is essential for maintaining the integrity of the control system in high-power switching environments.

3. Essential for Large-Chassis 6SE70 Systems

The 6SE7038 base designation identifies units in the higher-power bracket of the 6SE70 series, with the GL designation indicating large-frame chassis variants delivering current capacity for multi-hundred-kilowatt applications. The IVI board is a critical spare for maintaining these heavy-duty drives in rolling mills, extruder lines, ship propulsion, heavy hoists, and paper machines.

4. Aftermarket Availability

Although the SIMOVERT MASTERDRIVES platform is discontinued, the 6SE7038-6GL84-1BG2 IVI board remains available through industrial aftermarket channels. Both new and refurbished units are commonly stocked, ensuring that existing 6SE70 installations can be maintained without complete drive replacement.

Applications

The Siemens 6SE7038-6GL84-1BG2 is deployed across a wide range of heavy industrial drive applications:

Primary Functions

• Gating Pulse Distribution – Routes PWM commands from CUD to IGBT gate drivers

• Feedback Serialization – Routes current and temperature data back to control

• Signal Isolation – Protects low-voltage control from high-voltage transients

• Interlock Processing – Prevents upper/lower IGBT simultaneous conduction

Recommended Models & Related Products

Note: The BG2 revision is fully compatible with earlier BG0 and BG1 revisions in the same drive type. Always verify the exact board number against your existing unit before ordering.

What's Included

• 1 × Siemens 6SE7038-6GL84-1BG2 IVI Inverter Interface Board

Note: Drive unit, CUD1 control board, and other power section components are sold separately.

Why Buy From Us?

• In Stock – Ready to ship immediately

• Fast Shipping – Expedited shipping options available

• Warranty Included – Purchase with confidence

• Technical Support – Drive compatibility assistance available

Frequently Asked Questions (FAQ)

Q1: What is the Siemens 6SE7038-6GL84-1BG2?

It is an IVI (Inverter Interface Board) for the SIMOVERT MASTERDRIVES 6SE70 series. It serves as the signal bridge between the drive's CUD1 control unit and the IGBT inverter power stage, routing gating commands and feedback signals.

Q2: What happens if the IVI module loses communication with the main CPU?

A breakdown in signal transmission blocks critical gate-firing data and feedback loops. This instantly trips an F056 (IVI Initialization Fault), an inverter overcurrent fault, or a gating pulse timeout on the PMU display, triggering an immediate hardware shutdown to safeguard the power section.

Q3: Is it safe to replace the IVI module while the DC bus capacitors remain charged?

No. Removing or installing this interface module while the drive is connected to AC mains or while the DC link retains residual voltage is restricted. Pulling the board under load can cause inductive voltage arcs, break active safety interlocks, and cause permanent destructive failures within the primary control board electronics.

Q4: What is the difference between BG0, BG1, and BG2 revisions?

The BG2 is the current production revision, succeeding BG0 and BG1. It maintains full physical and functional compatibility with earlier revisions in the same drive type.

Q5: What drive format is this IVI board compatible with?

This board is designed for large-chassis (GL series) SIMOVERT MASTERDRIVES units covering the 380–690V three-phase voltage range.

Q6: What is the country of origin?

Germany.

Q7: What is the net weight of this module?

Approximately 0.2 kg (0.44 lbs).

Q8: Is this a genuine Siemens product?

Yes. This is a genuine Siemens IVI board for the SIMOVERT MASTERDRIVES platform.

Q9: What should I verify before ordering?

Always verify the exact board number (BG2 revision) against your original installed board's label, confirm your drive chassis size (GL series for this board), and check the voltage class of your drive (380–460V, 500–575V, or 660–690V).

Q10: Is the IVI board repairable?

Some aftermarket suppliers offer repair services for this board, though availability varies. Replacement with a tested spare is often the faster option for minimizing downtime.
