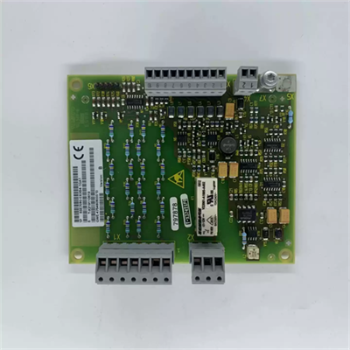

Siemens 6SE7090-0XX84-1GA1 SIMOVERT MASTERDRIVES VSB Module

Key Parameters and Features

Core Features & Advantages

• Critical for AFE Synchronization: The module's standout feature is its role in enabling the AFE inverter to synchronize with the power supply. Without accurate three-phase voltage measurement, the AFE cannot switch in sync with the line, causing synchronization faults during startup. The VSB provides the precise phase angle and frequency data required for this synchronization .

• Three-Phase Measurement Architecture: The VSB measures all three AC supply phases, not just one or two. This three-phase measurement is essential for:

  • Phase balance monitoring: Industrial supplies are not perfectly balanced; a 5% imbalance between phases affects the AFE's ability to draw equal current from each phase. The VSB's three-phase measurement allows the CUSA to detect imbalance and correct the switching pattern .

  • Phase loss detection: Loss of one supply phase produces a different voltage signature than low voltage. Three-phase measurement allows the VSB to distinguish this condition and enable appropriate protection responses (phase loss shutdown vs. undervoltage alarm) .

  • Zero-crossing detection: The AFE's synchronization algorithm uses zero-crossing values of each supply phase to track supply frequency and phase angle. Three-phase zero-crossing data provides three independent phase-locked loop references, improving synchronization accuracy and speed .

• Direct Interface to CUSA Control Module: The VSB delivers all measured parameters as real-time analog signals to the CUSA (AFE control module), which continuously uses them for switching calculations. If the VSB fails, the AFE becomes a standard diode rectifier and experiences synchronization faults on startup .

• Essential Spare Part for AFE Systems: As the SIMOVERT MASTERDRIVES series is discontinued, the VSB module is available as a replacement part through third-party suppliers. It is critical for maintaining existing AFE installations where the drive hardware remains in service .

Typical Applications

The 6SE7090-0XX84-1GA1 is used as a critical component in SIMOVERT MASTERDRIVES AFE drive systems across industrial applications requiring regenerative operation:

• AFE Infeed Units: Monitoring and synchronization of active front end drives

• Regenerative Drive Systems: Applications where energy is fed back to the supply

• Industrial Drives: Systems requiring four-quadrant operation and reactive power compensation

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 6SE7090-0XX84-1GA1?

A: It is a VSB (Voltage Sensor Board) for SIMOVERT MASTERDRIVES AFE systems. Its role is to continuously measure the three-phase AC supply voltage and provide real-time analog signals to the CUSA control module for AFE synchronization and protection .

Q2: Is the 6SE7090-0XX84-1GA1 still in production?

A: No. The SIMOVERT MASTERDRIVES series (6SE70) was discontinued by Siemens around 2010. The VSB module is available as a spare part through third-party suppliers and surplus channels .

Q3: What happens if the VSB module fails?

A: If the VSB fails, the AFE infeed unit cannot synchronize with the power supply on startup, resulting in synchronization alarms before the DC bus reaches operating voltage. The AFE effectively becomes a standard diode rectifier, losing its active control and regenerative capabilities .

Q4: How does the VSB physically connect to the AC supply?

A: The VSB connects to the power supply input terminals through a voltage divider or transformer-coupled measurement circuit. It brings a scaled-down representation of each phase voltage to the signal-level electronics .

Q5: What are the key measurement parameters provided by the VSB?

A: The VSB provides: exact phase angle of each supply phase, instantaneous voltage amplitude of each phase, and supply frequency (updated every cycle) .

Q6: What is the significance of three-phase measurement versus single-phase?

A: Three-phase measurement enables phase balance monitoring (detecting supply imbalance), phase loss detection (distinguishing phase loss from low voltage), and improved synchronization accuracy through three independent zero-crossing references .

Q7: What is the recommended replacement for MASTERDRIVES AFE systems?

A: Siemens recommends migrating to the SINAMICS platform for new installations. For AFE applications, the SINAMICS S120 with Active Line Module (ALM) provides equivalent regenerative functionality. For existing MASTERDRIVES installations, refurbished VSB modules are available through third-party suppliers .

Q8: What are the physical characteristics of the VSB module?

A: The module weighs approximately 1.10 kg (net) with shipping weight of 2.50 kg. It is manufactured in Germany. Dimensions vary by source, with one listing indicating approximately 11 × 3 × 12 cm .

Recommended Models & Related Products

The 6SE7090-0XX84-1GA1 is part of the SIMOVERT MASTERDRIVES system. Below are related models and components:

Choosing the Right Model

• For existing MASTERDRIVES AFE systems: The 6SE7090-0XX84-1GA1 is the correct VSB module for maintaining AFE infeed units and restoring synchronization function .

• For system troubleshooting: Verify the VSB is providing correct voltage signals before replacing other AFE components. A failed VSB will cause synchronization faults even if other hardware is functional .

• For new installations or major upgrades: The SINAMICS S120 with Active Line Module (ALM) is the recommended modern replacement, offering equivalent regenerative functionality with active support from Siemens .
