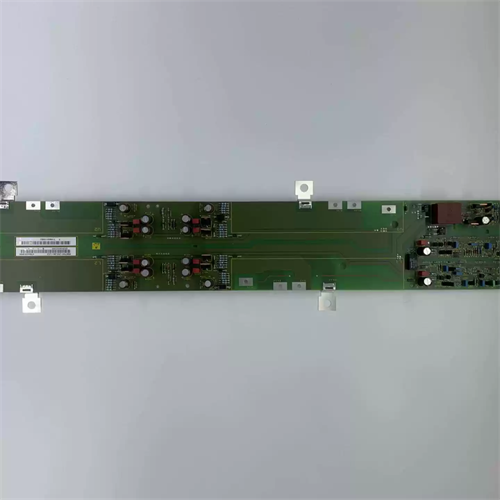

Siemens 6SE7041-2WL84-1JC0 Inverter Control Board IGD9

Key Parameters and Features

Core Features & Advantages

• High-Power Gate Drive Capability: The module's standout feature is its ability to drive IGBT power modules in high-power MASTERDRIVES systems operating at 675-930 V DC with current ratings up to 1230 A. It generates precise trigger pulses to ensure accurate switching and efficient energy conversion for applications in metallurgy, mining, cement, and paper industries.

• Comprehensive Protection and Detection Functions: The IGD9 board provides critical protection features including overcurrent and short-circuit detection, fault protection, and communication with the main control board. It monitors current and voltage parameters to safeguard the power section from damage during abnormal operating conditions.

• Direct Upgrade Path to 1JC1: The original 1JC0 variant has been succeeded by the 6SE7041-2WL84-1JC1, which is fully compatible and can be directly replaced with identical function and pin configuration. This provides a clear upgrade path for maintaining legacy MASTERDRIVES installations.

• Robust Industrial Design: Designed for demanding industrial environments, the board is suitable for high-power drive applications in steel mills, mining operations, and heavy process industries. It operates as a core spare part component in the 6SE7041 series inverter units.

Typical Applications

The 6SE7041-2WL84-1JC0 is used as a critical component in SIMOVERT MASTERDRIVES variable frequency drive systems across demanding industrial applications:

• Metallurgy and Steel: High-power drives for rolling mills and processing equipment

• Mining: Conveyor drives and heavy-duty pumping systems

• Cement Industry: Kiln drives and large mill applications

• Paper and Pulp: High-power drive systems for paper machines

• Pumps and Fans: Large variable-speed pump and fan drives

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 6SE7041-2WL84-1JC0?

A: It is an IGD9 inverter control board for SIMOVERT MASTERDRIVES. Its role is to drive the IGBT power modules, generate trigger pulses, perform current/voltage detection, provide fault protection, and communicate with the main control board.

Q2: Is the 6SE7041-2WL84-1JC0 still in production?

A: No. This product has been discontinued by Siemens with production ending in 2007. It is listed as Phase-Out/Discontinued status. The original 1JC0 is no longer manufactured, and the market primarily offers used/refurbished units or the new replacement 1JC1.

Q3: What is the difference between 6SE7041-2WL84-1JC0 and 6SE7041-2WL84-1JC1?

A: The 1JC0 is the original IGD9 board, while the 1JC1 is the upgraded replacement. The 1JC1 is fully compatible and can be directly replaced with identical functions and pin configuration. However, there is one difference: the upper right IGBT connection marked "C" has no electrical connection on the old 1JC0 card but has a connection on the new 1JC1 card.

Q4: What are common failure modes for this IGD9 board?

A: Common defects include IGBT drive abnormalities, trigger pulse loss, overcurrent/short-circuit false alarms, and communication interruptions. Power supply related issues such as blown fuses, defective rectifier bridge, and damaged DC bus capacitors can also occur.

Q5: What safety precautions should be taken when replacing this board?

A: Before replacement:

• Power off and discharge the DC bus (high voltage hazard)

• Verify version and serial number match with the main control board

• Check fiber optic/communication interfaces, cables, and power terminals

• After replacement, re-download parameters and perform motor identification

Q6: What is the significance of the "C" connection difference between 1JC0 and 1JC1?

A: According to Siemens technical forum discussions, the old 1JC0 card has no electrical connection for the upper right IGBT marked "C", while the new 1JC1 card has this connection. Users have questioned whether an extra screw should be mounted or if it should remain electrically isolated.

Q7: What are the key technical specifications?

A: The module operates at 675-930 V DC with a rated current of 1230 A. It supports Vector Control, V/f Control, and Direct Torque Control (DTC). The net weight is approximately 0.53 kg with dimensions of about 30.60 × 22.10 × 8.70 cm.

Q8: Can the module be repaired?

A: Yes, repair services are available from third-party suppliers. Companies like EICHLER offer repair services for the 6SE7041-2WL84-1JC0. The repair typically involves component-level diagnosis and replacement of failed components on the board.

Recommended Models & Related Products

The 6SE7041-2WL84-1JC0 is part of the SIMOVERT MASTERDRIVES system. Below are related models and components:

Choosing the Right Model

• For existing MASTERDRIVES systems with 1JC0: The 6SE7041-2WL84-1JC1 is the recommended replacement as it is fully compatible and represents the upgraded version.

• For system troubleshooting: Use the 6SE7090-0XX84-1FK0 test box for locating damaged IGBT devices before replacing power hardware.

• For new installations: The SINAMICS platform is the recommended modern replacement, offering enhanced performance and active support from Siemens.
