The Siemens 6DL1155-6AU00-0EM0 is a PROFINET interface module IM 155-6 PN HA from the SIMATIC ET 200SP HA (High Availability) distributed I/O system. The module supports multi-hot swap capability, allowing multiple I/O modules to be replaced during operation without system shutdown. With an integrated 2-port switch and support for media redundancy (MRP), it ensures continuous communication in critical process industries such as power generation, oil & gas, and chemical plants.
Item No :
6DL1155-6AU00-0EM0Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
GermanyShipping Port :
WuhanLead Time :
3~5 daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Siemens |
| Model | 6ES7157-0AD82-0XA0 |
| Product Family | SIMATIC DP, Distributed I/O |
| Product Type | DP/PA Coupler Ex [ia] (FDC157 Ex) |
| Function | Field device interface between PROFIBUS DP and PROFIBUS PA |
| PROFIBUS DP Interface | 9-pin Sub-D, max. 45.45 kbit/s |
| PROFIBUS PA Interface | Max. 31.25 kbit/s, IEC 61158-2 compliant |
| Max PA Devices | 31 per segment |
| PA Output Current | Max. 110 mA |
| Supply Voltage | 24 V DC (20.4 – 28.8 V) |
| Current Consumption | Max. 400 mA |
| Power Loss | Typ. 7 W |
| Explosion Protection | Ex [ia] IIC; Uo max. 15 V, Io max. 247 mA, Po max. 1.95 W |
| Galvanic Isolation | Between DP/PA and all other circuits: Yes |
| Insulation Test Voltage | 500 V AC |
| Protection Class | IP20 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | Max. 95% |
| Dimensions (W x H x D) | 80 x 125 x 130 mm |
| Weight | Approx. 550 g |
| Diagnostic LEDs | DP bus activity (yellow), PA bus activity (yellow), 24V supply OK (green) |
| Lifecycle Status | Active (PM300) – Planned phase-out start: October 2027 |
| Model | Description | Typical Application |
|---|---|---|
| 6ES7157-0AD82-0XA0 (this model) | DP/PA Coupler Ex [ia], 110 mA, intrinsically safe | Hazardous area PA device integration |
| 6ES7157-0AC85-0XA0 | DP/PA Coupler FDC157-0, non-Ex version | Non-hazardous area PA device integration |
| 6ES7157-0AD81-0XA0 | Predecessor Ex [ia] coupler (product cancelled) | Legacy hazardous area installations |
| 6ES7153-2BA82-0XB0 | IM 153-2 HF interface module for DP/PA Link | Full-speed DP network with PA segment isolation |
| 6ES7195-7HG80-0XA0 | Bus Module BMFDC/FDC (redundant) | Redundant DP/PA coupler configurations |
| 6ES7195-7HF80-0XA0 | Bus Module BM DP/PA | Standard coupler mounting base |
Q1: What is the difference between a DP/PA Coupler and a DP/PA Link?
A DP/PA Coupler (like the 6ES7157-0AD82-0XA0) connects PA instruments directly to the DP network, but this requires reducing the entire DP network speed to 45.45 kbit/s. A DP/PA Link uses an IM 153-2 interface module with up to 5 couplers, allowing the DP network to operate at full speed (up to 12 Mbps) while the couplers handle PA communications independently .
Q2: Which hazardous areas is this coupler suitable for?
The 6ES7157-0AD82-0XA0 is an Ex [ia] version with intrinsic safety protection. It is suitable for connecting PA devices in Zone 0, Zone 1, and Zone 2 hazardous areas. The coupler itself is installed in Zone 2, while the intrinsically safe PA segment can extend into Zone 0/1 .
Q3: How many PA field devices can be connected to this coupler?
The coupler supports up to 31 PA field devices per segment. The maximum output current to PA devices is 110 mA, which limits the number of devices based on their individual current consumption .
Q4: What software is required to configure this coupler?
The coupler is configured using STEP 7 V5.3 SP3 and HSP0095 or higher, SIMATIC PCS 7 V7.0 and higher, or PCS neo V3.1 and higher. For new configurations, STEP 7 V5.5 SP4 and HSP253 or higher is recommended.

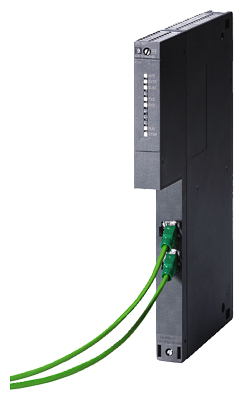

The Siemens 6GK7443-1EX30-0XE0 is a Communications Processor CP 443-1 that connects SIMATIC S7-400 automation systems to Industrial Ethernet and PROFINET networks.

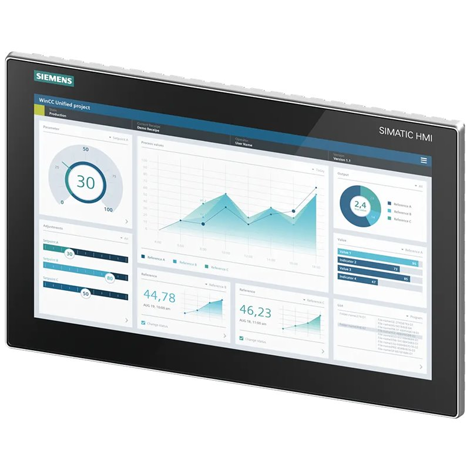

The Siemens 6AV2128-3UB06-0AX1 is a SIMATIC HMI MTP1900 Unified Comfort Panel, an 18.5-inch widescreen multi-touch HMI designed for advanced industrial visualization. As part of the Unified Comfort Panel family, it runs the SIMATIC Industrial OS and is configured with WinCC Unified Comfort V16 or higher within TIA Portal.
The Siemens 6AV2128-3QB06-0AX1 is a SIMATIC HMI MTP1500 Unified Comfort Panel, a 15.6-inch widescreen multi-touch HMI designed for advanced industrial visualization. As the successor to the TP1500 Comfort Panel, it runs the SIMATIC Industrial OS and is configured with WinCC Unified Comfort V16 or higher within TIA Portal.
The Siemens 7ME6910-2CA30-1AA0 is a SITRANS FM MAG 5000 electromagnetic flow transmitter designed for precise flow measurement in industrial process applications. This 19-inch rack-mount version features an aluminum housing with IP20/NEMA 2 protection, a 3-line alphanumeric display, and supports a wide power supply range of 11–30 V DC or 11–24 V AC.
The Siemens 6AV2124-0MC01-0AX0 is a SIMATIC HMI TP1200 Comfort Panel featuring a 12.1-inch widescreen TFT display with 16 million colors and 1280 x 800 pixel resolution. It is a pure touch-operated HMI designed for advanced visualization and control tasks in industrial automation, configured using WinCC Comfort V11 or higher within the TIA Portal.
The Siemens 6ES7547-1JF00-0AB0 is a CM 8xIO-Link communication module for the SIMATIC S7-1500 and ET 200MP systems, serving as an IO-Link Master for connecting intelligent IO-Link field devices. It provides 8 IO-Link ports compliant with IO-Link protocol V1.0 and V1.1, supporting simultaneous control of all 8 ports with a minimum cycle time of 2 ms.
The Siemens 6ES7541-1AB00-0AB0 is a CM PtP RS422/485 HF communication module for the SIMATIC S7-1500 and ET 200MP systems, designed for high-performance point-to-point serial communication. It features a short-circuit-proof, electrically isolated RS422/485 interface supporting transmission rates from 300 bps to 115.2 kbps, and is compatible with Freeport, 3964(R), USS, and Modbus RTU protocols.
The Siemens 6DL1155-6AU00-0EM0 is a PROFINET interface module IM 155-6 PN HA from the SIMATIC ET 200SP HA (High Availability) distributed I/O system. The module supports multi-hot swap capability, allowing multiple I/O modules to be replaced during operation without system shutdown. With an integrated 2-port switch and support for media redundancy (MRP), it ensures continuous communication in critical process industries such as power generation, oil & gas, and chemical plants.
