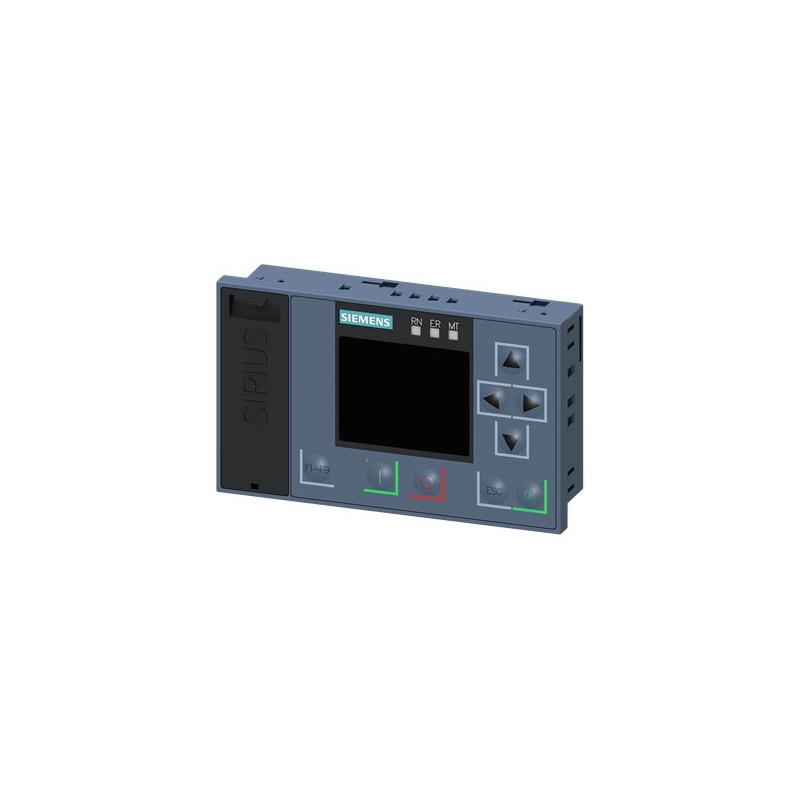

The Siemens 3RW5980-0HF00 is a SIRIUS 3RW59 High-Feature HMI Module designed for use with SIRIUS 3RW5 series soft starters. This plug-in module serves as a local operator interface for parameterization, diagnostics, and monitoring of soft starter functions, providing comprehensive on-site access to critical operating data.
Item No :
3RW5980-0HF0Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
CzechShipping Port :
WuhanLead Time :
3~5 daysWeight :
5kg| Specification | Description |
|---|---|
| Manufacturer | Siemens |
| Model | 3RW5980-0HF00 |
| Product Family | SIRIUS 3RW59 Accessories |
| Product Type | HMI Module High-Feature |
| Compatible Soft Starters | 3RW50, 3RW51, 3RW52, 3RW55 |
| Mounting Type | Snap-on mounting (direct to soft starter) |
| Dimensions (H x W x D) | 68 mm x 111 mm x 32.15 mm |
| Net Weight | 0.138 kg |
| Operating Temperature | -25°C to +60°C (derating above 40°C) |
| Storage Temperature | -40°C to +80°C |
| Protection Class | IP20 (front), finger-safe |
| Environmental Category | 3K6, 3C3, 3S2, 3M6 |
| Approvals | cULus, EAC, CE, KC, ABS, BV, DNV, LR, PRS |
| Country of Origin | Czech Republic |
| Lifecycle Status | Active |
| Model | Description | Typical Application |
|---|---|---|
| 3RW5980-0HS00 | HMI Module Standard (basic display) | Basic parameterization and monitoring |
| 3RW5980-0CP00 | PROFIBUS DP Communication Module | PROFIBUS network integration |
| 3RW5980-0CS00 | PROFINET Communication Module | PROFINET/Ethernet integration |
| 3RW5980-0CT00 | Modbus TCP Communication Module | Modbus TCP network integration |
| 3RW5980-0CR00 | Modbus RTU Communication Module | Serial Modbus integration |
| 3RW5980-0CE00 | EtherNet/IP Communication Module | EtherNet/IP network integration |
Q1: What is the primary function of this module?
The 3RW5980-0HF00 is a High-Feature HMI module that provides local operator interface capabilities for SIRIUS 3RW5 soft starters. It enables on-site parameterization, monitoring, and diagnostics of soft starter functions without requiring external programming tools .
Q2: Which soft starters are compatible with this HMI module?
The 3RW5980-0HF00 is compatible with SIRIUS 3RW50, 3RW51, 3RW52, and 3RW55 series soft starters .
Q3: How is this module mounted?
The module uses snap-on mounting for direct attachment to the soft starter. It is designed for vertical mounting surfaces and can be rotated ±90° and tilted forward or backward ±22.5° for optimal viewing angle .
Q4: What is the difference between the High-Feature (0HF00) and Standard (0HS00) HMI modules?
The High-Feature module (3RW5980-0HF00) offers advanced functionality including enhanced diagnostics, more detailed parameter views, and comprehensive monitoring capabilities. The Standard module (3RW5980-0HS00) provides basic parameterization and monitoring functions .
Q5: Does this module require a separate power supply?
No. The HMI module is powered directly through the soft starter connection. It does not require a separate power supply.
