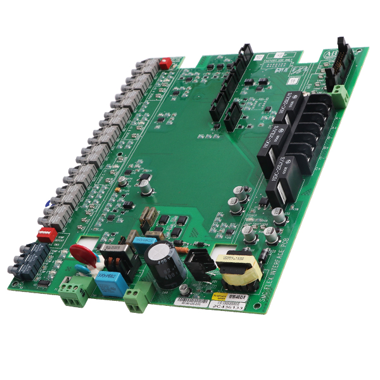

The Allen-Bradley 80190-440-03-R is an SMC Flex Interface Board designed for the SMC Flex (Bulletin 150) series of smart motor controllers. It ensures smooth acceleration and deceleration profiles for industrial motors, supporting advanced features such as pump control, soft start/stop, and electronic motor braking.
Item No :
80190-440-03-ROrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USA / MexicoShipping Port :
WuhanLead Time :
3~5 daysWeight :
5kg| Specification | Description |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 80190-440-03-R |
| Product Type | SMC Flex Interface PCB Board |
| Product Line | SMC Flex (Bulletin 150) Smart Motor Controller |
| Function | Signal interfacing, SCR gate drive logic, and communication bridge |
| Compatibility | SMC Flex (Bulletin 150) and SMC-50 series soft starters |
| Voltage Class | Typically used in 200V–600V systems |
| Current Rating | Designed for high-amperage frames (e.g., Frame 3, 4, or 5) |
| Mounting | Internal chassis mount via standoffs |
| Connectivity | Multi-pin ribbon cable headers and gate lead terminals |
| Communication Port | Integrated DPI (Drive Peripheral Interface) |
| Operating Temperature | 0°C to +50°C (32°F to +122°F) |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | Up to 80% (non-condensing) |
| Installation Altitude | Up to 1000 m MSL |
| Weight | Approx. 0.43 kg (0.95 lbs) – net; 3.0 kg (6.6 lbs) – shipping |
| Dimensions | 22.8 cm x 15.2 cm x 4.5 cm |
| Compliance | UL, CSA, CE (when installed in original equipment) |
| Country of Origin | USA / Mexico |
| Lifecycle Status | Discontinued – available as spare/replacement |
| Model | Description | Typical Application |
|---|---|---|
| 80190-440-02-R | Alternative revision interface board | Replacement for earlier revision units |
| 150-SCMD1 | SMC Flex Replacement Control Module | Complete control module replacement |
| 150-F135NBD | SMC Flex 135A Solid State Controller | Complete soft starter for 135A applications |
| 150-F251NBD | SMC Flex 251A Smart Motor Controller | Complete soft starter for 251A applications |
| 150-F85NBD | SMC Flex 85A Motor Controller | Complete soft starter for 85A applications |
| 20-COMM-E | EtherNet/IP Communication Module | Network integration via DPI port |
| 20-COMM-D | DeviceNet Communication Module | DeviceNet network integration |
| 20AD040A0AYNANC0 | 1756-L74 | 1747-L552C |
| 20BC037AOAYNANCO | 1756-EN2T | 1785-L40L |
| 20AC8P7A0 AYNANCO | 1756-EN2TR | 2094-BM01-S |
| 2711P-K6M20D | 1756-RM2 | 1769-L33ERM |
| 2711P-T10C22D9P | 1756-PAR2 | 1769-OF8C |
| 2711-K10C3 | 1756-A4 | 1769-IF8 |
| 2711-K5A2 | 1756-RMC1 | 1769-IF16C |
| 2711-K5A20 | 1756-PAR2 | 1769-IR6 |
| 2711P-T10C4D8 | 1756-N2 | 1769-OW16 |
| 2711P-T7C22D9P | 1756-A10 | 1769-PA4 |
| 2711P-RP8D | 1756-IF16 | 1747-L553/C |
| 2711P-T12W22D9P | 1756-OF8 | 1783-LMS8 |
| 2711P-T7C21DBS | 1756-IB16 | 1783-USBT |
| 2711PT15C21D8S | 1756-OB16 | 1784-CF64 |
| 2711P-T10C21D8S | 1756-TBCH | 1734-OE2C |
| 2711P-T12C4D8 | 1756-TBNH | 1734-IR2E |
| 2711P-RDT10C | 1756 L83E | 1734-OB8S |
| 2711P-K10C4D8 | 1756 IF8H | MVI56E-MNET |
Q1: What is the primary function of the 80190-440-03-R?
It is the interface board for SMC Flex soft starters. Its primary function is to manage the firing signals for the SCRs (Silicon Controlled Rectifiers) and coordinate data between the power section and the main control module. It acts as the critical communication and control bridge within the soft starter.
Q2: Can this board be hot-swapped?
No. Interface boards must be replaced only when the SMC-Flex assembly is fully de-energized. Wait at least 5 to 10 minutes after disconnecting power to allow internal capacitors to discharge before servicing. Always use a grounded anti-static wrist strap and handle the board by the edges only.
Q3: What are the common symptoms of a failing interface board?
Common failure signs include:
"Gate Fault" errors (F1 or F2 faults)
Inconsistent starting ramps
Total loss of communication between the HIM (Human Interface Module) and the power section
Pre-charge or internal communication failure
Q4: Does this board require firmware updates?
No. The board contains no programmable firmware or flash memory. All logic interpretation occurs in the connected SMC-Flex controller. Compatibility concerns arise only when paired with updated SMC-Flex controllers.
Q5: What is the difference between the 80190-440-03-R and the 80190-440-02-R?
The 80190-440-03-R is the latest revision of the interface board. The 80190-440-02-R is the earlier revision. The "-R" suffix typically denotes a revised or "Renewable" part, often used in maintenance and repair of high-horsepower motor control units. Both are functionally similar, but the -03-R revision includes updated circuitry and improved compatibility with newer controller firmware.
