The Allen-Bradley 1756-L73XT is an 8 MB ControlLogix-XT 5570 series controller from Rockwell Automation, specifically engineered for extreme industrial environments. The "XT" designation indicates conformal coating applied to the circuit board and an extended operating temperature range of -25°C to +70°C (-13°F to +158°F), enabling reliable operation in harsh conditions without climate-controlled enclosures.
Item No :
1756-L73XTOrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
5kg| Specification | Description |
|---|---|
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Model | 1756-L73XT |
| Product Family | ControlLogix-XT 5570 / Logix 5573 |
| Product Type | Programmable Automation Controller (PAC) |
| User Memory | 8 MB |
| I/O Memory | 0.98 MB |
| Maximum I/O | 128,000 digital / 4,000 analog |
| Maximum Connections | 500 |
| Motion Axes Supported | Up to 100 |
| Controller Tasks | 32 tasks, 100 programs per task |
| Local Programming Port | 1 USB |
| Embedded Network Port | No (requires separate communication module) |
| Non-Volatile Memory | Secure Digital (SD) card included |
| Replacement Battery | 1756-ESMCAPXT |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Conformal Coating | Yes (XT-rated) |
| Power Dissipation | 2.5 W typical |
| Backplane Current | 800 mA @ 5.1V DC; 5 mA @ 1.2V DC |
| Programming Software | Studio 5000 Logix Designer / RSLogix 5000 |
| Safety Certification | SIL 3, PLe |
| Lifecycle Status | Active Mature |
| Model | Description | Typical Application |
|---|---|---|
| 1756-L73 | Standard temperature version (0°C to +60°C), same 8 MB memory | Climate-controlled control rooms |
| 1756-L72XT | XT version with 4 MB memory | Extreme environments with smaller program requirements |
| 1756-L74XT | XT version with 16 MB memory | Extreme environments with larger program requirements |
| 1756-L73S | GuardLogix safety controller (8 MB standard + 4 MB safety) | Applications requiring integrated safety and standard control |
| 1756-ESMCAPXT | Replacement Energy Storage Module for XT controllers | Memory retention backup for XT series |
| 1756-EN2TXT | EtherNet/IP communication module (XT-rated) | Adding network connectivity in extreme environments |
Q1: What is the difference between the 1756-L73XT and the standard 1756-L73?
The 1756-L73XT features conformal coating on the circuit board and an extended operating temperature range of -25°C to +70°C, compared to the standard L73's 0°C to +60°C range. This makes the XT version suitable for harsh environments such as oil & gas facilities, mining operations, and outdoor installations without climate-controlled enclosures.
Q2: Does the 1756-L73XT have built-in Ethernet?
No. Like all 1756-L7x series controllers, the L73XT requires a separate communication module (e.g., 1756-EN2T or 1756-EN2TXT) for EtherNet/IP connectivity. It has only a USB programming port built in.
Q3: What is the user memory capacity of this controller?
The 1756-L73XT has 8 MB of user memory for program and data storage. This is sufficient for large, complex applications involving process control, motion, and discrete automation.
Q4: Can the 1756-L73XT be used in safety applications?
The controller itself supports SIL 3 and PLe certifications. However, for dedicated safety functions requiring GuardLogix capabilities, the 1756-L73S (with 4 MB safety memory) is the recommended model. The L73XT is primarily designed for standard control in extreme environments.
Q5: What is the replacement battery for the 1756-L73XT?
The controller uses the 1756-ESMCAPXT Energy Storage Module (ESM) for memory retention. Unlike traditional lithium batteries, the ESM eliminates maintenance and environmental disposal issues associated with lithium batteries.
The Allen-Bradley 1756-EN2TR is a dual-port EtherNet/IP communication module for the ControlLogix platform, designed to support Device Level Ring (DLR) topology for single-fault tolerant networks.

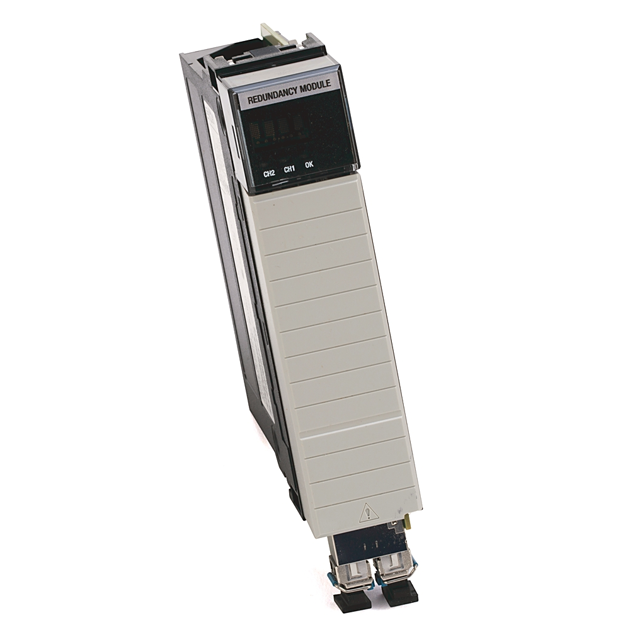

The Allen-Bradley 1756-RM2 is an Enhanced Redundancy Module for the ControlLogix platform, designed to support fully redundant controller architectures without additional programming.

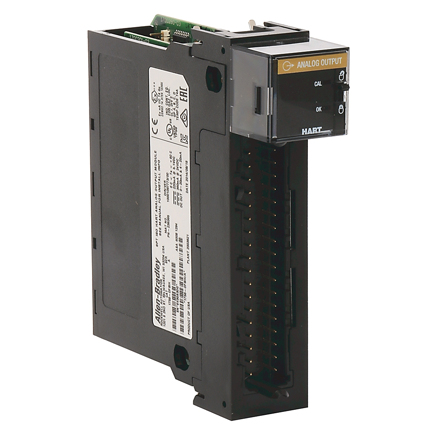

The Allen-Bradley 1756-OF8IH is an 8-channel isolated analog output module for the ControlLogix platform, featuring HART communication capability on every channel. This module provides precise 4–20 mA current outputs for controlling valves, positioners, and other field devices in process automation applications.

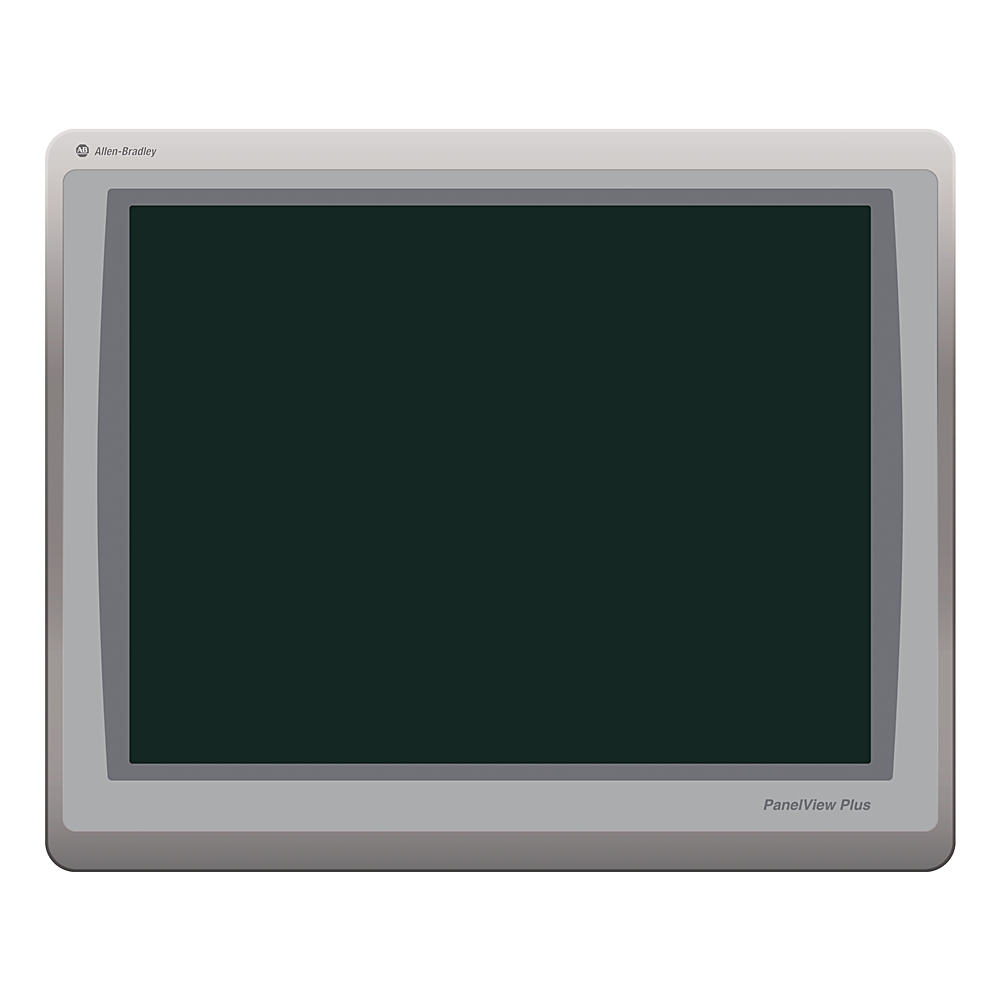

The Allen-Bradley 2711P-T15C22D9P is a PanelView Plus 7 Performance operator terminal featuring a 15-inch XGA color TFT touchscreen with 1024 x 768 resolution. Running on Windows CE 6.0 with extended features, this high-performance HMI terminal offers 512 MB user memory, dual Ethernet ports with Device-Level Ring (DLR) support, and three USB host ports for flexible connectivity.

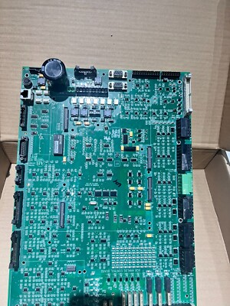

The Allen-Bradley 80190-560-02-R is an Analog Control Board (ACB) designed specifically for the PowerFlex 7000 Medium Voltage AC Drives . This critical PCB manages the processing of analog feedback signals and command references to ensure precise motor performance in high-power industrial applications.
The Allen-Bradley 20BC056A0AYNANC0 is a PowerFlex 700 adjustable frequency AC drive designed for industrial motor control applications. Operating on 400V AC, 3-phase input, this drive delivers 56A output current with a 30 kW normal duty rating and 22 kW heavy duty rating.
The Allen-Bradley 20BC105A0AYNANC0 is a PowerFlex 700 adjustable frequency AC drive designed for industrial motor control applications. Operating on 400V AC, 3-phase input, this drive delivers 105A output current with a 55 kW normal duty rating and 45 kW heavy duty rating.
The Allen-Bradley 20BC140A0AYNANC0 is a PowerFlex 700 adjustable frequency AC drive designed for demanding industrial motor control applications. Operating on 400V AC, 3-phase input, this drive delivers 140A output current with a 75 HP normal duty rating and 55 HP heavy duty rating, making it suitable for medium to large motors.
