New ABB CI854BK01 3BSE069449R1 PROFIBUS DP-V1 Communication Interface Module

New ABB CI854BK01 3BSE069449R1 PROFIBUS DP-V1 Communication Interface Module

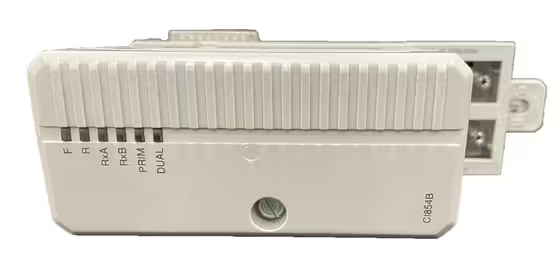

The ABB CI854BK01 3BSE069449R1 is a PROFIBUS DP-V1 communication interface module designed for the AC 800M controller family within the System 800xA distributed control system. It serves as the primary gateway between the controller and PROFIBUS field devices, enabling high-speed data exchange with remote I/O stations, intelligent transmitters, variable frequency drives, and valve positioners.

  • Item No :

    3BSE069449R1 CI854BK01

  • Order(MOQ) :

    1 Piece

  • Payment :

    EXW

  • Product Origin :

    Sweden

  • Shipping Port :

    Wuhan

  • Lead Time :

    3~5 days

  • Weight :

    3kg

  • Product Details



    Specification Description
    Manufacturer ABB
    Model CI854BK01
    Article Number 3BSE069449R1
    Product Family AC 800M / System 800xA
    Product Type PROFIBUS DP-V1 Communication Interface Module
    Communication Protocol PROFIBUS DP / DP-V1 (Class 1 & 2)
    Transmission Rate 9.6 kbit/s to 12 Mbit/s (auto-sensing)
    Number of Channels 2 (independent PROFIBUS ports)
    Physical Interface 2 x DB9 female connectors (RS-485)
    Max Nodes per Segment 32 nodes (without repeater); up to 125 with repeaters
    Line Redundancy Yes (dual-port configuration)
    Master Redundancy Yes (with second CI854B module)
    Hot Swap Yes (online replacement without system shutdown)
    Power Supply 24V DC via CEX-Bus (no external power required)
    Current Consumption Typ. 190 mA, Max. 240 mA
    Power Dissipation Typ. 4.6 W
    Operating Temperature 0°C to +55°C (some sources indicate +5°C to +55°C)
    Storage Temperature -40°C to +70°C
    Protection Class IP20
    Corrosion Protection ISA 71.04 G3 conformal coating
    Dimensions (W x H x D) 59 mm x 185 mm x 127.5 mm
    Weight (including base) Approx. 0.7 kg
    Baseplate TP854 (included in K01 kit)
    Certifications CE, UL, RoHS, WEEE; Marine (ABS, BV, DNV-GL, LR)
    Country of Origin Sweden

    Kit Contents (CI854BK01):

    • 1 x CI854B Communication Interface Module

    • 1 x TP854 Baseplate

    Related Product Model Recommendations



    Model Description Typical Application
    CI854BK01 (this model) PROFIBUS DP-V1 interface, dual-port, redundant Standard PROFIBUS DP integration with redundancy
    CI854AK01 Earlier version of CI854 series Legacy system replacement
    CI853K01 COMLI and MODBUS RTU communication interface Serial protocol applications
    CI855K01 ABB MasterBus 300 communication interface MasterBus 300 network integration
    CI856K01 ABB S100 I/O communication interface S100 I/O system connectivity
    CI867K01 MODBUS TCP communication interface Ethernet-based Modbus integration
    CI871K01 PROFINET IO communication interface PROFINET device integration
    TP854 Baseplate for CI854B Replacement mounting base
    BC810K02 CEX-Bus Interconnection Unit CEX-Bus segmentation and redundancy

    Payment & Delivery

    FAQs

    Q1: What is the primary function of the CI854BK01?

    The CI854BK01 is a PROFIBUS DP-V1 communication interface module that connects the AC 800M controller to PROFIBUS field devices. It acts as a master (Class 1 and Class 2) on the PROFIBUS network, managing data exchange with remote I/O stations, intelligent transmitters, drives, and other PROFIBUS-compatible devices .

    Q2: Does the CI854BK01 support redundancy?

    Yes. The module supports two levels of redundancy:

    • Line Redundancy: The two PROFIBUS ports can be connected to separate cable routes. If one cable fails, communication automatically switches to the backup line .

    • Master Redundancy: Two CI854B modules can be configured as a redundant master pair. Combined with CPU redundancy and CEX-Bus redundancy (via BC810), this creates a fully redundant communication architecture .

    Q3: Can the module be replaced while the system is running?

    Yes. The CI854BK01 supports hot-swap capability, allowing module replacement without interrupting controller operation or PROFIBUS communication. The configuration is stored in the controller and is automatically reloaded when a replacement module is inserted .

    Q4: How many PROFIBUS nodes can be connected to this module?

    Each PROFIBUS segment supports up to 32 nodes (including the master) without a repeater. With repeaters, the network can be extended to support up to 125 nodes .

    Q5: What are the common causes of PROFIBUS communication failures with this module?

    Common causes include:

    • Missing termination resistors – ensure 120Ω active terminators are installed at both physical ends of the PROFIBUS segment

    • Incorrect baud rate or address configuration – verify settings in Control Builder match the actual device configuration

    • CEX-Bus power supply issues – check that the backplane is providing 24V DC; LED indicators should show PWR and RUN status

    • Cable shielding/grounding problems – ensure the PROFIBUS cable shield is properly terminated at the cabinet entry point
