Q1: What is the primary function of the PP846A?
It is a human-machine interface (HMI) operator panel used for local process monitoring and control in ABB automation systems. It displays process data, alarms, and trends, and allows operators to adjust setpoints, acknowledge alarms, and issue control commands via the touchscreen or physical function keys.
Q2: Is the PP846A a touchscreen-only panel?

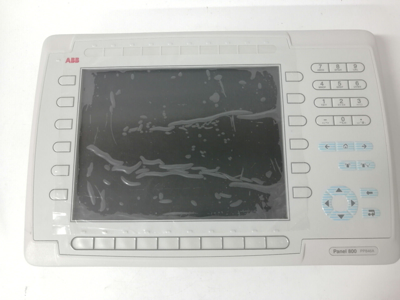

No. The PP846A features a hybrid design: a 10.4-inch resistive touchscreen combined with 24 physical membrane function keys. This ensures critical commands (E-Stop, Start, Mode Select) remain accessible even when operators wear gloves or work in wet conditions, or when the display is obscured.
Q3: Which ABB systems is the PP846A compatible with?
It is designed for seamless integration with ABB Ability™ System 800xA and AC 800M controllers. It also supports connection to Unitrol and other ABB automation platforms. The panel communicates via Modbus RTU/TCP, EtherNet/IP, and ABB Panel Bus.
Q4: What software is required to configure this panel?
The PP846A is configured using ABB Panel Builder 800, version 5.1 or higher. The physical function keys are mapped to specific function codes in the Panel Builder project and require proper configuration to operate correctly.
Q5: Is the PP846A hot-swappable?
No. The 24 V DC primary power must be disconnected from the rear power terminal block before mounting, wiring, or replacing the unit. Ensure the panel is fully de-energized before servicing.
