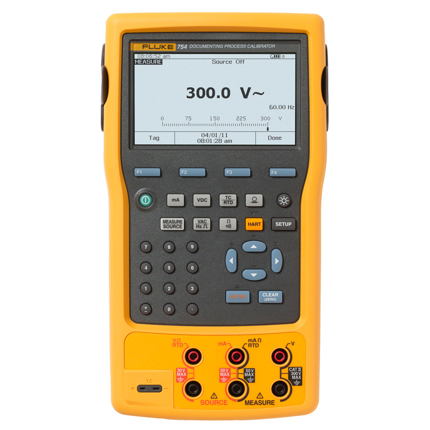

The Fluke 754 Documenting Process Calibrator-HART is a powerful, multifunction tool that combines the capabilities of several instruments into one handheld device. It can source, simulate, and measure pressure, temperature, and electrical signals for comprehensive testing and calibration of process instruments.
Item No :
FLUKE 754Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
5kg| Feature | Description |
|---|---|
| Manufacturer | Fluke |
| Model | 754 |
| Type | Documenting Process Calibrator with HART |
| Key Functions | Measures/sources voltage, current (mA), resistance, frequency, temperature (TC/RTD), and pressure (with modules) . |
| HART Capability | Integrated HART interface for device configuration, polling, and loop testing . |
| Display | High-brightness dual display . |
| Documentation | Automates calibration procedures, captures data, and records results to meet quality standards . |
| Power | Rechargeable Li-ion battery (approx. 10 hours) . |
| Warranty | 3 years . |
| Included Accessories | BC7240 battery charger, BP7240 battery pack, test leads, clips, soft case, USB and HART communication cables . |
| Category | Model | Description |
|---|---|---|
| Basic Process Calibrator | Fluke 725 | Multifunction calibrator with HART communication, without advanced documenting features. |
| Pressure Calibration Kit | Fluke 700PTPK2 | Pneumatic pressure test kit compatible with the 754 for field pressure calibration. |
| Pressure Modules | Fluke 700Pxx Series | 29 different pressure modules to expand the 754's pressure measurement and sourcing capabilities . |
| Non-Documenting Calibrator | Fluke 753 | A version of the 754 with identical measurement functions but no documenting capabilities . |
Q1: What are the primary functions of the Fluke 754?
It is designed to test, calibrate, and document process instruments. It can measure and source a wide range of parameters including voltage, current (mA), resistance, frequency, RTDs, thermocouples, and pressure .
Q2: Does the Fluke 754 include HART communication?
Yes, it has a built-in HART interface that allows direct communication with HART-enabled transmitters for configuring, polling, and testing, eliminating the need for a separate communicator .
Q3: How does the 754 differ from the 753 model?
The Fluke 754 is a documenting calibrator that can automatically create calibration reports and store data. The Fluke 753 offers the same measurement and sourcing capabilities but is a non-documenting version .
Q5: How long does the battery last, and is it rechargeable?
The 754 uses a rechargeable Li-ion battery pack (BP7240) that provides approximately 10 hours of continuous use . It is charged using the included BC7240 charger.
