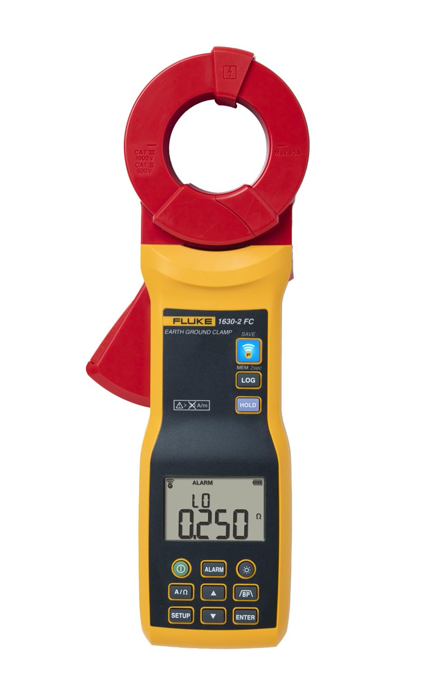

The Fluke 1630-2 FC is a stakeless earth ground clamp meter that measures ground loop resistance and AC leakage current without disconnecting parallel grounds.
Item No :
Fluke 1630-2 FCOrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
ChinaShipping Port :
ChinaLead Time :
3~5 daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Fluke |
| Model | 1630-2 FC |
| Product Type | Stakeless Earth Ground Clamp Meter |
| Ground Loop Resistance Range | 0.025 Ω to 1500 Ω |
| AC Leakage Current Range | 0.2 mA to 1000 mA |
| AC Current Range | 0.2 A to 30 A |
| Frequency Range | 40 Hz to 1 kHz |
| Jaw Opening | 40 mm (1.38 in) – accommodates thick ground conductors and busbars |
| Display | 9999-count LCD, 4 readings/second refresh rate |
| Data Logging Capacity | Up to 32,760 measurements |
| Logging Interval | 1 second to 59 minutes 59 seconds |
| Band-pass Filter | Selectable for noise rejection in AC leakage measurements |
| Alarm Function | User-defined high/low limit alarms |
| Max Voltage to Earth Ground | 1000 V |
| Safety Rating | CAT IV 600 V / CAT III 1000 V |
| IP Rating | IP30 (jaw closed) |
| Battery Type | 4 x AA alkaline (IEC/EN LR6) |
| Battery Life | >15 hours (ground resistance mode, backlight and RF off) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Weight | 880 g |
| Dimensions (H x W x D) | 283 x 105 x 48 mm |
| Wireless Connectivity | Fluke Connect® (not available in all regions) |
| What's in the Box | 1630-2 FC Clamp, hard case, loop resistance standard, 4 AA batteries, safety information guide, quick reference guide |
| Model | Description | Typical Application |
|---|---|---|
| Fluke 1625-2 | Advanced earth ground tester with 3- and 4-pole measurement capability | High-precision ground testing with auxiliary stakes |
| Fluke 1623-2 | Basic earth ground tester with 3-pole measurement capability | General-purpose earth ground testing |
| Fluke 1625-2 KIT | 1625-2 tester with full accessory kit | Comprehensive ground testing kit for professionals |
| Fluke 1623-2 KIT | 1623-2 tester with accessory kit | Budget-friendly full kit option |
Q1: What is the primary advantage of the Fluke 1630-2 FC over traditional ground testers?
The 1630-2 FC uses a stakeless measurement technique that eliminates the need for auxiliary ground stakes and disconnecting parallel grounds. This makes it ideal for indoor locations, paved areas, and power pylons where traditional test stakes cannot be driven .
Q2: What is the maximum resistance this clamp meter can measure?
The 1630-2 FC measures ground loop resistance from 0.025 Ω to 1500 Ω, covering the full range required for most grounding system verification applications .
Q3: Does the 1630-2 FC support wireless data transfer?
Yes. It supports the Fluke Connect® wireless system, allowing measurements to be viewed on a smartphone or tablet, stored in the cloud, and shared with team members. Note that this feature may not be available in all regions.
Q4: How many measurements can the 1630-2 FC store in memory?
The meter can store up to 32,760 measurements at user-defined logging intervals ranging from 1 second to 59 minutes and 59 seconds .
Q5: What safety certifications does the 1630-2 FC carry?
The 1630-2 FC is rated CAT IV 600 V / CAT III 1000 V, suitable for measurements at distribution and primary supply levels.
