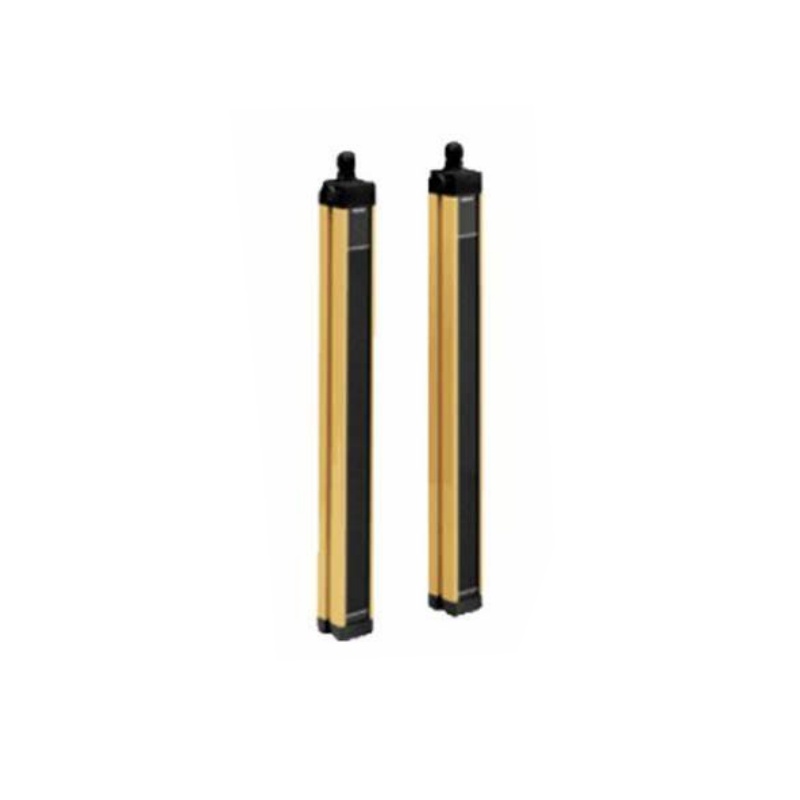

Pepperl+Fuchs SLCS60-1800-T Safety Light Curtain Emitter

Pepperl+Fuchs 202093-0014 SLCS60-1800-T Safety Light Curtain

The Pepperl+Fuchs 202093-0014 SLCS60-1800-T is the emitter unit of the SLCS60 series safety light curtain system. When paired with its corresponding receiver (SLCS60-1800-R), this unit projects a grid of 48 modulated infrared light beams across a protective field height of 1800 mm, creating a reliable safety barrier for personnel protection in industrial environments .



Designed to meet the highest safety standards, this self-monitoring light curtain system is rated Type 4 according to IEC/EN 61496-1, with SIL 3 (IEC 61508) and PL e (ISO 13849-1) safety integrity levels, making it suitable for the most demanding machine guarding applications.

  • Item No :

    202093-0014 SLCS60-1800-T

  • Order(MOQ) :

    1

  • Payment :

    EXW

  • Product Origin :

    Germany

  • Shipping Port :

    Wuhan, Hubei, China

  • Lead Time :

    3-5 days

  • Weight :

    2.5kg

  • Product Specification

    Pepperl+Fuchs 202093-0014 SLCS60-1800-T Safety Light Curtain

    Emitter Unit for 1800 mm Type 4 Safety Light Curtain System

    The safety light curtain consists of a transmitter and a receiver unit. The protected area is formed by infrared light beams transmitted from the transmitter unit

    to the receiver unit. The spacing between the individual light beams determines the minimum obstruction size (60 mm) that can be reliably detected within

    the entire protected area range.

    Key Features & Benefits

    • Type 4 Self-Monitoring: Meets the highest safety category (Type 4 per IEC/EN 61496-1) with continuous self-testing to ensure reliable fail-safe operation

    • High Safety Integrity: Certified to SIL 3 (IEC 61508) and PL e (ISO 13849-1) with PFHd of 1.5 E-8, providing the highest level of risk reduction

    • Extensive Protective Field: 1800 mm protection field height with sensing range from 0.2 up to 15 meters, accommodating a wide variety of machine guarding applications

    • 60 mm Resolution: Provides reliable detection of objects and body parts with 60 mm optical resolution (48 beams)

    • Integrated 7-Segment Display: Operation indicator display in the emitter simplifies alignment and provides immediate status feedback

    • Flexible Operating Modes: Supports selectable start/restart disable and transmission coding (A/B mode) via DIP switches for multi-system installations

    • IP67 Environmental Protection: Robust yellow-coated extruded aluminum housing ensures reliable performance in harsh industrial environments with dust and moisture exposure

    • Versatile Connection Options: Standard M20 cable gland with terminal compartment; optional M12 or DIN connectors available on request

    Technical Specifications



    Category Specification
    Manufacturer Pepperl+Fuchs
    Part Number 202093-0014
    Model SLCS60-1800-T
    Product Type Emitter Unit - Safety Light Curtain
    Series SLCS60
    Country of Origin Germany

    Optical & Field Specifications



    Parameter Detail
    Effective Detection Range 0.2 ... 15 m
    Protection Field Height 1800 mm
    Optical Resolution 60 mm
    Number of Beams 48
    Light Source Modulated infrared light (IRED)
    Opening Angle < 5 °

    Functional Safety Parameters



    Parameter Detail
    Safety Type (IEC/EN 61496) Type 4
    Safety Integrity Level (SIL) SIL 3
    Performance Level (PL) PL e
    Category (ISO 13849-1) Cat. 4
    PFHd 1.5 E-8
    Mission Time (TM) 20 years

    Electrical Specifications



    Parameter Detail
    Operating Voltage 24 V DC (-30% / +25%)
    No-Load Supply Current ≤ 100 mA
    Protection Class III (IEC 61140)

    Inputs (Emitter)



    Parameter Detail
    Test Input Reset input for system test
    Function Input Start release
    Activation Current approx. 10 mA
    Activation Time 0.03 ... 1 s
    Control Elements Switch for start/restart disable, transmission coding

    Indicators



    Parameter Detail
    Operation Indicator 7-segment display in emitter
    Status Indicator (Emitter) Yellow LED: Mode, test, or error

    Environmental & Mechanical Specifications



    Parameter Detail
    Ambient Temperature 0 ... 55 °C (32 ... 131 °F)
    Storage Temperature -25 ... 70 °C (-13 ... 158 °F)
    Relative Humidity Max. 95%, non-condensing
    Protection Rating IP67
    Housing Material Extruded aluminum profile, RAL 1021 (yellow) coated
    Optical Face Plastic pane
    Housing Length 1910 mm
    Width x Depth 52 mm x 55 mm
    Mass Approx. 5.7 kg
    Connection M20 cable gland (terminal compartment with screw terminals)

    Approvals & Certifications



    Certification Rating
    CE Compliant
    TÜV TÜV certified
    cULus Listed (UL File Number: E215245)
    UKCA Compliant

    System Components & Accessories

    The SLCS60-1800-T is part of a complete safety system. The following components are required or available for a full solution:



    Product Description
    SLCS60-1800-R Receiver unit (must be paired with the emitter)
    SB4-OR-4XP Safety control unit for category 4 applications
    TR 14/30/50/60 Universal test rod for device testing
    AA SLCT-01 Alignment aid for simplified installation
    OMH-SLCT Series Mounting accessories and brackets

    Applications

    The SLCS60 safety light curtain is ideal for a wide range of personnel protection and machine guarding applications:



    Industry Application
    Manufacturing Access guarding for automated machinery, robotic cells, and assembly lines
    Material Handling Conveyor system protection and palletizing machine guarding
    Packaging Machine entry protection and hazardous area perimeter guarding
    Automotive Press, stamping, and welding machine safeguarding
    Warehousing Automated storage and retrieval system personnel detection

    Ordering & Shipping Information



    Detail Information
    Condition New & Original
    Stock Status In Stock
    Warranty 12 Months
    Shipping Fast dispatch upon order confirmation
    Payment Terms T/T, Western Union

    Our Advantage

    Service Commitment

    Customer-Centric Approach: We strive to fulfill the distinct needs of our customers by offering tailored solutions and high-quality products.

    Professional Expertise

    We aim to save our customers' time and resources by leveraging our professional expertise, extensive experience, and robust supply chain network.

    Quality Assurance

    As a specialized supplier of electronic components, we guarantee the superior quality of our products.





Hot Tags :

Pepperl+Fuchs 202093-0014

SLCS60-1800-T Safety Light Curtain Emitter

P+F 202093-0014, SLCS60-1800-T

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Subject : Pepperl+Fuchs 202093-0014 SLCS60-1800-T Safety Light Curtain

Related Products

  • Pepperl + Fuchs S1SL-2AI-2C S1SD-1AI-1U.3 Passive Isolator Modules in Stock
    Pepperl + Fuchs S1SL-2AI-2C S1SD-1AI-1U.3 Passive Isolator Modules in Stock

    The Pepperl+Fuchs S1SL-2AI-2C is a 2-channel passive isolator for analog current signals in industrial automation. It is loop-powered and transfers 0/4 ... 20 mA signals from the field side to the control side with galvanic isolation. With 0.1% accuracy, 6.2 mm ultra-slim housing, and ATEX/IECEx Zone 2 certification, this device provides a reliable, space-saving solution for isolating current signals in applications where an external power supply is unavailable or undesirable.

  • Pepperl + Fuchs S1SD-1TI-1U S1SD-1AI-1R Temperature Converter New in Stock
    Pepperl + Fuchs S1SD-1TI-1U S1SD-1AI-1R Temperature Converter New in Stock

    The Pepperl+Fuchs S1SD-1TI-1U is a 1-channel temperature signal conditioner designed for isolating and converting analog temperature signals from the field to a control system. It accepts inputs from a wide variety of sensors, including thermocouples, RTDs, potentiometers, and millivolt sources, and provides a standard current or voltage output..

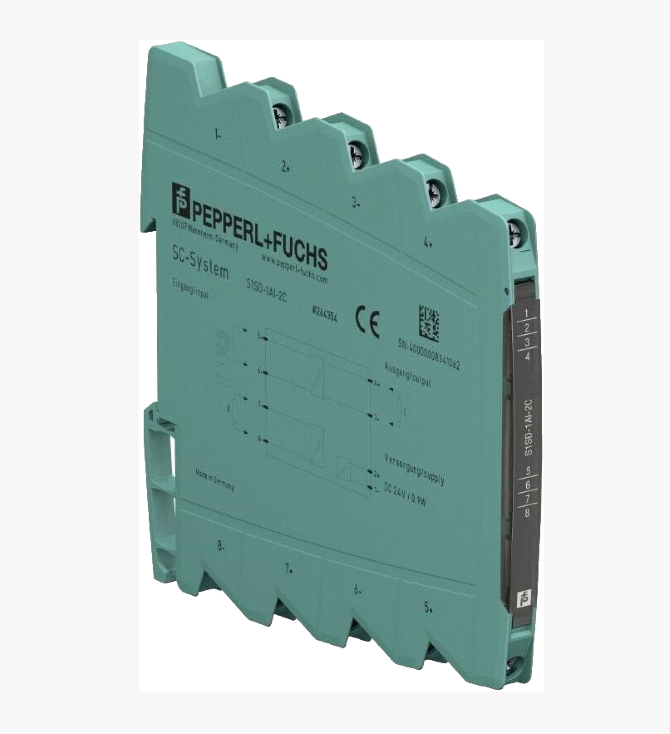

  • Pepperl + Fuchs S1SD-1AI-2C Signal Conditioner in Stock
    Pepperl + Fuchs S1SD-1AI-2C Signal Conditioner in Stock

    The S1SD-1AI-2C is a 1-channel transmitter power supply and signal splitter from Pepperl+Fuchs. It supplies power to a 2-wire transmitter, processes the 0/4 to 20 mA input signal, and provides two identical isolated 0/4 to 20 mA outputs. This compact device ensures reliable signal transmission and galvanic isolation between field and control circuits.

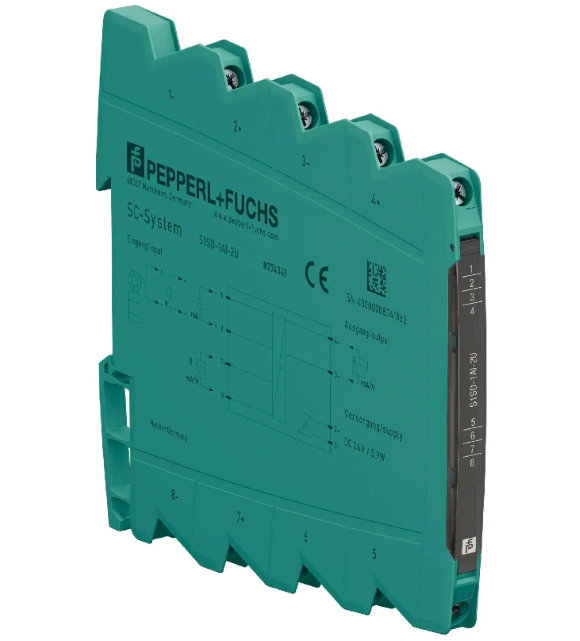

  • Pepperl + Fuchs S1SD-1AI-2U Isolating Amplifier Splitter Original New in Stock
