Pepperl+Fuchs 202093-0006 SLCS60-1800-R Safety Light Curtain

Product Specification

Pepperl+Fuchs 202093-0006 SLCS60-1800-R Safety Light Curtain

High-Performance Type 4 Safety Light Curtain with 1800 mm Protective Field

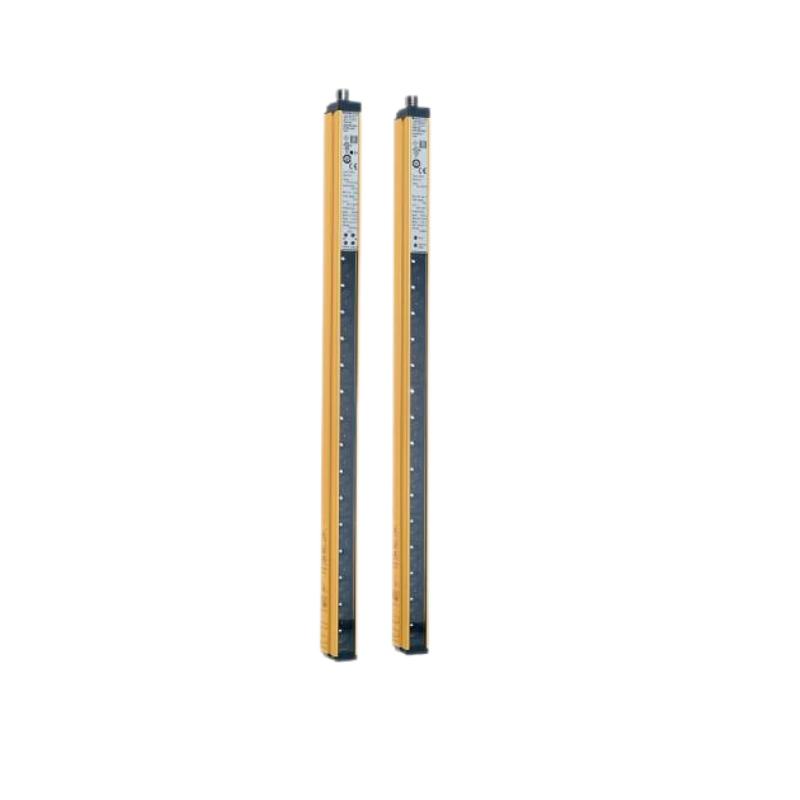

The safety light curtain consists of a transmitter and a receiver unit. The protected area is formed by infrared light beams transmitted from the transmitter unit

to the receiver unit. The spacing between the individual light beams determines the minimum obstruction size (60 mm) that can be reliably detected within

the entire protected area range.

Key Features & Benefits

• Type 4 Self-Monitoring: Meets the highest safety category (Type 4 per IEC/EN 61496-1) with continuous self-testing to ensure reliable operation and fail-safe performance

• High Safety Integrity: Certified to SIL 3 (IEC 61508) and PL e (ISO 13849-1) with a PFHd of 1.5 E-8, providing the highest level of risk reduction

• Extensive Protective Field: 1800 mm protection field height and sensing range up to 15 meters, accommodating a wide variety of machine guarding applications

• 60 mm Resolution: Provides reliable detection of objects and body parts with a 60 mm optical resolution, ensuring personnel safety

• Dual OSSD Safety Outputs: Two separate fail-safe semiconductor outputs for direct integration into safety circuits and control systems

• IP67 Environmental Protection: Robust housing with IP67 rating ensures reliable performance in harsh industrial environments with dust and moisture exposure

• Integrated Function Display: 7-segment diagnostic displays on both emitter and receiver simplify alignment, configuration, and troubleshooting

• Flexible Operating Modes: Supports selectable start/restart disable and transmission coding for multi-system installations

Technical Specifications

Optical & Field Specifications

Functional Safety Parameters

Electrical Specifications

Environmental & Mechanical Specifications

Approvals & Certifications

System Components & Accessories

The SLCS60-1800-R is part of a complete safety system. The following components are available for a full solution:

Applications

The SLCS60 safety light curtain is ideal for a wide range of personnel protection and machine guarding applications:

Ordering & Shipping Information
