The Siemens 6SE7038-6GL84-1JA1 is a PSU2 power supply module designed for the SIMOVERT MASTERDRIVES series, specifically for devices with Designs J through M – the high-power chassis typically corresponding to the 315kW to 400kW power range . This module serves as the "energy foundation" for the drive system, converting high-voltage AC/DC input into stable low-voltage DC to power control boards, IGBT firing circuits, and high-capacity cooling fans.
Item No :
6SE7038-6GL84-1JA1Order(MOQ) :
1Payment :
EXWProduct Origin :
GermanyShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
1.32kgSpecifications

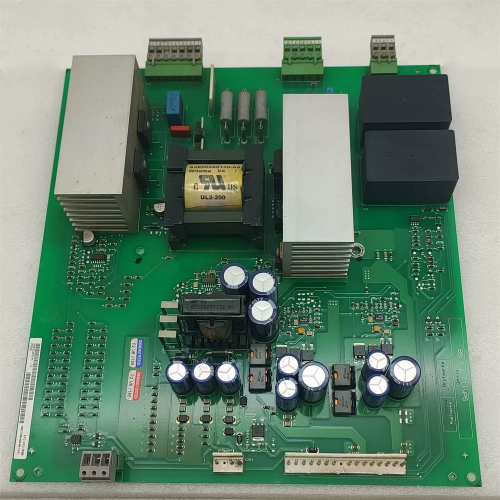

Siemens 6SE7038-6GL84-1JA1 SIMOVERT MASTERDRIVES PSU2 Power Supply Module
High-Performance Power Supply Module for J-M Design Masterdrives
High-Power PSU2 Module: Designed for the largest MASTERDRIVES chassis (Design J-M), providing the power foundation for drives in the 315kW-400kW class
Wide Input Voltage Range: Supports 3-phase AC 380-480V / 660-690V and DC 510-620V / 890-930V, accommodating diverse industrial power environments
Stable DC Output: Delivers regulated 24V DC at 20A for reliable operation of internal electronics and cooling systems
High Efficiency: Achieves >92% conversion efficiency, reducing energy loss and heat generation
Robust Protection: Integrated overvoltage, undervoltage lockout, overcurrent, overtemperature, and fan failure monitoring
Critical for Drive Operation: Directly powers the CUVC/CUMC control board, provides isolated power for IGBT gate drivers, and drives high-power cooling fans – failure means complete drive shutdown
Industrial-Grade Construction: Operating temperature range of 0°C to 60°C, suitable for demanding industrial environments
| Category | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6SE7038-6GL84-1JA1 |
| Product Type | PSU2 Power Supply Module |
| Product Series | SIMOVERT MASTERDRIVES |
| Compatibility | Designs J, K, L, M (315kW - 400kW class) |
| Parameter | Detail |
|---|---|
| Input Voltage (AC) | 3AC 380-460V / 660-690V, +10%/-15% |
| Input Voltage (DC) | DC 510-620V / 890-930V |
| Input Frequency | 47-63 Hz |
| Rated Power | 15kW (at 400V input) |
| Parameter | Detail |
|---|---|
| Output Voltage | 24V DC |
| Output Current | 20A |
| Efficiency | >92% at full load |
| Parameter | Detail |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5-95% non-condensing |
| Protection Rating | IP20 |
| Weight | Approx. 1.34 - 1.4 kg |
| Dimensions | Approx. 27 x 25 x 5 cm |
| Product Origin | Germany |
| Product Status | Spare part / Discontinued |
The 6SE7038-6GL84-1JA1 is deployed in heavy industry applications requiring large MASTERDRIVES drives:
| Industry | Application |
|---|---|
| Steel & Metals | Rolling mill main drives, heavy plate mills |
| Mining | Mine hoists, conveyor systems |
| Marine | Ship propulsion systems, thruster drives |
| Cement & Mining | Large kiln drives, crusher drives |
| Pulp & Paper | Heavy section drives, winders |
| Water/Wastewater | Large pump stations, high-capacity fan systems |
| Design | Typical Power Range | Compatibility |
|---|---|---|
| J | 315kW | ✓ Fully compatible |
| K | 355kW - 400kW | ✓ Fully compatible |
| L | 400kW+ | ✓ Fully compatible |
| M | High Power | ✓ Fully compatible |
Spare Part Status: This product is listed as discontinued/obsolete by Siemens and should be considered a spare part for maintaining existing installations .
Installation Precaution: When replacing this module, ensure the main DC bus is fully discharged before removal. Always check the T Board and IGBT modules before powering up a replacement PSU2 .
Key Parameter: This module is specifically for Designs J through M. Do not use it with smaller Design C-F chassis.
