The Siemens 6ES7313-1AD03-0AB0 is a compact CPU module for the SIMATIC S7-300 programmable logic controller (PLC) system. Its core function is to serve as the central processing unit for automation tasks, executing user programs, managing I/O data, and handling communication within small to medium-scale industrial control applications . This CPU features an integrated power supply, designed for space-saving installation in control cabinets.
Item No :
6ES7313-1AD03-0AB0Order(MOQ) :
1Payment :
EXWProduct Origin :
GermanyShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
0.526kgSpecifications
| Origin | Germany |
| Net Weight (kg) | 0.526kg |
| Warranty |
1 year |
Key Parameters
| Item | Specifications / Features |
|---|---|
| Product Type | CPU 313 Compact Module |
| Integrated Power Supply | 24 V DC; permissible range 20.4 to 28.8 V |
| Work Memory | 12 KB integrated (approx. 4K instructions) |
| Load Memory | 20 KB integrated RAM; expandable via FEPROM (MMC) up to 4 MB |
| System Platform | Siemens SIMATIC S7-300 series |
| Communication Interface | 1 x MPI (Multi-Point Interface); max. 32 nodes |
| Processing Times | Bit: 0.6 µs (typ.); Word: 2 µs (typ.) |
| Bit Memory | 256 bytes (adjustable retentivity) |
| S7 Timers/Counters | 128 timers / 64 counters |
| Max. Number of I/O Modules | 8 modules in a central rack |
| Dimensions (W x H x D) | 14.9 x 13.1 x 9.00 cm |
| Weight | 0.526 kg |
| Product Lifecycle Status | Discontinued (End of Product Lifecycle) |
Compact Design with Integrated Power Supply: The module's standout feature is its compact form factor with a built-in 24V DC power supply . This eliminates the need for a separate external power supply module, saving valuable space and simplifying installation for small- to medium-scale automation tasks .
Balanced Performance for Basic Applications: With a bit processing time of 0.6 µs and support for the MPI protocol, the CPU provides a solid balance of performance and connectivity for basic control applications . The integral MPI interface enables straightforward programming, diagnostics, and networking (up to 32 nodes) with other SIMATIC devices .
Modular and Scalable S7-300 Architecture: Designed for the modular S7-300 family, the CPU 313 offers reliable control in a variety of industrial environments . It supports connection to various I/O modules (up to 8 in a single rack) and expansion modules, facilitating system scalability and customization . Load memory can be expanded using a standard Micro Memory Card (MMC) up to 4 MB .
The 6ES7313-1AD03-0AB0 is well-suited as the core controller for a wide range of industrial automation systems, especially where space is at a premium, including :
Machine Building: Control of packaging machines, textile machinery, and simple handling systems.
Factory Automation: Conveyor systems, sorting equipment, and general production line control.
Process Automation: Monitoring and control in smaller process stations for water treatment or basic process interfacing.
This product has been discontinued by Siemens and is no longer in active production . Availability is primarily through surplus, pre-owned, or third-party suppliers . For new system designs, it is recommended to consider the successor model or consult Siemens for current migration options.
Hot Selling Modules
Scope of supply
The Siemens 6ES7953-8LJ20-0AA0 is a 512 KB tocSIMATIC Micro Memory Card (MMC) for the S7-300 / C7 / ET 200 systems, serving as essential non-volatile load memory for the CPU and certain function modules.
The Siemens 6ES7953-8LL20-0AA0 is a 2 MB SIMATIC Micro Memory Card (MMC) for the S7-300 / C7 / ET 200 systems, serving as essential non-volatile load memory for the CPU and certain function modules.
The Siemens 6ES7178-4BH00-0AE0 is an Interface Module IM178-4 for the SIMATIC S7-300 PLC series, designed for connecting drives to the SIMATIC system via PROFIBUS-DP.
The Siemens 6ES7317-2FK14-0AB0 is a SIMATIC S7-300 CPU 317F-2 PN/DP central processing unit, combining standard control and fail-safe (F) functionality in a single device. The CPU is certified up to SIL 3 (IEC 61508) and PL e (ISO 13849-1), making it suitable for safety-related applications in manufacturing and process industries.
The Siemens 6ES7318-3FL01-0AB0 is a SIMATIC S7-300 CPU 319F-3 PN/DP central processing unit, the most powerful CPU in the S7-300 family. It combines standard control and fail-safe (F) functionality in a single device, certified up to SIL 3 (IEC 61508) and PL e (ISO 13849-1).
The Siemens 6ES7317-2EK14-0AB0 is a SIMATIC S7-300 CPU 317-2 PN/DP central processing unit, a high-performance controller for medium to large-scale automation applications. Equipped with 1 MB of work memory and featuring both PROFIBUS DP/MPI and PROFINET (with a 2-port switch) interfaces, it offers fast processing speeds with bit operation times as low as 25 ns.
The Siemens 6ES7211-0AA23-0XB0 is a SIMATIC S7-200 CPU 221 compact PLC with DC power supply, featuring 6 digital inputs and 4 transistor outputs. It offers 4 KB program memory and 2 KB data memory, with 4 built-in 30 kHz high-speed counters and 2 high-speed pulse outputs (20 kHz) for basic motion control tasks. This cost-effective unit is ideal for small automation applications requiring reliable logic control and counting functions.

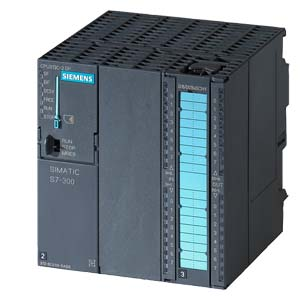

The Siemens 6ES7313-6CF03-0AB0, a SIMATIC S7-300 CPU 313C-2 DP compact controller, integrates a CPU, power supply, and I/O in a single unit . It features 16 digital inputs, 16 digital outputs, and a PROFIBUS DP master/slave interface for distributed I/O connectivity . With 64 KB working memory, 3 high-speed counters (30 kHz) for precise measurement tasks, and an integrated 24V DC power supply, it is ideal for mid-range applications requiring fast response and a compact footprint.
