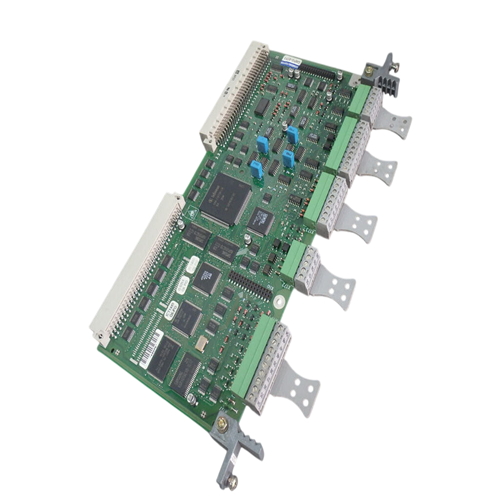

Siemens C98043-A7001-L1 CUD1 Control Board

Key Features

• Dual Microprocessor Architecture – Two microprocessors handle all armature and field control functions simultaneously

• Complete Drive Control – Manages armature and field closed-loop control, thyristor firing pulse generation, and parameter storage

• Comprehensive I/O – 2 analog inputs (differential, configurable 0 to ±10 V, 0 to ±20 mA, 4 to 20 mA), 2 analog outputs, 4 binary inputs, 2 binary outputs

• Pulse Encoder Interface – Supports 5V or 24V encoders with 2 tracks and zero mark, maximum frequency 300 kHz

• Serial Communication – One serial interface (RS485 two-wire or four-wire), max 187.5 kbaud

• Motor Temperature Monitoring – Compatible with PTC or KTY84 sensors

• Reference Voltage Output – P10/N10 reference voltage, 10 mA load rating

Technical Parameters

Core Advantages

1. Complete Drive Control Intelligence

The CUD1 board is the central control unit for the 6RA70 DC drive, integrating all control functions into a single board. Its dual microprocessor architecture handles armature and field control in parallel, ensuring precise regulation of DC motor speed, current, and torque. The board generates all thyristor firing pulses directly, providing accurate power control.

2. Essential for Legacy 6RA70 System Maintenance

The SIMOREG 6RA70 platform has been widely deployed in industrial DC drive applications for decades. When a CUD1 board fails, the entire drive becomes inoperable. The C98043-A7001-L1 provides a direct board-level replacement solution, allowing maintenance teams to restore drive functionality without replacing the entire converter unit.

3. Comprehensive Signal Processing Capabilities

The board includes extensive I/O capabilities: 2 analog inputs with configurable resolution up to ±14 bits, 2 analog outputs, multiple binary inputs/outputs, and a high-frequency pulse encoder interface. This allows the CUD1 to interface with a wide range of sensors, encoders, and control signals in demanding drive applications.

4. Parameter Continuity and System Preservation

Replacing a failed CUD1 with the identical board model preserves the machine's existing parameter structure, connection layout, and drive behavior. This continuity is critical for maintaining validated drive configurations and avoiding costly recommissioning.

5. Critical for Production Uptime

In industries where 6RA70 drives remain in service—including metals processing, paper production, and heavy manufacturing—the availability of a spare CUD1 board is essential for minimizing downtime. This is particularly important as the 6RA70 platform has been discontinued, making remaining stock increasingly valuable.

Applications

The Siemens C98043-A7001-L1 CUD1 board is deployed across a wide range of industrial DC drive applications:

Primary Functions

• Armature Control – Closed-loop armature current and speed regulation

• Field Control – Field current regulation for DC motor excitation

• Thyristor Firing – Generation of gate pulses for power converters

• Process Interface – Communication with plant control systems via RS485

• Encoder Processing – Speed feedback processing for closed-loop control

Recommended Models & Related Products

Critical Warning: The L1 and L2 boards are not interchangeable. L2 hardware requires software version 3.xx and is designed for Production State A3 drives. Installing L2 with L1-compatible software in an A1/A2 drive will cause the drive to fail initialisation.

What's Included

• 1 × Siemens C98043-A7001-L1 CUD1 Control Board (New Sealed)

Note: Terminal assembly is not included with the L1 board. The L2 variant includes terminals. Drive unit and other components are sold separately.

Why Buy From Us?

• New Sealed – Factory packaging, never opened

• In Stock – Ready to ship immediately

• Fast Shipping – Expedited shipping options available

• Warranty Included – Purchase with confidence

• Technical Support – Drive compatibility assistance available

Frequently Asked Questions (FAQ)

Q1: What is the Siemens C98043-A7001-L1?

It is the CUD1 (Control Unit Digital 1) control board for the SIMOREG DC-MASTER 6RA70 DC drive series. It is the central control module that manages armature and field control, communication, and parameter storage for the drive.

Q2: What is the difference between C98043-A7001-L1 and L2?

The L1 is the first design generation for Production States A1 and A2, compatible with software versions 1.xx and 2.xx only. The L2 is for Production State A3 drives and requires software version 3.xx and above. The L1 board is a bare board; the L2 variant includes terminals.

Q3: Can I replace an L1 board with an L2 board?

No. The L2 board is not compatible with A1/A2 drives that use the L1. Installing L2 hardware with L1-compatible software will cause the drive to fail initialisation. Always verify the L-series matches your drive's production state.

Q4: What is the related market order number for this board?

The related market order number is 6RY1703-0AA00.

Q5: What software versions does the L1 board support?

The C98043-A7001-L1 supports software versions 1.xx and 2.xx only.

Q6: Is this a genuine Siemens product?

Yes. This is a new sealed genuine Siemens spare part with article number C98043-A7001-L1.

Q7: What are the analog input specifications?

The board has 2 analog inputs via differential amplifiers, with resolution configurable between 10 and ±14 bits. Input ranges include 0 to ±10 V, 0 to ±20 mA, and 4 to 20 mA.

Q8: What encoder types are supported?

The pulse encoder interface supports 5V or 24V encoders with 2 tracks and zero mark, with a maximum frequency of 300 kHz.

Q9: What is the country of origin?

Germany (DE).

Q10: Is this product discontinued?

Yes. The CUD1 board was discontinued by Siemens effective 08/01/2007. This unit is from remaining new stock.

Q11: What should I verify before ordering?

Always verify the exact part number (C98043-A7001-L1 vs. L2), the drive production state (A1/A2 vs. A3), the required software version, and the existing parameter backup before ordering. Consult Siemens documentation or contact our technical support for assistance.

Q12: What happens if F063 or F064 faults appear at power-up?

Faults F063 and F064 at power-up indicate an internal memory fault on the CUD1 board. If the fault persists after a power cycle, the CUD1 has failed and requires replacement.
