PRODUCT INFORMATION

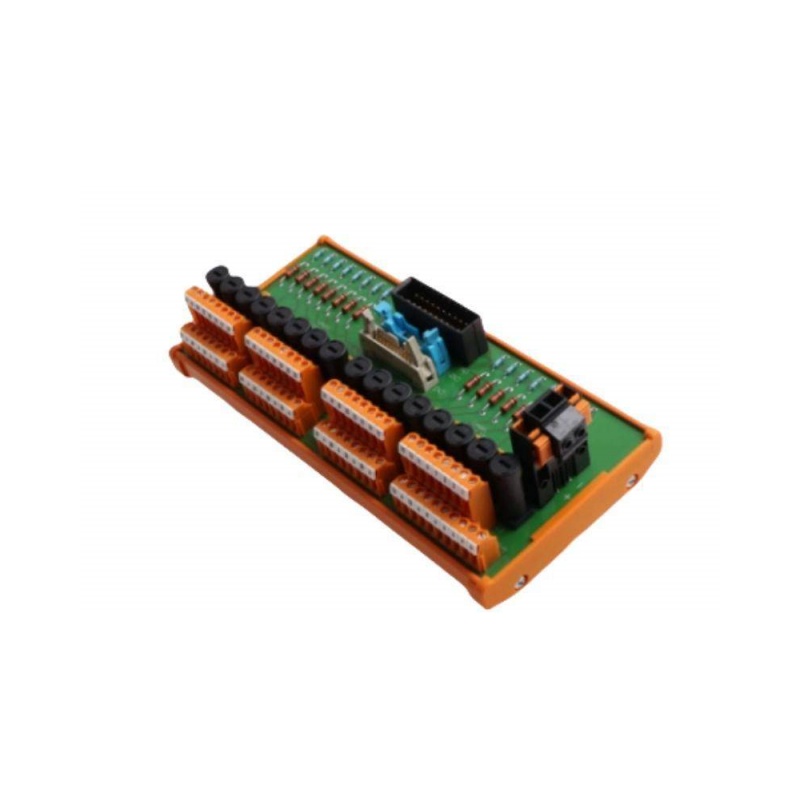

FS-TERM-0001 Bus Terminator
Brand Name: Honeywell
Product Name: FS-TERM-0001
Condition:100%New And Original
Lead Time: 3-5 Days
Warranty: 1Year
Core Features & Advantages
-
Ensures Signal Integrity and System Stability: The module's standout feature is its ability to provide critical impedance matching on the bus . It actively prevents signal reflections and crosstalk that can degrade data transmission quality, ensuring that field sensor signals reach the safety processor without distortion . This is essential for maintaining the integrity of Safety Instrumented Systems (SIS) .
-
Designed for High-Availability Safety Systems: As a component engineered for Honeywell's Safety Manager and FSC platforms, it is built for mission-critical applications where reliability is paramount . It is specifically intended for use in non-redundant I/O architectures to correctly terminate the bus .
-
Robust and Certified for Industrial Use: The module is built with industrial-grade components and carries key certifications such as CE, TÜV, UL, CSA, and FM, confirming its suitability for demanding industrial environments .
Typical Applications
The FS-TERM-0001 is a critical component in high-availability safety systems, primarily used in:
-
Safety Instrumented Systems (SIS): Eliminating signal reflections on the communication bus in safety loops for SIL-rated applications .
-
Process Industries: Ensuring reliable communication in oil and gas refineries, petrochemical plants, and power generation facilities .
WHY CHOOSE US
1. All our products are new and original, and good quality.
2. Our prices are very competitive.
3. We have large quantity in stock, so we could help the customers to get the components which are difficult to get.
4. All inquiries will be valued and will replied in 24 hours.
5. Fast shipping, and good after-sale service.
We will ship the items within 3-5 working days after the payment is received.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the FS-TERM-0001?
A: Its core function is to provide electrical termination for the I/O communication bus in Honeywell Safety Manager and FSC systems. It does this by providing precise impedance matching to absorb signal reflections, thereby preventing data corruption and ensuring signal integrity across the bus.
Q2: Is the FS-TERM-0001 used for redundant or non-redundant I/O configurations?
A: This specific module is designed for non-redundant I/O applications. It terminates all used I/O bus signals for a standard (non-redundant) configuration. For redundant I/O systems, a different termination module, typically the FC-TERM-0002, is required.
Q3: Where is the FS-TERM-0001 installed?
A: It is installed directly onto the controller backplane (specifically, the CPB-0001), at the connectors labeled "Term IO bus1" or "Term IO bus2".
Q4: What are the key electrical specifications?
A: It contains 27 termination resistors of 1 kΩ each. The module is powered by the 5V DC supply from the Control Processor and has a typical current consumption of 50 mA.
Q5: Does the FS-TERM-0001 require external power?
A: No, it is a passive device. It does not require an external power source and draws minimal current from the backplane's 5V DC supply.
Q6: Does the system automatically detect the FS-TERM-0001?
A: Yes. The control software for the Safety Manager system checks for the presence of the bus terminator and requires it to be installed for all used I/O buses.
