The Honeywell FS-IOCHAS-0001S is a robust, non-redundant I/O module chassis designed for industrial control systems, providing a reliable mounting and backplane solution for Honeywell's Series C I/O modules . This chassis serves as the backbone for data acquisition and control functionality in non-critical process control applications, offering a cost-effective alternative to redundant systems without compromising reliability.
The chassis is fully compatible with Honeywell's Experion PKS C300 distributed control system (DCS) platform and Safety Manager systems . As a passive backplane chassis, it provides mechanical support, electrical distribution of the 24VDC system power, and the ControlNet communication bus to all connected I/O modules.
Item No :
FS-IOCHAS-0001SOrder(MOQ) :
1Payment :
EXWProduct Origin :
USAShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
8.5kgPRODUCT INFORMATION

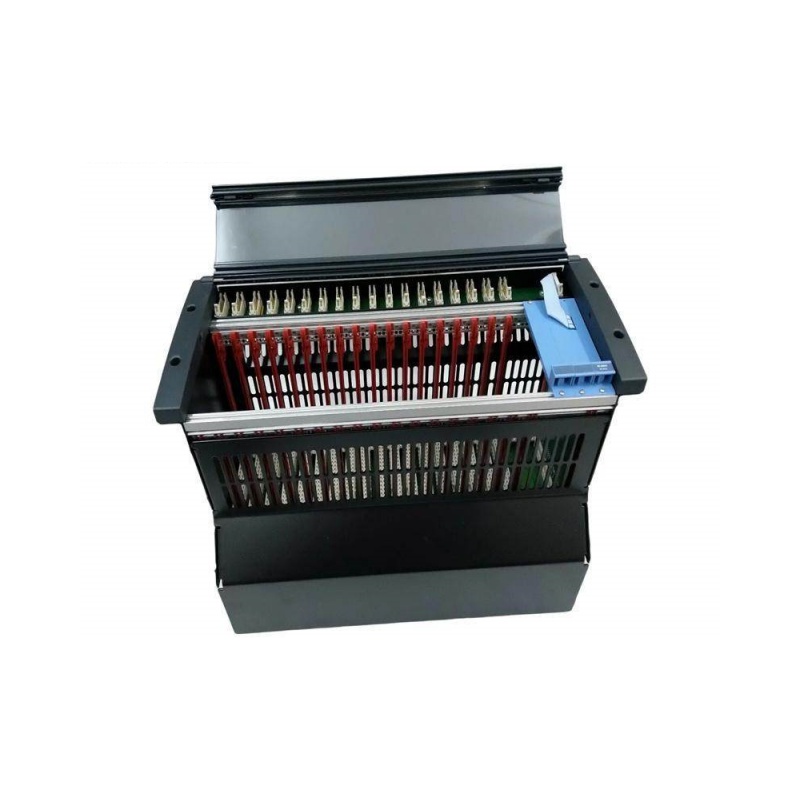

Honeywell FS-IOCHAS-0001S Non-Redundant I/O Modules Chassis
Industrial-Grade 19-Inch I/O Chassis for Experion PKS and Safety Manager Systems
Brand Name: Honeywell
Product Name: FS-IOCHAS-0001S
Condition: 100% New and Original
Lead Time: 3-5 Days
Warranty: 1Year
WHY CHOOSE US
1. All our products are new and original, and good quality.
2. Our prices are very competitive.
3. We have large quantity in stock, so we could help the customers to get the components which are difficult to get.
4. All inquiries will be valued and will replied in 24 hours.
5. Fast shipping, and good after-sale service.
We will ship the items within 3-5 working days after the payment is received.
Cost-Effective Non-Redundant Design: Provides a reliable I/O mounting solution without the added complexity and cost associated with redundant systems, making it ideal for standard process control applications
High-Density Module Capacity: Accommodates up to 18 I/O modules in a standard 19-inch form factor, maximizing rack space efficiency
Universal I/O Compatibility: Supports all C-Series I/O modules including AI/AO/DI/DO cards (AI8, AO8, DI16, DO16, etc.), allowing flexible system configuration
Hot-Swap Module Support: All I/O modules can be replaced under power without system shutdown, minimizing maintenance downtime
Robust Industrial Design: Constructed with high-grade steel and conformal coating, offering protection against corrosion, EMI interference, and harsh industrial environments
Comprehensive Safety Certifications: Meets international standards with CE, UL, CSA, TÜV, and FM certifications, ensuring reliable operation in industrial settings
Standardized 19-Inch Rack Mount: Fits standard equipment racks with a 3HE (133.35mm) height for the first chassis, enabling easy integration into existing installations
Scalable System Architecture: Supports multiple chassis expansion, allowing system growth as process requirements evolve
| Category | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | FS-IOCHAS-0001S |
| Alternate Models | FC-IOCHAS-0001S, IOCHAS-0001S |
| Product Type | Non-Redundant I/O Module Chassis |
| System Compatibility | Honeywell Experion PKS C300, Safety Manager |
| Module Slots | 18 I/O module slots (slots 1-18) |
| Total Slots | 21 slots total (slot 19-20 reserved, slot 21 for power/management module) |
| Mounting Type | Standard 19-inch Rack Mount (482.6mm width) |
| First Chassis Height | 3 HE (133.4mm / 5.25 inches) |
| Additional Chassis Height | 4 HE each |
| Depth | 280mm (11 inches) |
| Weight | Approx. 8.5 kg |
| Power Consumption | 35 mA @ 5V DC (for slot 21 IO-0001 module) |
| System Power Supply | 24 VDC |
| Backplane Type | Passive, gold-plated |
| Galvanic Isolation | 1000 VAC between slots |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Protection Rating | IP20 (chassis level), IP67 option with modules |
| Housing Material | High-grade steel with corrosion-resistant coating |
| Certifications | CE, UL, CSA, TÜV, FM |
| Country of Origin | USA |
The FS-IOCHAS-0001S chassis serves as the central mounting and connectivity hub within the Honeywell control system architecture:
24VDC System Power → FS-IOCHAS-0001S Chassis → C-Series I/O Modules (AI/AO/DI/DO) → C300 Controller → Experion PKS
↓
I/O Link (ControlNet bus)
Key Structural Components :
I/O Chassis: 19-inch mechanical housing that accommodates up to 18 I/O modules
IO Backplane (IOBUS-HBS): Horizontal I/O bus backplane providing 18 flat cable connectors at the top
I/O Connectors (IOB-0001S): Provides 18 I/O connectors located in the middle section
Cable Management: Includes cable entry space, cable clamps, and half-turn locking screws for secure installation
The FS-IOCHAS-0001S integrates seamlessly with the following Honeywell components :
| Compatible Component | Description |
|---|---|
| C300 Controller | Experion PKS process controller |
| C-Series I/O Modules | AI8 (Analog Input), AO8 (Analog Output), DI16 (Digital Input), DO16 (Digital Output), etc. |
| FTA Terminal Boards | Field Termination Assemblies for field instrument wiring |
| System Power Supply | 24VDC rack power supply modules |
Important Note: The chassis is designed specifically for non-redundant configurations. If your application requires redundancy, please consider Honeywell's redundant chassis options. The FS-IOCHAS-0001S is not interchangeable with redundant chassis models .
The FS-IOCHAS-0001S chassis is ideal for a wide range of industrial automation and process control applications:
| Industry | Application |
|---|---|
| Oil & Gas | Pipeline monitoring, refinery process control, compressor stations |
| Chemical Processing | Chemical reactor control, batch process automation |
| Power Generation | Turbine control, auxiliary system monitoring |
| Water & Wastewater | Treatment plant control, pump station automation |
| Pharmaceutical | Batch processing, environmental monitoring |
| Manufacturing | Factory automation, quality control systems |
The chassis fits standard 19-inch equipment racks
First chassis height: 3 HE (133.4mm); additional chassis each require 4 HE
Allow adequate space for airflow around the unit
Install blank cover plates in unused slots to maintain proper airflow and EMI shielding
