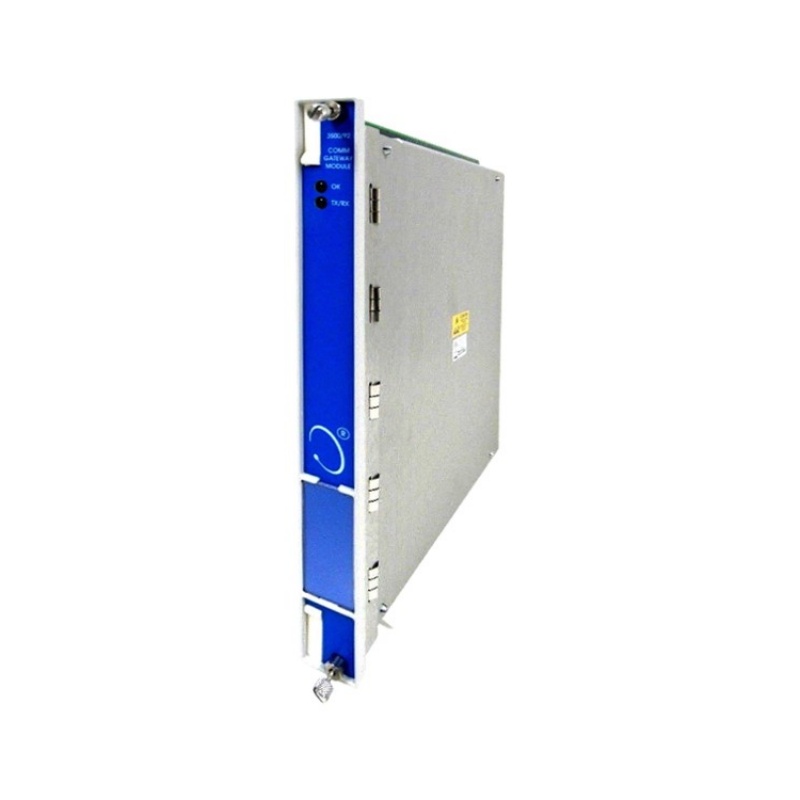

Bently Nevada 3500/92-02-01-01 Communication Gateway

Product Specification

3500/92-02-01-01 Communication Gateway

Brand Name:Bently Nevada

Product Name:3500/92-02-01-01

Warranty:1Year

Key Parameters and Features

Core Features & Advantages

• Dual Communication Channels: The module provides simultaneous Ethernet and serial connectivity for redundant data paths, supporting up to 8 concurrent Ethernet client connections and 2 serial connections. This allows multiple control systems and HMI workstations to access data simultaneously .

• Protocol Flexibility: The gateway supports multiple industrial protocols including Modbus TCP/IP, Modbus RTU, and DNP3, eliminating the need for custom gateways and enabling seamless integration with leading automation platforms such as Honeywell Experion, Emerson DeltaV, Siemens PCS 7, and Rockwell PlantPAx .

• Real-Time Data Access: The module continuously streams vibration, temperature, speed, and position measurements from all 3500 monitor modules, with configurable data refresh rates from 1 to 60 seconds. It can transmit up to 16,000 variables per second over Ethernet, sufficient for monitoring 20+ full-channel 3500 racks in real-time .

• Alarm & Event Notification: Critical alerts are transmitted instantly to control room operators, enabling predictive maintenance strategies that can reduce unplanned outages .

• Hot-Swappable Design: The module is field-replaceable without system shutdown, minimizing downtime during maintenance .

• Secure Communication: Built-in security features protect against unauthorized access .

Typical Applications

The 3500/92-02-01-01 is widely used across heavy industries for machinery monitoring data integration :

• Power Generation: Monitoring turbine-generator sets in combined-cycle plants, enabling predictive maintenance that reduces unplanned outages

• Oil & Gas Processing: Integrating compressor and pump monitoring data into centralized SCADA systems for offshore platforms and refinery operations

• Petrochemical Manufacturing: Connecting critical rotating equipment to DCS networks for real-time process optimization

• Steel & Metal Production: Linking rolling mill drives and blower systems to plant automation networks

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 3500/92-02-01-01?
A: It is a Communication Gateway module for the 3500 Machinery Protection System. Its role is to serve as the data bridge between the 3500 rack and external control systems (DCS, PLC, SCADA), collecting real-time machinery monitoring data and transmitting it via Ethernet and serial protocols .

Q2: What communication protocols does the module support?
A: The module supports Modbus TCP/IP, Modbus RTU, and Bently Nevada Proprietary Protocol (for System 1 integration) . Some sources also mention DNP3 support .

Q3: How many client connections can the module support simultaneously?
A: The module supports up to 8 concurrent Ethernet client connections and 2 serial connections, allowing multiple control systems and HMI workstations to access data simultaneously .

Q4: Is the 3500/92-02-01-01 hot-swappable?
A: Yes. The module can be replaced without shutting down the 3500 system, minimizing production losses and downtime during maintenance .

Q5: What are the key differences between the 3500/92 and the older 3500/22?
A: The 3500/92 is the modern communication gateway that replaces older serial interfaces like the 3500/22 by providing Ethernet connectivity. It enables integration with plant DCS, historians, and asset management platforms without compromising the integrity of the safety-critical protection logic .

Q6: Why are the TX/RX LEDs not flashing on my 3500/92?
A: Completely dark TX/RX LEDs typically indicate a physical layer fault rather than an application-layer addressing mismatch. According to field experience, over 80% of silent gateway issues stem from simple wiring faults or wrong baud rates. Check cable continuity, verify RS-485 termination resistors (120-ohm at both ends), and confirm that the host system is actively transmitting requests .

Q7: What are common Modbus TCP configuration issues?
A: In Modbus TCP applications, carefully check the Modbus mode, starting address, and data length. Error codes such as Siemens MB_Client status 809B often point directly to length or addressing mismatches rather than generic network failures. Verify that the IP address, port (default 502), and protocol parameters match exactly between the 3500/92 and the PLC/DCS side .

Q8: What is the maximum data throughput capacity?
A: The gateway can transmit up to 16,000 variables per second over Ethernet, sufficient for monitoring 20+ full-channel 3500 racks in real-time .

Q9: What rack slot does the 3500/92 require?
A: The module must occupy slot 1 (primary) or slot 2 (redundant) in the 3500 chassis. It cannot be installed in I/O slots (3–14) .

Q10: Can multiple 3500/92 modules be installed in one rack?
A: Yes. Multiple gateways can be installed in one rack when redundancy is required or when supporting different protocols simultaneously. However, only one active comms module is allowed per rack in some configurations .

Recommended Models & Related Products

The 3500/92-02-01-01 is part of the Bently Nevada 3500 series. Below are key related models and compatible components:

Choosing the Right Model

• For standard Ethernet and serial communication needs: The 3500/92-02-01-01 with the 133323-01 serial card provides Modbus TCP/IP and Modbus RTU connectivity.

• For RS-232 or RS-422 serial requirements: Select the 125736-01 rear I/O module instead of the RS-485 version .

• For combined Ethernet and serial: The 136188-01 (Ethernet/RS-232) or 136188-02 (Ethernet/RS-485) rear modules offer both interface types .

• For redundant configurations: Install dual 3500/92 modules in slots 1 and 2 for hot-standby operation .
