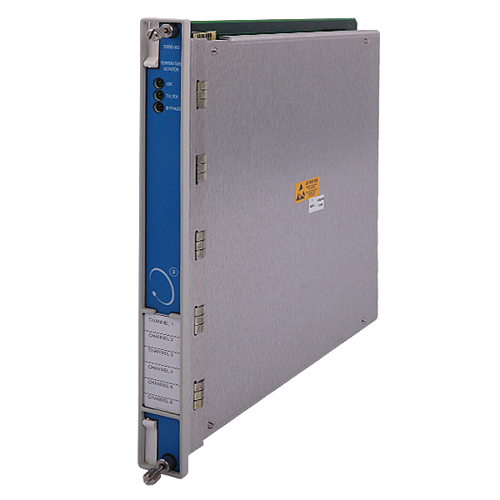

The Bently Nevada 3500/60-01-00 is a 6-channel temperature monitoring module for the 3500 series machinery protection system. It accepts both Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs, comparing them against user-programmable alarm setpoints to provide reliable protection for turbines, compressors, and other critical rotating machinery.
Item No :
3500/60-01-00Order(MOQ) :
1 PiecePayment :
EXW/CIFProduct Origin :
USAShipping Port :
WuhanLead Time :
3-5daysWeight :
3kg| Feature | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Family | 3500 Series Machinery Protection System |
| Model / Order Code | 3500/60-01-00 |
| Module Type | 6-Channel Temperature Monitor |
| Input Types | RTD and Thermocouple (configurable per channel or mixed) |
| I/O Version | 01 = RTD/TC non-isolated with internal terminations |
| Power Consumption | 7 W (typical) |
| Operating Temp. | -30°C to +65°C |
| Input Impedance | >10 MΩ per lead |
| Alarm Capability | Two programmable setpoints: Alert and Danger |
| Redundancy | Supports Triple Modular Redundant (TMR) configuration |
| Key Feature | No recorder outputs (use 3500/61 if needed) |
| Status | Active (legacy product but widely available) |
| Category | Model | Description |
|---|---|---|
| With Recorder Outputs | 3500/61-01-00 | Same 6-channel RTD/TC monitor, but provides recorder outputs for each channel |
| 16-Channel Module | 3500/65-01-00 | 16-channel temperature monitor for higher channel density applications |
| Isolated TC Version | 3500/60-03-00 | TC isolated version with 250 Vdc channel-to-channel isolation |
| I/O Module (Spare) | 133819-01 | Replacement I/O module for 3500/60 (RTD/TC non-isolated, internal terminations) |
| I/O Module (Spare) | 163179-01 | Alternative part number for 3500/60 I/O module |
| 3500/40M | 133450-01 | 3500/77M |
| 140734-01 | 3500/50M | 3500/63 |
| 3500/40M | 3500/53 | 3500/92 |
| 125680-01 | 133388-01 | 136180-01 |
| 126615-01 | 3500/53 | 3500/92 |
| 135489-04 | 133396-01 | 125736-01 |
| 149716-01 | 3500/53M | 133323-01 |
| 3500/42M | 3500/60 | 136188-01 |
| 140734-02 | 3500/61 | 136188-02 |
| 3500/42M | 133811-01 | 3500/93 |
| 128229-01 | 3500/60 | 135785-01 |
| 128240-01 | 133819-01 | 3500/93 |
| 126632-01 | 3500/60 | 135785-02 |
| 530843 | 133827-10 | 3500/93 |
| 143489-01 | 3500/60 | 135799-01 |
| 3500/42M | 133835-01 | 3500/93 |
| 135489-01 | 3500/60 | 135799-02 |
| 135489-02 | 133843-01 | 3500/93 |
Q1: What is the difference between the 3500/60 and 3500/61?
Both modules provide identical 6-channel temperature monitoring functionality. The only difference is that the 3500/61 includes recorder outputs (e.g., 4-20mA) for each channel, while the 3500/60 does not .
Q2: What types of sensors can this module accept?
The 3500/60 accepts both RTD (e.g., 100Ω platinum 3-wire/4-wire) and Thermocouple (types E, J, K, T, etc.) inputs. Using the configuration software, each channel can be individually programmed for RTD, TC, or a mixed configuration .
Q3: What does the "-01-00" suffix in the model number mean?
The "01" indicates the specific I/O module type—RTD/TC non-isolated with internal terminations. Other options include "-03" for TC isolated versions with internal terminations .
Q4: What is a TMR configuration and why is it used?
Triple Modular Redundancy (TMR) involves installing three temperature monitors adjacent to each other. The system uses voting logic to compare outputs, eliminating single-point failures and ensuring accurate operation—critical for high-reliability applications .
Q5: Can I replace a 3500/60 module while the system is running?
Yes, the 3500/60 module supports hot-swap (online insertion and removal), allowing for maintenance or replacement without shutting down the monitored machinery.
The Bently Nevada 330105-02-12-05-02-00 is an 8 mm reverse-mount proximity probe from the 3300 XL series, engineered for non-contact vibration and position monitoring in space-constrained machinery.
The Bently Nevada 330130-085-00-00 is an 8.5-meter standard extension cable for the 3300 XL 8 mm Proximity Transducer System. It connects a 3300 XL proximity probe to its Proximitor® sensor, transmitting eddy-current displacement signals for vibration, axial position, and Keyphasor measurements on critical rotating machinery.
The Bently Nevada 21000-00-00-15-030-04-00 is a Proximity Probe Housing Assembly from the 21000 series, designed to provide a secure, environmentally sealed mounting interface for reverse-mount proximity probes on critical rotating machinery.
The Bently Nevada 330780-50-00 is a 5.0-meter Proximitor® Sensor for the 3300 XL 11 mm Proximity Transducer System. It receives signals from a 3300 XL 11 mm probe and its extension cable, conditioning them into a linear voltage output proportional to shaft displacement for radial vibration, axial thrust position, and Keyphasor measurement.
The Bently Nevada 21747-040-00 is a 4-meter Proximitor probe extension cable designed for the 3300 and 7200 Series Proximity Transducer Systems. It connects a proximity probe to its Proximitor sensor, transmitting high-frequency eddy-current displacement signals for vibration and shaft position monitoring on critical rotating machinery.
The Bently Nevada 330710-00-060-10-02-00 is a 3300 XL 11 mm Proximity Probe designed for non-contact vibration and position measurement on large, fluid-film bearing machinery. Its 11 mm tip provides a longer linear range compared to the standard 8 mm system, making it ideal for applications requiring greater measurement span, such as axial thrust position, differential expansion, and radial vibration on steam turbines, centrifugal compressors, and large pumps.
The Bently Nevada 330103-00-11-50-02-00 is a 3300 XL 8 mm proximity probe with a metric M10×1 thread and a 5.0-meter integral cable terminated with a miniature coaxial ClickLoc™ connector. This extended-reach configuration features a 110 mm overall case length and connects directly to a Proximitor® sensor without requiring an extension cable for short-run installations.
The Bently Nevada 990-10-XX-01-00 (MOD 165353-01) is a two-wire, loop-powered Vibration Transmitter designed for OEMs of centrifugal air compressors, small pumps, motors, and fans. It accepts input from a 3300 NSv proximity probe and its matching extension cable, conditioning the signal into a 4–20 mA output proportional to peak-to-peak vibration amplitude.
